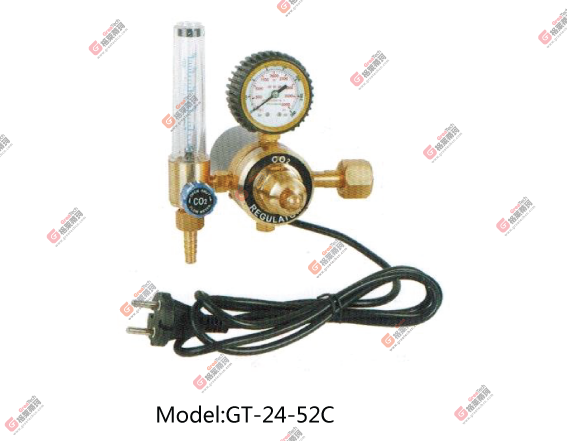

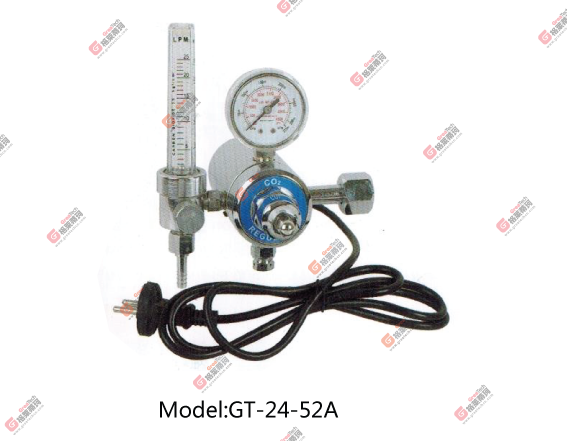

◆52 Electrically heated regulator flowmeter for CO2/Model:GT-24-52
It is applicable to industrial manufacturing, laboratory and gas-shielded welding.The regulator is of single-stage structure ,the electrical heating structure ensure the gas would not be frozen and there are three input voltage specifications of ac 36v,110v and 220v available; the main body is forged and fashioned from high-quality brass, chromate-faced or in nature color ;the upper cover structure is made from Q235,Zinc alloy and copper, the air inlet tubes are installed with sintered bronze filters;2” pressure gauge and flow tube ,manufactured from impact-strength composite materials ,are safe, durable and reliable.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-24-52 | CO2 | 160 bar | 25L/min | W21.8-14 | 9/16-18UNF | |
GT-24-52A | CO2 | 160 bar | 25L/min | W21.8-14 | 9/16-18UNF | |
GT-24-52B | CO2 | 160 bar | 25L/min | W21.8-14 | 9/16-18UNF | |
GT-24-52C | CO2 | 160 bar | 25L/min | W21.8-14 | 9/16-18UNF |
