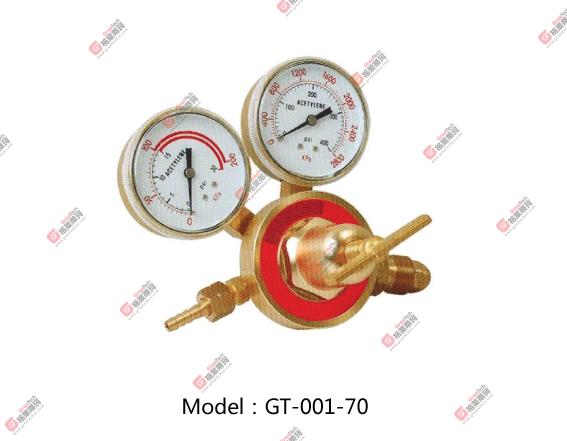

◆70 Gas Regulator/Model:GT-001-70
Medium-sized regulator is applicable to industrial manufacturing,building,installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and kpa double scales’ reading is much wider and more visualized. The upper cover and main body forged and fashioned from high-quality brass are more reliable, durable and safer ,external relief valves are equipped and sintered bronze filter are installed at the air inlet.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-001-70 | OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA300 | 9/16-18UNF-LH | |
PROPANE | 240psi | 15psi | 5m³/h | CGA510 | 9/16-18UNF-LH | |
CO2 | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF | |
AR | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF | |
HYDROGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF | |
NITROGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |

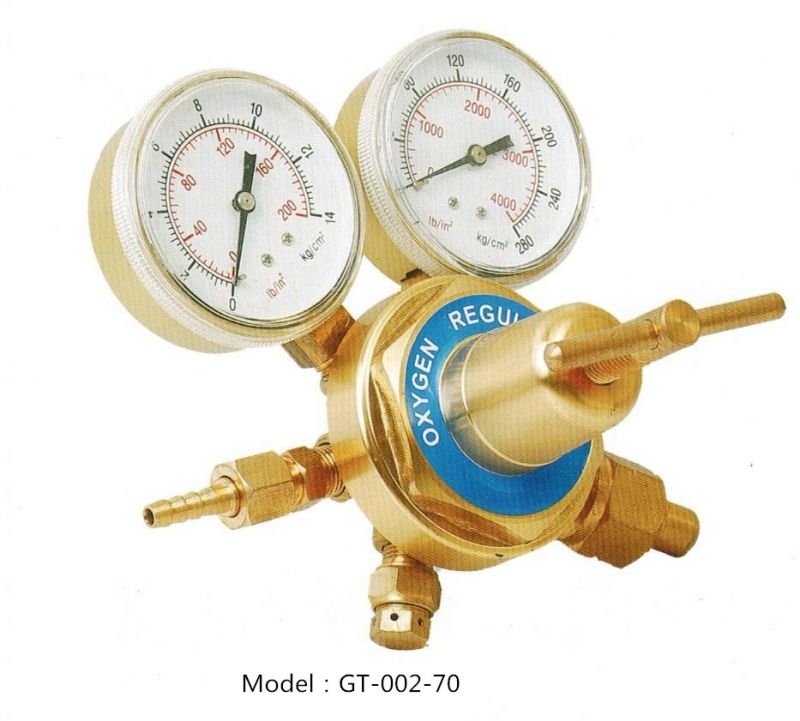

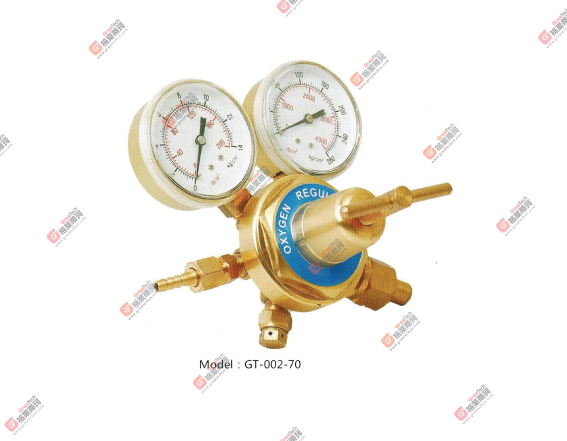

◆70 Gas Regulator/Model:GT-002-70
Medium-sized regulator is applicable to industrial manufacturing,building,installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and kpa double scales’ reading is much wider and more visualized. The upper cover and main body forged and fashioned from high-quality brass are more reliable, durable and safer ,for the 70mm pressure gauge ,external relief valves are equipped and sintered bronze filter are installed at the air inlet.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-002-70 | OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA300 | 9/16-18UNF-LH | |
PROPANE | 240psi | 15psi | 5m³/h | CGA510 | 9/16-18UNF-LH |
