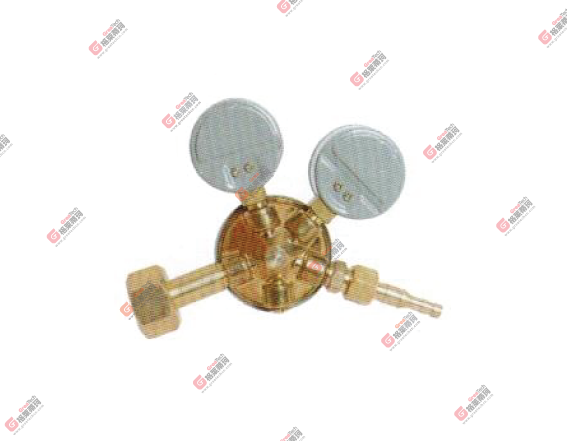

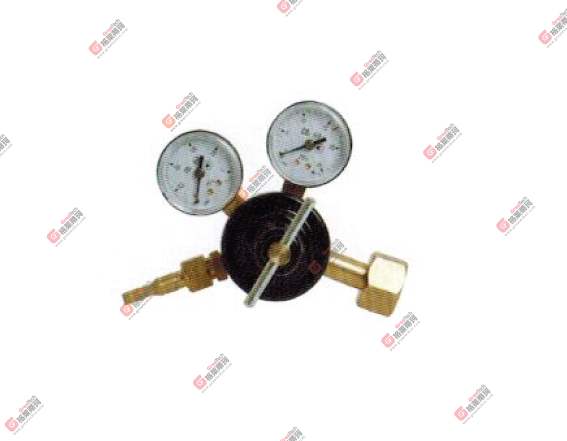

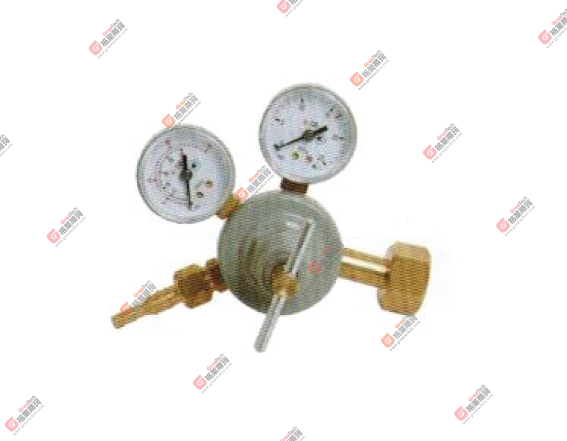

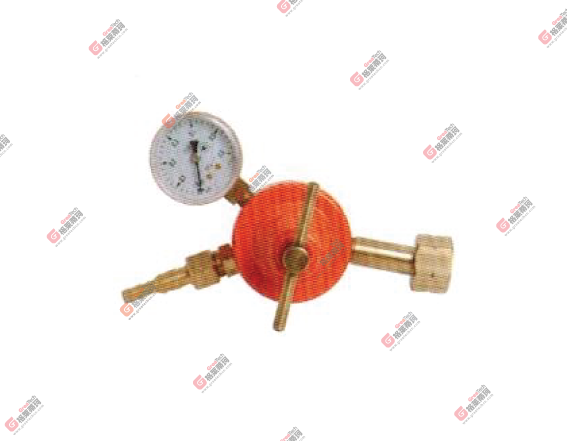

◆52 Russian pressure regulator/GT-028-62
It is suitable for use in manufacturing, construction, installation and other fields. The design of double pressure gages make it easy to read the storage pressure and working pressure .The body is made by forging and pressing quality brass. The upper cover adapts q235 with chrome plating and powder painting. It’s equipped with an outer relief valve. A sintered bronze filter is installed at the air inlet.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-028-62 | OXYGEN | 15MPA | 1.5mpa | 40m3/h | G3/4-14 | M16*1.5 |
CO2 | 15MPA | 1.5mpa | 40m3/h | G3/4-14 | M16*1.5 | |
Ar/CO2 | 15MPA | 30L/min | G3/4-14 | M16*1.5 | ||
PROPANE | 0.4mpa | 5m3/h | G3/4-14LH | M16*1.5LH |
