◆68 Gas Regulator
Medium-sized regulator is applicable to all welding cuts,building and installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The main body is forged and fashioned from high-quality brass and the upper cover is manufactured from aluminum alloy and spray-finished.And for the 60mm pressure gauge,external relief valves are equipped and sintered bronze filters are installed at the air inlet.

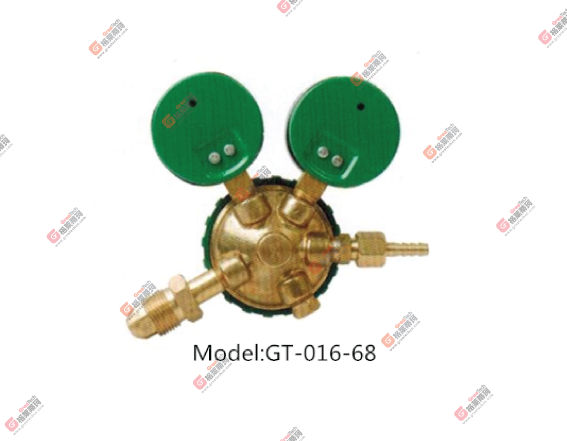

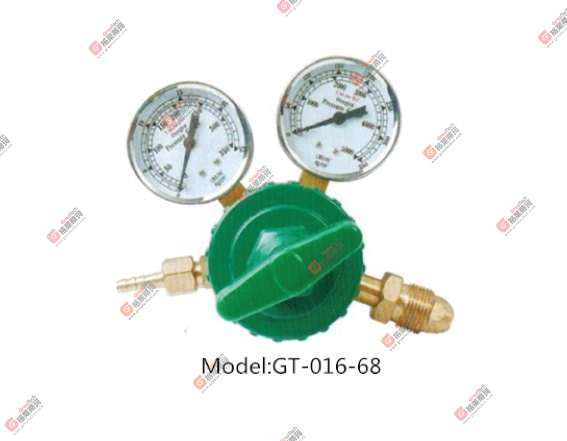

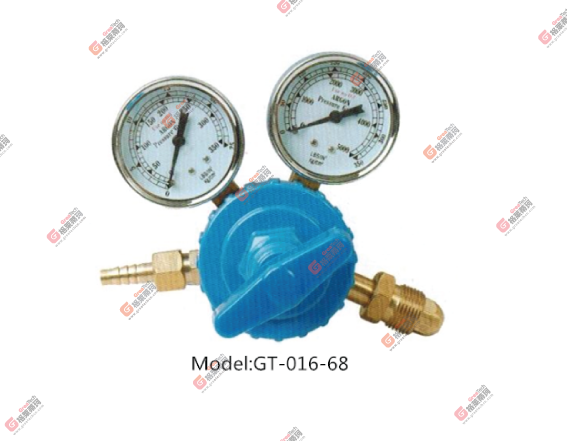

Model:GT-011-68
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-016-68 | OXYGEN | 210kg | 15kg | 40m³/h | G5/8 | G3/8 |
ACETYLENE | 15kg | 15kg | 5m³/h | G5/8-LH | G3/8-LH | |
PROPANE | 15kg | 1.1kg | 3m³/h | G5/8-LH | G3/8-LH | |
AR | 210kg | 15kg | 40m³/h | G5/8 | G3/8 | |
CO2 | 210kg | 15kg | 40m³/h | W21.8 | G3/8 | |
NITROGEN | 210kg | 15kg | 40m³/h | G5/8 | G3/8 |

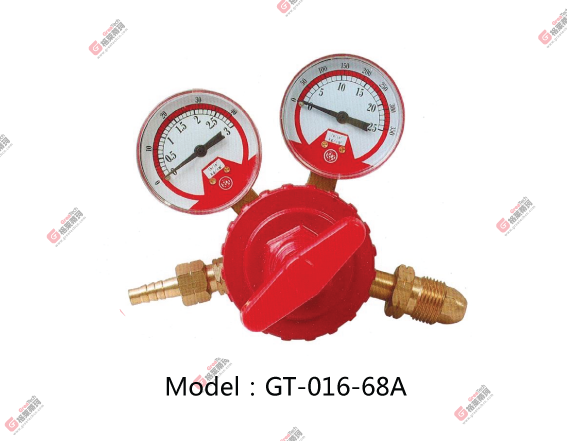

Model:GT-011-68A
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-011-68A | OXYGEN | 150kg | 15kg | 40m³/h | G5/8 | G3/8 |
ACETYLENE | 15kg | 1.6kg | 5m³/h | G5/8-LH | G3/8-LH |
