◆62 Gas Regulator
Medium-sized regulator is applicable to welding cuts,building and installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and bar double scales’ reading is much wider and more visualized, The main body forged and fashioned from high-quality brass and the upper cover is manufactured from q235; and chromate -faced and external relief valves are equipped and sintered bronze filters are installed at the air inlet.

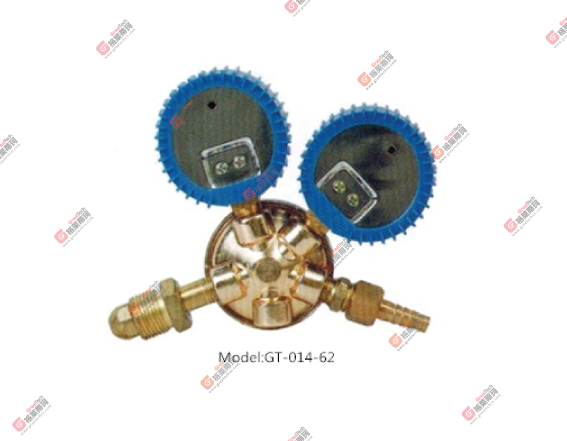

Model:GT-014-62
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-014-62 | OXYGEN | 150kg | 150kg | 40m³/h | G5/8 | G3/8 |
ACETYLENE | 150kg | 150kg | 5m³/h | G5/8-LH | G3/8-LH | |
PROPANE | G3/8-LH | |||||
AR | 150kg | 150kg | 40m³/h | G5/8 | G3/8 | |
CO2 | 150kg | 150kg | 40m³/h | G5/8 | G3/8 |

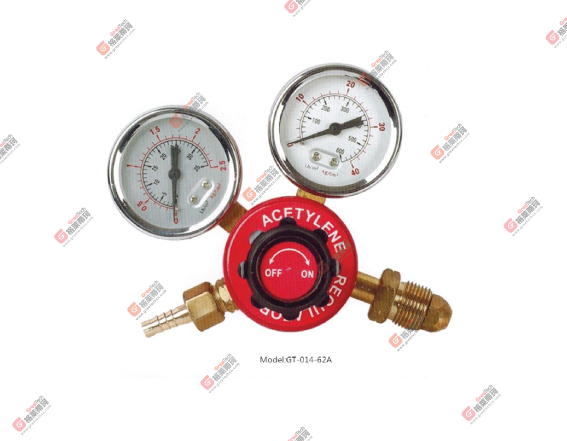

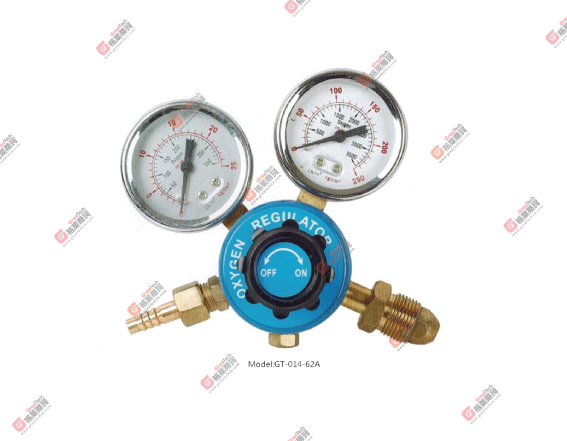

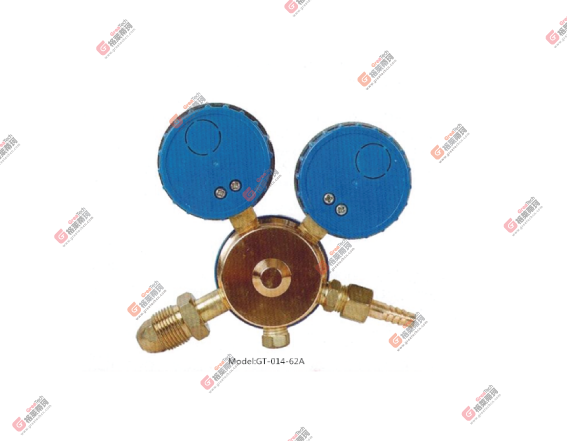

Model:GT-014-62A
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-014-62A | OXYGEN | 150kg | 1.5kg | 40m³/h | G5/8 | G3/8 |
ACETYLENE | 15kg | 1.5kg | 5m³/h | G5/8-LH | G3/8-LH | |
PROPANE | G3/8-LH | |||||
AR | 150kg | 15kg | 40m³/h | G5/8 | G3/8 | |
CO2 | 150kg | 15kg | 40m³/h | G5/8 | G3/8 |
