◆90 Gas Regulator
Heavy-duty regulator is applicable to industrial manufacturing,building and installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and kpa double scales’ reading is much wider and more visualized. The main body is forged and fashioned from high-quality brass and the upper cover is manufactured from high-quality high strength zinc alloy，and chromate -faced and external relief valves are equipped and sintered bronze filter are installed at the air inlet.

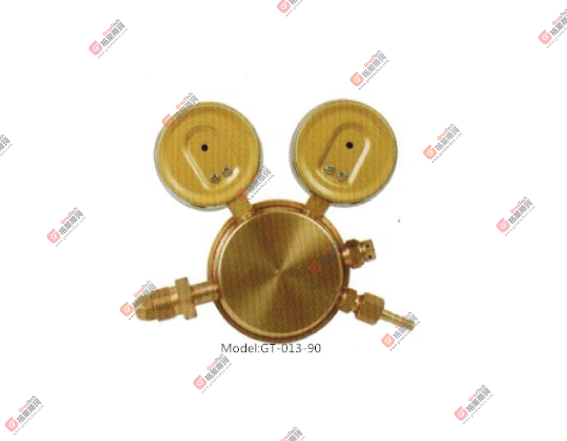

Model:GT-013-90
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-013-90 | OXYGEN | 2400psi | 120psi | 50m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA510 | 9/16-18UNF-LH |

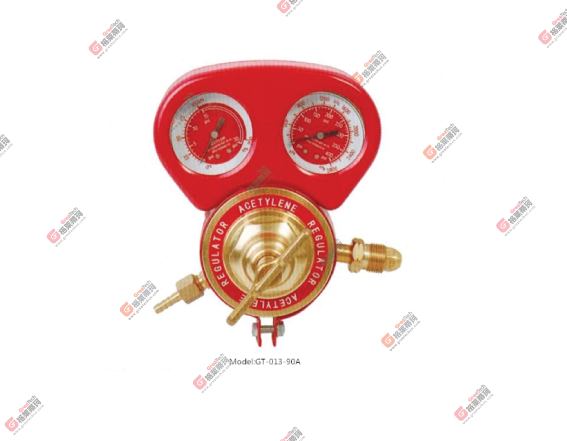

Model:GT-013-90A
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-013-90A | OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA200 | 9/16-18UNF-LH |
