◆55 Gas Regulator
Regulator is applicable to all welding cuts.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The main body is forged and fashioned from high-quality brass and the upper cover manufactured from high-quality high-strength aluminum alloy with surface spray-coated,for the 50mm pressure gauge,external relief valves are equipped and sintered bronze filter are installed at the air inlet.

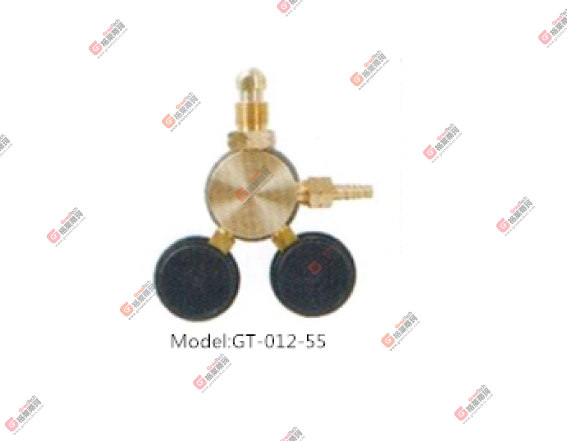

Model:GT-012-55
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-012-55 | OXYGEN | 300bar | 12bar | 35m³/h | G5/8 | G3/8 |
ACETYLENE | 30bar | 1.5bar | 5m³/h | G5/8-LH | G3/8-LH | |
PRO PANE | 30bari | 1.5bar | 5m³/h | G5/8-LH | G3/8-LH |

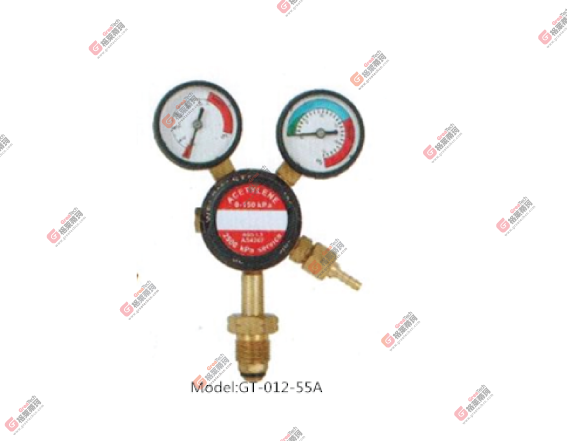

Model:GT-012-55A
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-012-55A | OXYGEN | 3000kpa | 1000kpa | 35m³/h | G5/8 | 5/8-18UNF |
ACETYLENE | 2700kpa | 150kpa | 5m³/h | G5/8-LH | 5/8-18UNF-LH | |
PRO PANE | 2500kpa | 5m³/h | 7/8-14-LH | 5/8-18UNF-LH |

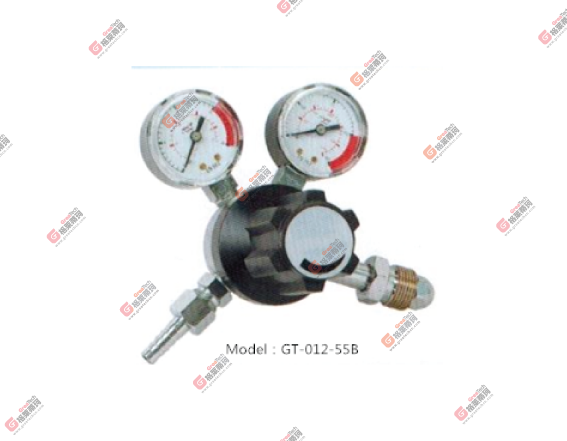

Model:GT-012-55B
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-012-55B | OXYGEN | 300bar | 1000kpa | 35m³/h | G5/8 | G3/8 |
Ar/Co2 | 1000bar | 1000kpa | 35m³/h | W21.8-14 | G3/8 |
