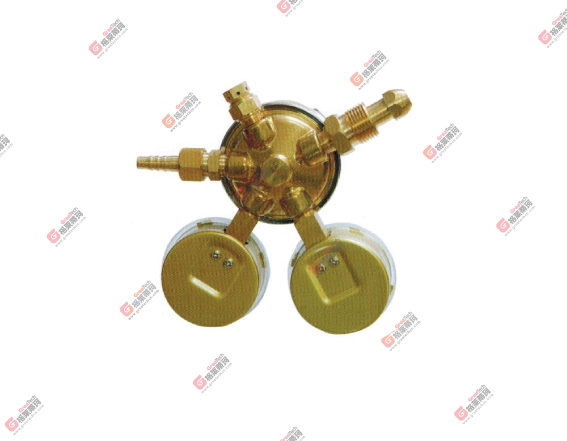

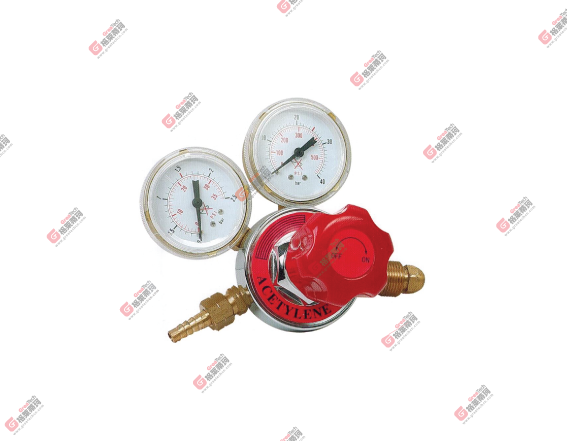

◆68B Gas Regulator/Model:GT-011-68B
Medium-sized regulator is applicable to all welding cuts,building and installation and so on.The design of duplex gauge has provided convenience for reading of gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and bar double scales’ reading is much wider and more visualized. The main body is forged and fashioned from high-quality brass and the upper cover is manufactures from high-quality high-strength aluminum alloy and chromate-faced and external relief valves are equipped and sintered bronze filter are installed at the air inlet.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-011-68B | OXYGEN | 230bar | 10psi | 40m³/h | G5/8 | G5/8 |
ACETYLENE | 25bar | 1.5psi | 5m³/h | G5/8-LH | G5/8-LH |
