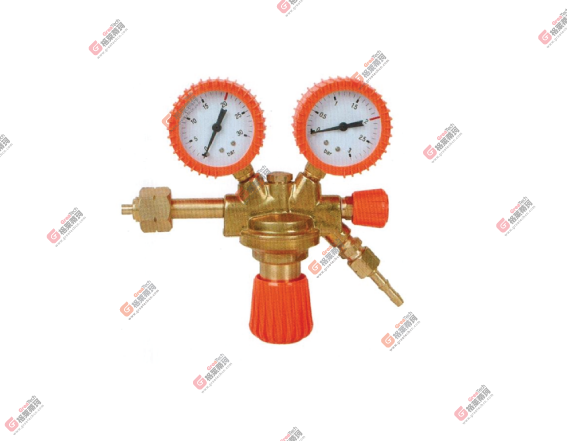

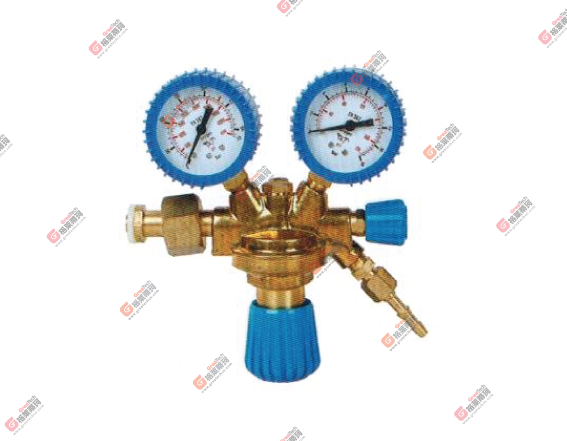

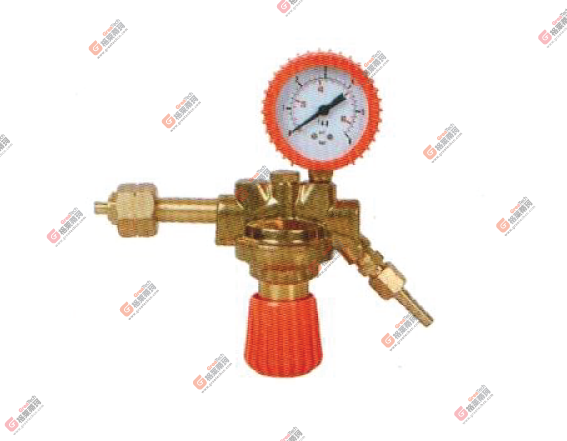

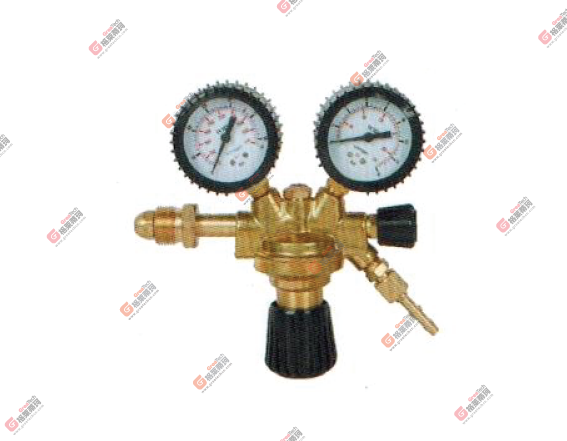

◆52K Gas Regulator/Model:GT-008-52K
Medium-sized regulator is applicable to industrial manufacturing,building and installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and bar double scales’ reading is much wider and more visualized, the upper cover and main body forged and fashioned from high-quality brass are more reliable, durable and safer ,for the 60mm pressure gauge, sintered bronze filters are installed at the air inlet.The adjusting handle forged by high-quality pc for easy pressure adjustment and the output terminal is provided with flow control device for easy control of output flow.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-008-52K | OXYGEN | 230bar | 10bar | 30m³/h | G3/4 | G1/4 |
ACETYLENE | 22bar | 1.5bar | 5m³/h | Cabinet | G1/4-LH | |
PROPANE | 20bar | 2bar | 5m³/h | W21.8-14-LH | G1/4-LH | |
PROPANE | 25bar | 4bar | W21.8-14-LH | G1/4-LH | ||
AR | 230bar | 10bar | 30m³/h | CGA540 | G1/4 | |
Ar/CO2 | 230bar | 24L/min | W21.8-14 | G1/4 |
