◆38 Gas Regulator
Small-sized decompressor is applicable to industrial manufacturing,building and installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and kpa double scales’ reading is much wider and more visualized. The upper cover and main body forged and fashioned from high-quality brass are more reliable, durable and safer , and sintered bronze filter are installed at the air inlet.

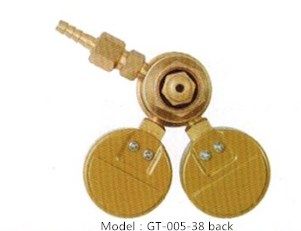

Model:GT-005-38
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-005-38 | OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA200 | 9/16-18UNF-LH |

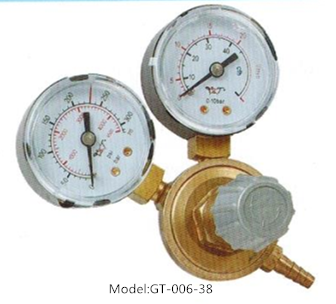

Model:GT-005-38A/GT-006-38
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-005-38A | OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA200 | 9/16-18UNF-LH | |
GT-006-38 | CO2/AR | 230bar | 24L/min | 7/8-14 |
