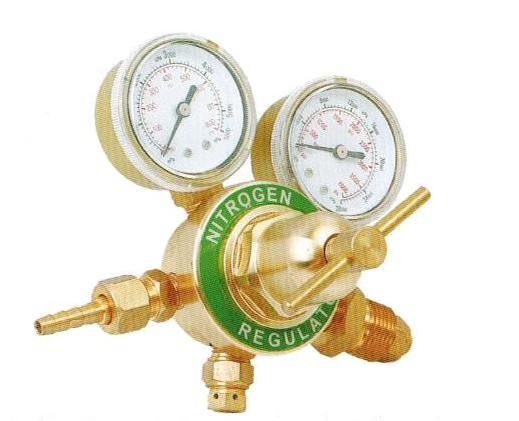

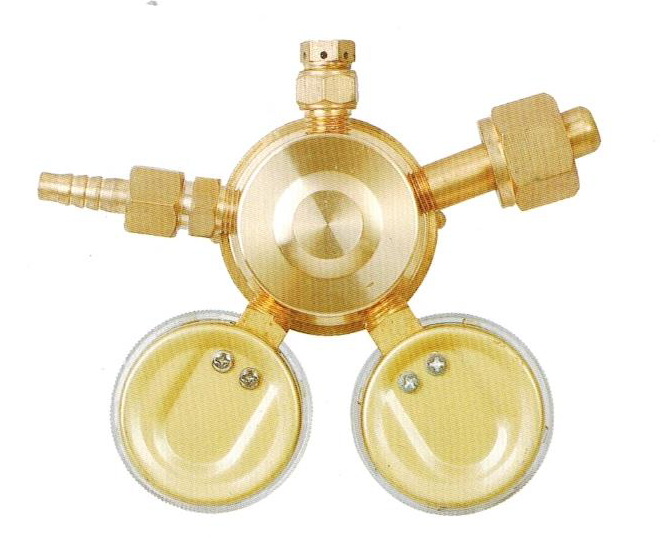

◆58 Gas Regulator/Model:GT-003-58
Light-duty decompressor is applicable to industrial manufacturing,building and installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and kpa double scales’ reading is much wider and more visualized. The upper cover and main body forged and fashioned from high-quality brass are more reliable, durable and safer ,external relief valves are equipped and sintered bronze filter are installed at the air inlet.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-003-58 | OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA510 | 9/16-18UNF-LH | |
AR | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF | |
NITROGEN | 2400psi | 450psi | 50m³/h | CGA580 | 9/16-18UNF |
