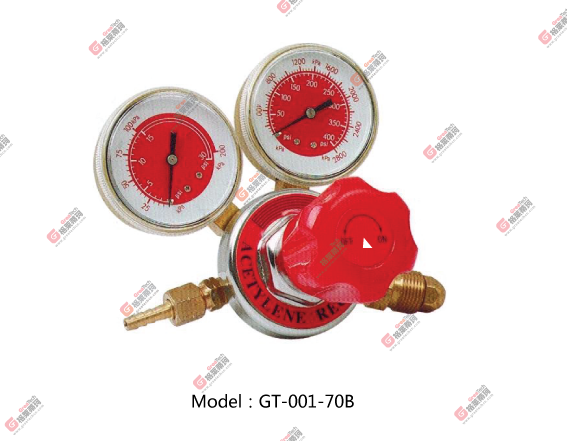

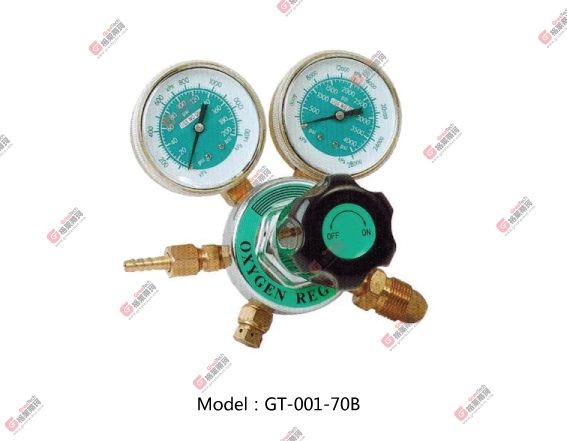

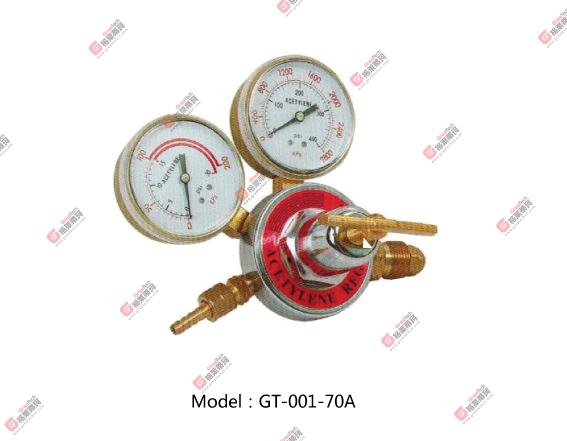

◆70A/70B Gas Regulator/Model:GT-001-70A/70B
Medium-sized regulator is applicable to industrial manufacturing,building,installation and so on.The design of duplex gauge has provided convenience for reading gas cylinder pressure and operating pressure. The gauge: the scope of application of psi and kpa double scales’ reading is much wider and more visualized.The main body is forged and fashioned from high-quality brass;the upper cover is forged from high-strength zinc alloy and iron;the surface is chromized ;external relief valves are equipped and sintered bronze filters are installed at the air inlet.
Model | Applicable Gas | Max. Input Pressure | Max. Output Pressure | Flow | Inlet | Outlet |
GT-001-70A /GT-001-70B
| OXYGEN | 2400psi | 120psi | 30m³/h | CGA540 | 9/16-18UNF |
ACETYLENE | 240psi | 15psi | 5m³/h | CGA300 | 9/16-18UNF-LH | |
PROPANE | 240psi | 15psi | 5m³/h | CGA510 | 9/16-18UNF-LH |
