Technical Data
◆Rating: 400A CO2
350A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～2.0mm
Model | |||
Description | Part No. | ||
GT-TWC400B Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT TWC400B-3 | GT TWC400B-4 | GT TWC400B-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | 24A50 | Nozzle adjustable |
24A62 | Nozzle adjustable | |
24A75 | Nozzle self insulated | |
24AH50 | Nozzle heavy duty | |
| 24AH62 | Nozzle heavy duty | |
24AH75 | Nozzle heavy duty | |
B | 23-50 | Nozzle self insulated |
23-62 | Nozzle self insulated | |
23-75 | Nozzle self insulated | |
| C | 24CT50S | Nozzle fixed coarse thread |
24CT62S | Nozzle fixed coarse thread | |
24CT75S | Nozzle fixed coarse thread | |
Contact tips | ||
Pos. | Part No. | Description |
D | 14-35 | Contact tip 0.035"/0.9mm ECu |
| 14-45 | Contact tip 0.045"/1.2mm ECu | |
| 14-52 | Contact tip 0.052"/1.3mm ECu | |
| 14-116 | Contact tip 1/16"/1.6mm ECu | |
| 14H-35 | Contact tip 0.035"/0.9mm ECu HD | |
| 14H-45 | Contact tip 0.045"/1.0mm ECu HD | |
| 14H-52 | Contact tip 0.052"/1.3mm ECu HD | |
| 14H-116 | Contact tip 1/16"/1.6mm ECu HD | |
| 14H-564 | Contact tip 5/64"/2.0mm ECu HD | |
Liners | ||
Pos. | Part No. | Description |
E | 44-3545-15 | Steel liner 0.035"-0.045"/0.9-1.2mm 4.5m |
| 44-116-15 | Steel liner 1/16"/1.6mm 4.5m | |
| 44-564-15 | Steel liner 5/54"/2.0mm 4.5m | |
| 44T-3545-15 | Teflon liner 0.035"-0.045"/0.9-1.2mm 4.5m | |
| 44T-116-15 | Teflon liner 1/16"/1.6mm 4.5m | |
Compontents | ||

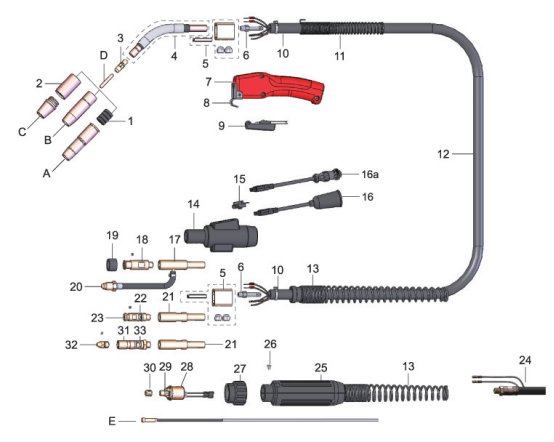

Pos. | Part No. | Description |
1 | 34A | Adjustable nozzle insulator |
2 | 34CT | Nozzle insulator coarse thread |
| 3 | 54A | Gas diffuser |
| 4 | 64A-45J | Jacketed swan neck 45° |
| 64A-60J | Jacketed swan neck 60° | |
| 5 | 104 | Cable connector block assembly |
| 6 | 64N | Gas nipple |
| 7 | 84HD-R | Handle w/Screws, Red |
| 8 | 154HD | Hanger hook |
| 9 | 92 | Trigger switch |
| 10 | 134-14 | Cable hose clamp |
11 | 144-6S | Front spring cable support |
12 | HDL4030B | Cable assembly 3m |
| HDL4040B | Cable assembly 4m | |
| HDL4050B | Cable assembly 5m | |
13 | R185-S | Back spring cable support |
| 14 | R185-H | Gun plug housing w/Screws |
| 15 | 194 | Connector tab assembly |
16 | LAK-354 | 2 Pin plug assembly |
16a | MSAK-354 | Miller 2 Pin plug assembly |
17 | R174-UAG | Connector plug w/Gas hole |
18 | R174-L | Lincion conector |
19 | HDN0201 | Connector insulator |
20 | HDW0201 | Gas hose assembly |
21 | R174-UA | Connector plug |
22 | Q511818 | O-Ring 11.8×1.8 |
23 | R174-T | Tweco connector |
24 | HDL4030BE | Cable assembly 3m, Use w/Euro fitting |
| HDL4040BE | Cable assembly 4m, Use w/Euro fitting | |
| HDL4050BE | Cable assembly 5m, Use w/Euro fitting | |
25 | HDH0202 | Back handle |
26 | EH2211 | Screw M4×6 |
27 | EP3001 | Gun plug nut |
28 | TEU4001 | Tweco euro gun plug |
29 | Q504010 | O-Ring 4×1 |
30 | TEU1011 | Nut M11×1 |
31 | R174-M | Miller connector |
32 | 174M-N | Nipple for Miller connection |
33 | Q512526 | O-Ring 12.5×2.65 |
