Technical Data
◆Rating: 180A CO2
125A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.6～1.2mm
Model | |||
Description | Part No. | ||
GT-TWC180 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT TWC180-3 | GT TWC180-4 | GT TWC180-5 | |
Nozzles | ||

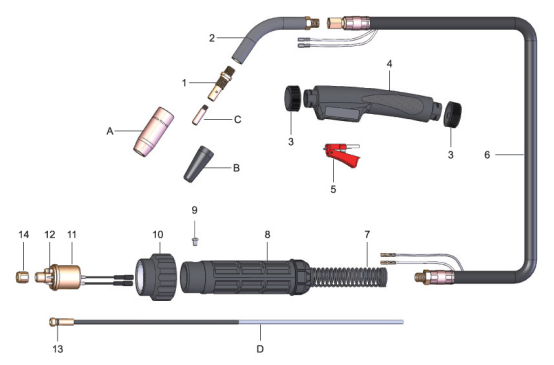

Pos. | Part No. | Description |
A | 21-37 | Nozzle self insulated |
21-50 | Nozzle self insulated | |
21-62 | Nozzle self insulated | |
21-37F | Nozzle self insulated | |
| 21-50F | Nozzle self insulated | |
21-62F | Nozzle self insulated | |
B | LA8201 | Nozzle self shielding |
Contact tips | ||
Pos. | Part No. | Description |
C | 11-23 | Contact tip 0.023"/0.6mm ECu |
11-30 | Contact tip 0.030"/0.8mm ECu | |
11-35 | Contact tip 0.035"/0.9mm ECu | |
11-40 | Contact tip 0.040"/1.0mm ECu | |
| 11-45 | Contact tip 0.045"/1.2mm ECu | |
Liners | ||
Pos. | Part No. | Description |
D | 42-3035-15 | Steel liner 0.030"-0.035"/0.8-0.9mm 15ft/5m |
42T-3035-15 | Teflon liner 0.030"-0.035"/0.8-0.9mm 15ft/5m | |
Compontents | ||
Pos. | Part No. | Description |
1 | 51 | Gas diffuser |
2 | 61-45 | Swan neck 45° |
61-55 | Swan neck 55° | |
| 3 | EH1111 | Locking nut |
4 | EH1101 | Handle |
5 | EJ0003 | Trigger |
6 | TEL1030 | Cable assembly 3m |
TEL1040 | Cable assembly 4m | |
TEL1050 | Cable assembly 5m | |
| 7 | ES2201 | Back spring cable support |
8 | EH2201 | Gun plug housing |
| 9 | EH2211 | Screw M4×6 |
| 10 | EP2001 | Gun plug nut |
11 | TEU1001 | Tweco Euro gun plug |
12 | Q504010 | O-Ring 4×1 |
13 | Q504018 | O-Ring 4×1.8 |
14 | TEU1011 | Nut M11×1 |
