Technical Data
◆Rating: 200A CO2
150A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.6～1.2mm
Model | |||
Description | Part No. | ||
GT-TWC200B Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT TWC200B-3 | GT TWC200B-4 | GT TWC200B-5 | |
Nozzles | ||

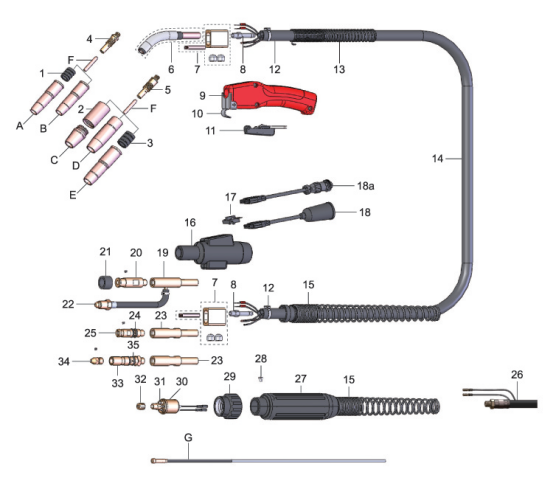

Pos. | Part No. | Description |
A | 22-50 | Nozzle adjustable |
22-62 | Nozzle adjustable | |
| B | 22-50F | Nozzle self insulated |
| C | 24CT50S | Nozzle fixed coarse thread |
| 24CT62S | Nozzle fixed coarse thread | |
24CT57S | Nozzle fixed coarse thread | |
D | 23-50 | Nozzle self insulated |
23-62 | Nozzle self insulated | |
23-75 | Nozzle self insulated | |
| E | 24A50 | Nozzle adjustable |
24A62 | Nozzle adjustable | |
24A75 | Nozzle adjustable | |
Contact tips | ||
Pos. | Part No. | Description |
F | 14-23 | Contact tip 0.023"/0.6mm ECu |
14-30 | Contact tip 0.030"/0.8mm ECu | |
14-35 | Contact tip 0.035"/0.9mm ECu | |
14-40 | Contact tip 0.040"/1.0mm ECu | |
| 14-45 | Contact tip 0.045"/1.2mm ECu | |
14H-35 | Contact tip 0.035"/0.9mm ECu HD | |
14H-40 | Contact tip 0.040"/1.0mm ECu HD | |
14H-45 | Contact tip 0.045"/1.2mm ECu HD | |
Liners | ||
Pos. | Part No. | Description |
G | 42-3035-15 | Steel liner 0.030"-0.035"/0.8-0.9mm 4.5m |
42-4045-15 | Steel liner 0.040"-0.045"/1.0-1.2mm 4.5m | |
42T-3545-15 | Teflon liner 0.035"-0.045"/0.9-1.2mm 4.5m | |
Compontents | ||
Pos. | Part No. | Description |
1 | 32 | Adjustable nozzle insulator |
2 | 34CT | Nozzle insulator coarse thread |
| 3 | 34A | Adjustable nozzle insulator |
| 4 | 52 | Gas diffuser |
5 | 52FN | Gas diffuser |
6 | 62A-45J | Jacketed swan neck 45° |
| 62A-60J | Jacketed swan neck 60° | |
| 7 | 102 | Cable connector block assembly |
| 8 | 62N | Gas nipple |
| 9 | 84HD-R | Handle w/Screws, Red |
10 | 154HD | Hanger hook |
| 11 | 92 | Trigger switch |
| 12 | Q93178 | Cable hose clamp |
13 | 144-6S | Front spring cable support |
14 | HDL2030 | Cable assembly 3m |
| HDL2040 | Cable assembly 4m | |
| HDL2050 | Cable assembly 5m | |
15 | R185-S | Back spring cable support |
| 16 | R185-H | Gun plug housing w/Screws |
| 17 | 194 | Connector tab assembly |
18 | LAK-354 | 2 Pin plug assembly |
18a | MSAK-354 | Miller 2 Pin plug assembly |
19 | R172-UAG | Connector plug w/Gas hole |
20 | R174-L | Lincoin connector |
21 | HDN0201 | Connector insulator |
22 | HDW0201 | Gas hose assembly |
23 | R172-UA | Connector plug |
24 | Q511818 | O-Ring 11.8×1.8 |
25 | R174-T | Tweco connector |
26 | HDL2030E | Cable assembly 3m, Use w/Euro fitting |
| HDL2040E | Cable assembly 4m, Use w/Euro fitting | |
| HDL2050E | Cable assembly 5m, Use w/Euro fitting | |
27 | HDH0202 | Back handle |
28 | EH2211 | Screw M4×6 |
29 | EP3001 | Gun plug nut |
30 | TEU1001 | Tweco euro gun plug |
31 | Q504010 | O-Ring 4×1 |
32 | TEU1011 | Nut M11×1 |
33 | R174-M | Miller connector |
34 | 174M-N | Nipple for Miller connection |
35 | Q512526 | O-Ring 12.5×2.65 |
