Technical Data
◆Rating: 500A CO2
400A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.9～2.4mm
Model | |||
Description | Part No. | ||
GT-TWC500 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT TWC500-3 | GT TWC500-4 | GT TWC500-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | 25CT-50 | Nozzle fixed coarse thread |
25CT-62 | Nozzle fixed coarse thread | |
25CT-75 | Nozzle fixed coarse thread | |
Contact tips | ||
Pos. | Part No. | Description |
B | 15H-45 | Contact tip 0.045"/1.2mm ECu |
15H-52 | Contact tip 0.052"/1.3mm ECu | |
15H-116 | Contact tip 1/16"/1.6mm ECu | |
15H-564 | Contact tip 0.080"/2.0mm ECu | |
| 15H-332 | Contact tip 0.090"/2.4mm ECu | |
15HFC-45 | Contact tip 0.045"/1.2mm ECu F/Cored | |
15HFC-116 | Contact tip 1/16"/1.6mm ECu F/Cored | |
15HFC-564 | Contact tip 5/64"/2.0mm ECu F/Cored | |
15HFC-332 | Contact tip 3/32"/2.4mm ECu F/Cored | |
Liners | ||
Pos. | Part No. | Description |
C | 44-3545-15 | Steel liner 0.035"-0.045"/0.9-1.2mm 4.5m Euro end |
44-116-15 | Steel liner 1/16"/1.6mm 4.5m Euro end | |
44-564-15 | Steel liner 5/64"/2.0mm 4.5m Euro end | |
44T-3545-15 | Teflon liner 0.035"-0.045"/0.9-1.2mm 4.5m Euro end | |
44T-116-15 | Teflon liner 1/16"/1.6mm 4.5m Euro end | |
44-3545-15 | Steel liner 0.035"-0.045"/0.9-1.2mm 4.5m Tweco end | |
45-116-15 | Steel liner 1/16"/1.6mm 4.5m Tweco end | |
45-564-15 | Steel liner 5/64"/2.0mm 4.5m Tweco end | |
45-332-15 | Steel liner 3/32"/2.4mm 4.5m Tweco end | |
Compontents | ||

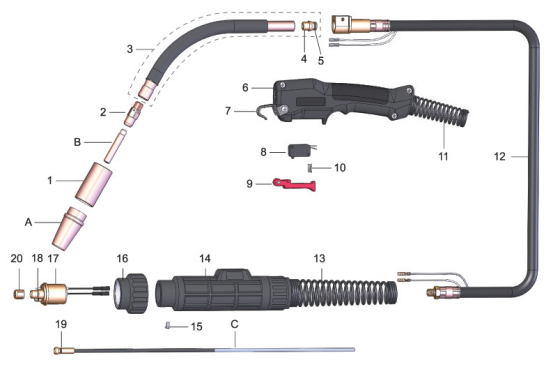

Pos. | Part No. | Description |
1 | 35CT | Adjustable nozzle insulator |
2 | 55 | Gas diffuser |
| 55SW | Gas diffuser | |
| 55H | Gas diffuser | |
3 | 65-45 | Swan neck 45° |
| 65-60 | Swan neck 60° | |
| 4 | TEF5212 | Gas nipple |
| 5 | Q508015S | O-Ring 8×1.5 |
| 6 | TEH2101 | Handle |
| 7 | TEG2001 | Hanger hook |
8 | Q711 | Switch |
| 9 | KJ3003 | Trigger |
| 10 | Q60512 | Trigger spring |
11 | KS3101 | Front spring cable support |
12 | TEL5030 | Cable assembly 3m |
| TEL5040 | Cable assembly 4m | |
| TEL5050 | Cable assembly 5m | |
13 | SS5202 | Back spring cable support |
| 14 | SH5201 | Gun plug housing |
| 15 | EH2211 | Screw M4×6 |
16 | EP3001 | Gun plug nut |
17 | TEU4001 | Tweco euro gun plug |
18 | Q504010 | O-Ring 4×1 |
19 | Q504018 | O-Ring 4×1.8 |
20 | TEU1011 | Nut M11×1 |
