Technical Data
◆Rating: 400A CO2
350A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.6～1.2mm
Model | |||
Description | Part No. | ||
GT-TWC400 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT TWC400-3 | GT TWC400-4 | GT TWC400-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | 24A50 | Nozzle adjustable |
24A62 | Nozzle adjustable | |
24A75 | Nozzle self insulated | |
24AH50 | Nozzle heavy duty | |
| 24AH62 | Nozzle heavy duty | |
24AH75 | Nozzle heavy duty | |
B | 23-50 | Nozzle self insulated |
23-62 | Nozzle self insulated | |
23-75 | Nozzle self insulated | |
| C | 24CT50S | Nozzle fixed coarse thread |
24CT62S | Nozzle fixed coarse thread | |
24CT75S | Nozzle fixed coarse thread | |
Contact tips | ||
Pos. | Part No. | Description |
D | 14-35 | Contact tip 0.035"/0.9mm ECu |
| 14-45 | Contact tip 0.045"/1.2mm ECu | |
| 14-52 | Contact tip 0.052"/1.3mm ECu | |
| 14-116 | Contact tip 1/16"/1.6mm ECu | |
| 14H-35 | Contact tip 0.035"/0.9mm ECu HD | |
| 14H-40 | Contact tip 0.040"/1.0mm ECu HD | |
| 14H-45 | Contact tip 0.045"/1.2mm ECu HD | |
| 14H-52 | Contact tip 0.052"/1.3mm ECu HD | |
| 14H-116 | Contact tip 1/16"/1.6mm ECu HD | |
| 14H-564 | Contact tip 5/64"/2.0mm ECu HD | |
Liners | ||
Pos. | Part No. | Description |
E | 44-3545-15 | Steel liner 0.035"-0.045"/0.9-1.2mm 4.5m |
| 44-116-15 | Steel liner 1/16"/1.6mm 4.5m | |
| 44-564-15 | Steel liner 5/54"/2.0mm 4.5m | |
| 44T-3545-15 | Teflon liner 0.035"-0.045"/0.9-1.2mm 4.5m | |
| 44T-116-15 | Teflon liner 1/16"/1.6mm 4.5m | |

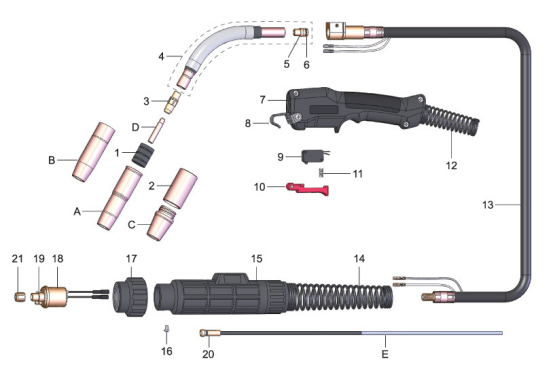

Compontents | ||
Pos. | Part No. | Description |
1 | 34A | Adjustable nozzle insulator |
2 | 34CT | Nozzle insulator coarse thread |
| 3 | 54A | Gas diffuser |
| 4 | 64A45J | Jacketed swan neck 45° |
| 64A60J | Jacketed swan neck 60° | |
| 64A45 | Swan neck 45° | |
| 64A60 | Swan neck 60° | |
| 5 | TEF2212 | Gas nipple |
| 6 | Q508015S | O-Ring 8×1.5 |
| 7 | TEH2101 | Handle |
| 8 | TEG2001 | Hanger hook |
9 | Q711 | Switch |
10 | KJ3003 | Trigger |
11 | Q60512 | Trigger spring |
12 | KS3101 | Front spring cable support |
13 | TEL4030 | Cable assembly 3m |
| TEL4040 | Cable assembly 4m | |
| TEL4050 | Cable assembly 5m | |
14 | SS5202 | Back spring cable support |
15 | SH5201 | Gun plug housing |
16 | EH2211 | Screw M4×6 |
17 | EP3001 | Gun plug nut |
18 | TEU4001 | Tweco euro gun plug |
19 | Q504010 | O-Ring 4×1 |
20 | Q504018 | O-Ring 4×1.8 |
21 | TEU1011 | Nut M11×1 |
