Technical Data
◆Rating: 360A CO2
330A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～2.4mm
Model | |||
Description | Part No. | ||
GT-SU520 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 01.00.525 | GT 01.00.526 | GT 01.00.527 | |
Nozzles | |||
Pos. | Part No. | Ø | Description |
01 | GT 01.03.780 | 16 |
|
GT 01.03.781 | 19 | ||
02 | GT 01.03.526 | 13 | |
GT 01.03.525 | 16 | ||
GT01.03.527 | 19 | ||
Contact tips | ||||
Pos. | Part No. | Ø | Description | Material |
03 | GT 01.07.040 | 0.8 |
| E-Cu |
GT 01.07.041 | 0.9 | |||
GT 01.07.042 | 1.0 | |||
GT 01.07.043 | 1.2 | |||
GT 01.07.044 | 1.6 | |||
GT 01.07.045 | 2.4 | |||
Liners | |||
Pos. | Part No. | Ø | Description |
25 | GT 01.50.800 | 0.8 | Steel Liner 0.8~1.0mm 3.5m |
GT 01.50.801 | 0.9 | Steel Liner 0.8~1.0mm 4.5m | |
GT 01.50.802 | 1.0 | Steel Liner 0.8~1.0mm 5.5m | |
GT 01.50.803 | 1.2 | Steel Liner 1.2mm 3.5m | |
GT 01.50.804 | Steel Liner 1.2mm 4.5m | ||
GT 01.50.805 | Steel Liner 1.2mm 5.5m | ||
GT 01.50.806 | 1.6 | Steel Liner 1.6mm 3.5m | |
GT 01.50.807 | Steel Liner 1.6mm 4.5m | ||
GT 01.50.808 | Steel Liner 1.6mm 5.5m | ||
GT 01.50.809 | 2.4 | Steel Liner 2.4mm 3.5m | |
GT 01.50.810 | Steel Liner 2.4mm 4.5m | ||
GT 01.50.811 | Steel Liner 2.4mm 5.5m | ||
GT 01.50.814 | 1.6 | Teflon Liner 1.6mm 3.5m | |
GT 01.50.900 | Teflon Liner 1.6mm 4.5m | ||
GT 01.50.901 | Teflon Liner 1.6mm 5.5m | ||
GT 01.50.815 | 2.4 | Teflon Liner 2.4mm 3.5m | |
GT 01.50.902 | Teflon Liner 2.4mm 4.5m | ||
GT 01.50.903 | Teflon Liner 2.4mm 5.5m | ||

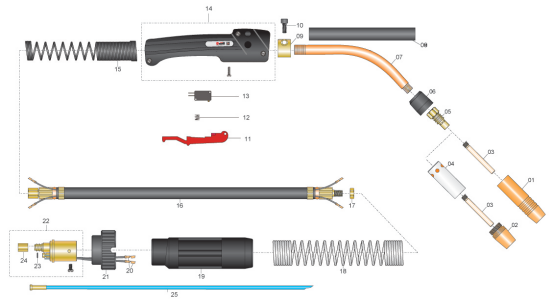

Compontents | ||
Pos. | Part No. | Description |
01 | Gas nozzle | |
02 | Gas nozzle | |
03 | Contact tip | |
04 | GT 01.03.492 | Nozzle insulator |
05 | GT 01.11.325 | Tip holder |
06 | GT 01.15.004 | Rubber cap |
07 | GT 01.20.525 | Swan neck |
08 | GT 01.15.009 | Insulation sleeve |
09 | GT 01.20.623 | Fixed block |
10 | GT 01.63.006 | Screw |
11 | GT 01.30.710 | Trigger |
12 | GT 01.34.690 | Trigger spring |
13 | GT 01.45.680 | Switch |
14 | GT 01.25.620 | Front handle |
15 | GT 01.34.001 | Front spring cable support |
| 16 | GT 01.37.729 | Cable assembly 50mm 3m |
GT 01.37.730 | Cable assembly 50mm 4m | |
GT 01.37.731 | Cable assembly 50mm 5m | |
| 17 | GT 01.32.001 | Nut |
18 | GT 01.34.002 | Back spring cable support |
19 | GT 01.41.001 | Gun plug housing |
20 | GT 01.63.002 | Wire connector |
21 | GT 01.32.003 | Central adaptor |
22 | GT 01.45.770 | Euro central adaptor |
23 | GT 01.53.001 | O-Ring |
24 | GT 01.32.004 | Coupling nut |
25 | Liner | |
