Technical Data
◆Rating: 300A CO2
260A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.6mm
Model | |||
Description | Part No. | ||
GT-SBME235 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 01.00.235 | GT 01.00.236 | GT 01.00.237 | |
Nozzles | |||
Pos. | Part No. | Ø | Description |
01 | GT 01.03.514 | 15 | |
GT 01.03.521 | 19 | ||
02 | GT 01.03.517 | 13 | |
GT 01.03.516 | 16 | ||
GT 01.03.512 | 19 | ||
03 | GT 01.03.563 | 12 | |
GT 01.03.594 | 14 | ||
GT 01.03.558 | 16 | ||
Contact tips | ||||
Pos. | Part No. | Ø | Description | Material |
05 | 01.07.050 | 0.8 | | E-Cu |
01.07.051 | 0.9 | |||
01.07.052 | 1.0 | |||
01.07.053 | 1.2 | |||
01.07.054 | 1.6 | |||
06 | 01.07.060 | 0.8 | | E-Cu |
01.07.061 | 0.9 | |||
01.07.062 | 1.0 | |||
01.07.063 | 1.2 | |||
01.07.064 | 1.6 | |||
07 | 01.07.276 | 0.8 | | E-Cu |
01.07.277 | 0.9 | |||
01.07.278 | 1.0 | |||
01.07.269 | 1.2 | |||
01.07.270 | 1.6 | |||
Liners | |||
Pos. | Part No. | Ø | Description |
28 | GT 01.50.800 | 0.8 | Steel Liner 0.8~1.0mm 3.5m |
GT 01.50.801 | 0.9 | Steel Liner 0.8~1.0mm 4.5m | |
GT 01.50.802 | 1.0 | Steel Liner 0.8~1.0mm 5.5m | |
GT 01.50.803 | 1.2 | Steel Liner 1.2mm 3.5m | |
GT 01.50.804 | Steel Liner 1.2mm 4.5m | ||
GT 01.50.805 | Steel Liner 1.2mm 5.5m | ||
GT 01.50.806 | 1.6 | Steel Liner 1.6mm 3.5m | |
GT 01.50.807 | Steel Liner 1.6mm 4.5m | ||
GT 01.50.808 | Steel Liner 1.6mm 5.5m | ||

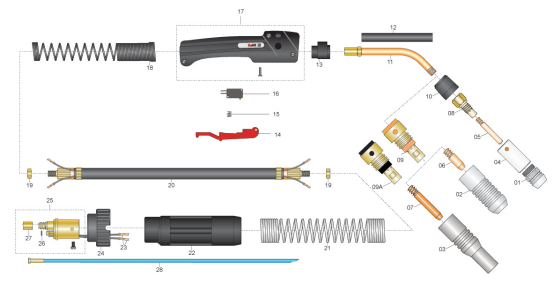

Compontents | ||
Pos. | Part No. | Description |
01 | Gas nozzle | |
02 | Gas nozzle | |
03 | Gas nozzle | |
04 | GT 01.03.490 | Nozzle insulator |
05 | Contact tip | |
06 | Contact tip | |
07 | Contact tip | |
08 | GT 01.11.405 | Tip holder |
09 | GT 01.11.406 | Insulator yellow |
09A | GT 01.11.396 | Insulator black |
10 | GT 01.15.004 | Rubber cap |
11 | GT 01.20.574 | Swan neck |
12 | GT 01.15.446 | Insulation sleeve |
13 | GT 01.20.622 | Torch body plastic |
14 | GT 01.30.710 | Trigger |
15 | GT 01.34.690 | Trigger spring |
16 | GT 01.45.680 | Switch |
17 | GT 01.25.620 | Front handle |
18 | GT 01.34.001 | Front spring cable support |
| 19 | GT 01.32.003 | Nut |
| 20 | GT 01.37.726 | Cable assembly 35mm 3m |
GT 01.37.727 | Cable assembly 35mm 4m | |
GT 01.37.728 | Cable assembly 35mm 5m | |
21 | GT 01.34.002 | Back spring cable support |
22 | GT 01.41.001 | Gun plug housing |
23 | GT 01.63.002 | Wire connector |
24 | GT 01.32.003 | Central adaptor |
25 | GT 01.45.770 | Euro central adaptor |
26 | GT 01.53.001 | O-Ring |
27 | GT 01.32.004 | Coupling nut |
28 | Liner | |
