Technical Data
◆Rating: 180A CO2
160A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.6mm
Model | |||
Description | Part No. | ||

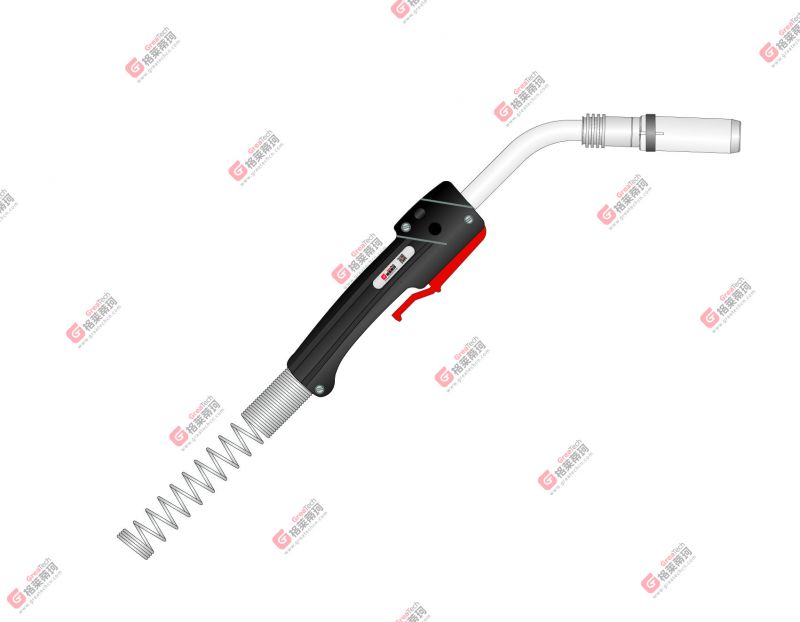

GT-SBME116 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 01.00.116 | GT 01.00.117 | GT 01.00.118 | |
Nozzles | |||
Pos. | Part No. | Ø | Description |
01 | GT 01.03.566 | 13 |
|
GT 01.03.510 | 15 | ||
Contact tips | ||||
Pos. | Part No. | Ø | Description | Material |
02 | GT 01.07.010 | 0.8 |
| E-Cu |
GT 01.07.011 | 0.9 | |||
GT 01.07.012 | 1.0 | |||
GT 01.07.013 | 1.2 | |||
GT 01.07.014 | 1.6 | |||
Liners | |||
Pos. | Part No. | Ø | Description |
21 | GT 01.50.800 | 0.8 | Steel Liner 0.8~1.0mm 3.5m |
GT 01.50.801 | 0.9 | Steel Liner 0.8~1.0mm 4.5m | |
GT 01.50.802 | 1.0 | Steel Liner 0.8~1.0mm 5.5m | |
GT 01.50.803 | 1.2 | Steel Liner 1.2mm 3.5m | |
GT 01.50.804 | Steel Liner 1.2mm 4.5m | ||
GT 01.50.805 | Steel Liner 1.2mm 5.5m | ||
GT 01.50.806 | 1.6 | Steel Liner 1.6mm 3.5m | |
GT 01.50.807 | Steel Liner 1.6mm 4.5m | ||
GT 01.50.808 | Steel Liner 1.6mm 5.5m | ||

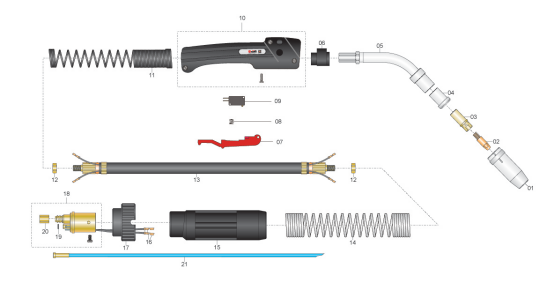

Compontents | ||
Pos. | Part No. | Description |
01 | Gas nozzle | |
02 | Contact tip | |
03 | GT 01.11.400 | Tip holder |
04 | GT 01.15.440 | Insulator |
05 | GT 01.20.571 | Swan neck |
06 | GT 01.20.662 | Torch body plastic |
07 | GT 01.30.710 | Trigger |
08 | GT 01.34.690 | Trigger spring |
09 | GT 01.45.680 | Switch |
10 | GT 01.25.620 | Front handle |
11 | GT 01.34.001 | Front spring cable support |
12 | GT 01.32.001 | Nut |
13 | GT 01.37.720 | Cable assembly 16mm 3m |
GT 01.37.721 | Cable assembly 16mm 4m | |
GT 01.37.722 | Cable assembly 16mm 5m | |
14 | GT 01.34.002 | Back spring cable support |
15 | GT 01.41.001 | Gun plug housing |
16 | GT 01.63.002 | Wire connector |
17 | GT 01.32.003 | Central adaptor |
18 | GT 01.45.770 | Euro central adaptor |
19 | GT 01.53.001 | O-Ring |
20 | GT 01.32.004 | Coupling nut |
21 | Liner | |
