Technical Data
◆Rating: 300A CO2
260A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.6mm
Model | |||
Description | Part No. | ||
GT-SU320 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 01.00.325 | GT 01.00.326 | GT 01.00.327 | |
Nozzles | |||
Pos. | Part No. | Ø | Description |
01 | GT 01.03.264 | 16 |
|
02 | GT 01.03.088 | 09 | |
GT 01.03.089 | 12 | ||
Contact tips | ||||
Pos. | Part No. | Ø | Description | Material |
03 | GT 01.07.080 | 0.8 |
| E-Cu |
GT 01.07.081 | 0.9 | |||
GT 01.07.082 | 1.0 | |||
GT 01.07.083 | 1.2 | |||
GT 01.07.084 | 1.6 | |||
04A | GT 01.07.120 | 0.8 | | CuCrZr |
GT 01.07.121 | 0.9 | |||
GT 01.07.122 | 1.0 | |||
GT 01.07.123 | 1.2 | |||
GT 01.07.124 | 1.6 | |||
04B | GT 01.07.140 | 0.8 |
| CuCrZr |
GT 01.07.141 | 0.9 | |||
GT 01.07.142 | 1.0 | |||
GT 01.07.143 | 1.2 | |||
GT 01.07.144 | 1.6 | |||
05 | GT 01.07.290 | 0.8 | | E-Cu |
GT 01.07.291 | 0.9 | |||
GT 01.07.292 | 1.0 | |||
GT 01.07.293 | 1.2 | |||
GT 01.07.294 | 1.6 | |||
Liners | |||
Pos. | Part No. | Ø | Description |
26 | GT 01.50.800 | 0.8 | Steel Liner 0.8~1.0mm 3.5m |
GT 01.50.801 | 0.9 | Steel Liner 0.8~1.0mm 4.5m | |
GT 01.50.802 | 1.0 | Steel Liner 0.8~1.0mm 5.5m | |
GT 01.50.803 | 1.2 | Steel Liner 1.2mm 3.5m | |
GT 01.50.804 | Steel Liner 1.2mm 4.5m | ||
GT 01.50.805 | Steel Liner 1.2mm 5.5m | ||
GT 01.50.806 | 1.6 | Steel Liner 1.6mm 3.5m | |
GT 01.50.807 | Steel Liner 1.6mm 4.5m | ||
GT 01.50.808 | Steel Liner 1.6mm 5.5m | ||

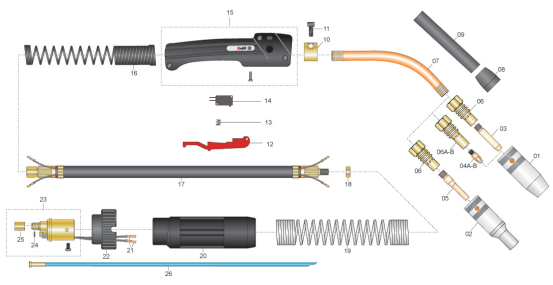

Compontents | ||
Pos. | Part No. | Description |
01 | Gas nozzle | |
02 | Gas nozzle | |
03 | Contact tip | |
04 | Contact tip | |
05 | Contact tip | |
06 | GT 01.11.325 | Tip holder |
06A | GT 01.11.508 | Tip holder M8 |
06B | GT 01.11.507 | Tip holder M6 |
07 | GT 01.20.325 | Swan neck |
08 | GT 01.15.004 | Rubber cap |
09 | GT 01.15.007 | Insulation sleeve |
10 | GT 01.20.623 | Fixed block |
11 | GT 01.63.006 | Screw |
12 | GT 01.30.710 | Trigger |
13 | GT 01.34.690 | Trigger spring |
14 | GT 01.45.680 | Switch |
15 | GT 01.25.620 | Handle |
| 16 | GT 01.34.001 | Front spring cable support |
| 17 | GT 01.37.013 | Cable assembly 35mm 3m |
GT 01.37.014 | Cable assembly 35mm 4m | |
GT 01.37.015 | Cable assembly 35mm 5m | |
| 18 | GT 01.32.001 | Nut |
19 | GT 01.34.002 | Back spring cable support |
20 | GT 01.41.001 | Gun plug housing |
21 | GT 01.63.002 | Wire connector |
22 | GT 01.32.003 | Central adaptor |
23 | GT 01.45.770 | Euro central adaptor |
24 | GT 01.53.001 | O-Ring |
25 | GT 01.32.004 | Coupling nut |
26 | Liner | |
