Technical Data
◆Rating: 390A CO2
370A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～2.4mm
Model | |||
Description | Part No. | ||
GT-SBME450 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 01.00.450 | GT 01.00.451 | GT 01.00.452 | |
Nozzles | |||
Pos. | Part No. | Ø | Description |
01 | GT 01.03.517 | 13 | |
GT 01.03.516 | 16 | ||
GT 01.03.512 | 19 | ||
02 | GT 01.03.515 | 19 |
|
GT 01.03.534 | 15 | ||
03 | GT 01.03.521 | 19 | |
GT 01.03.514 | 15 | ||
04 | GT 01.03.563 | 12 |
|
GT 01.03.594 | 14 | ||
GT 01.03.558 | 16 | ||
Contact tips | ||||
Pos. | Part No. | Ø | Description | Material |
07 | GT 01.07.060 | 0.8 | | E-Cu |
GT 01.07.061 | 0.9 | |||
GT 01.07.062 | 1.0 | |||
GT 01.07.063 | 1.2 | |||
GT 01.07.064 | 1.6 | |||
GT 01.07.140 | 0.8 | | CuCrZr | |
GT 01.07.141 | 0.9 | |||
GT 01.07.142 | 1.0 | |||
GT 01.07.143 | 1.2 | |||
GT 01.07.144 | 1.6 | |||
GT 01.07.146 | 2.0 | |||
GT 01.07.145 | 2.4 | |||
08 | GT 01.07.040 | 0.8 | | E-Cu |
GT 01.07.041 | 0.9 | |||
GT 01.07.042 | 1.0 | |||
GT 01.07.043 | 1.2 | |||
GT 01.07.044 | 1.6 | |||
GT 01.07.045 | 2.4 | |||
09 | GT 01.07.050 | 0.8 | | E-Cu |
GT 01.07.051 | 0.9 | |||
GT 01.07.052 | 1.0 | |||
GT 01.07.053 | 1.2 | |||
GT 01.07.054 | 1.6 | |||
10 | GT 01.07.276 | 0.8 | | E-Cu |
GT 01.07.277 | 0.9 | |||
GT 01.07.278 | 1.0 | |||
GT 01.07.269 | 1.2 | |||
GT 01.07.270 | 1.6 | |||
Liners | |||
Pos. | Part No. | Ø | Description |
32 | GT 01.50.800 | 0.8 | Steel Liner 0.8~1.0mm 3.5m |
GT 01.50.801 | 0.9 | Steel Liner 0.8~1.0mm 4.5m | |
GT 01.50.802 | 1.0 | Steel Liner 0.8~1.0mm 5.5m | |
GT 01.50.803 | 1.2 | Steel Liner 1.2mm 3.5m | |
GT 01.50.804 | Steel Liner 1.2mm 4.5m | ||
GT 01.50.805 | Steel Liner 1.2mm 5.5m | ||
GT 01.50.806 | 1.6 | Steel Liner 1.6mm 3.5m | |
GT 01.50.807 | Steel Liner 1.6mm 4.5m | ||
GT 01.50.808 | Steel Liner 1.6mm 5.5m | ||
GT 01.50.813 | 0.8 0.9 1.0 1.2 | Teflon Liner 0.8~1.2mm 3.5m | |
GT 01.50.898 | Teflon Liner 0.8~1.2mm 4.5m | ||
GT 01.50.899 | Teflon Liner 0.8~1.2mm 5.5m | ||
GT 01.50.814 | 1.6 | Teflon Liner 1.6mm 3.5m | |
GT 01.50.900 | Teflon Liner 1.6mm 4.5m | ||
GT 01.50.901 | Teflon Liner 1.6mm 5.5m | ||

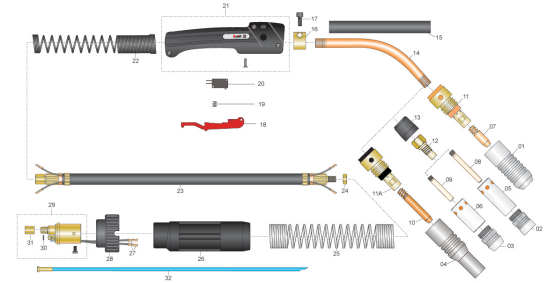

Compontents | ||
Pos. | Part No. | Description |
01 | Gas nozzle | |
02 | Gas nozzle | |
03 | Gas nozzle | |
04 | Gas nozzle | |
05 | GT 01.03.491 | Nozzle insulator |
06 | GT 01.03.490 | Nozzle insulator |
07 | Contact tip | |
08 | Contact tip | |
09 | Contact tip | |
10 | Contact tip | |
11 | GT 01.11.406 | Insulator yellow |
11A | GT 01.11.396 | Insulator black |
12 | GT 01.11.405 | Tip holder |
13 | GT 01.15.004 | Rubber cap |
14 | GT 01.20.450 | Swan neck |
15 | GT 01.15.009 | Insulation sleeve |
16 | GT 01.20.623 | Fixed block |
17 | GT 01.63.006 | Screw |
18 | GT 01.30.710 | Trigger |
19 | GT 01.34.690 | Trigger spring |
20 | GT 01.45.680 | Switch |
21 | GT 01.25.620 | Front handle |
22 | GT 01.34.001 | Front spring cable support |
| 23 | GT 01.37.729 | Cable assembly 50mm 3m |
GT 01.37.730 | Cable assembly 50mm 4m | |
GT 01.37.731 | Cable assembly 50mm 5m | |
| 24 | GT 01.32.001 | Nut |
25 | GT 01.34.002 | Back spring cable support |
26 | GT 01.41.001 | Gun plug housing |
27 | GT 01.63.002 | Wire connector |
28 | GT 01.32.003 | Central adaptor |
29 | GT 01.45.770 | Euro central adaptor |
30 | GT 01.53.001 | O-Ring |
31 | GT 01.32.004 | Coupling nut |
32 | Liner | |
