We have provided many kinds of submerged arc welding wire for long time and have win praise from foreign customers for its good quality.
◆ Product Introduction：
Product | Mechanical Properties of deposited metal | |||
AWS | Yield Strength /Mpa | Tensile Strength /Mpa | Elongation % | Impact Value J(0C) |
EL8 | 390 | 500 | 27.0 | 48/-20 |
EM12K | 415 | 510 | 29.0 | 56/20 |
EM12 | 400 | 500 | 28.0 | 58/-20 |
EH14 | 445 | 550 | 28.0 | 98/-40 |
EM13K | 425 | 520 | 29.0 | 76/-20 |
EA2 | 525 | 615 | 24.0 | 48/-20 |
EA3 | 555 | 635 | 23.0 | 47/20 |
EB2 | 500 | 595 | 23.0 | 53/-20 |
EB3 | 570 | 645 | 19.0 | 84/Normal Temp |
◆ Chemical Composition:
Product | C | Si | Mn | P | S | Cr | Ni | Mo | Cu | Ti | V |
EL8 | 0.06 | 0.13 | 0.58 | 0.012 | 0.011 | 0.02 | 0.03 | 0.05 | - | - | - |
EM12K | 0.07 | 0.25 | 1.14 | 0.016 | 0.015 | 0.03 | 0.02 | 0.05 | - | - | - |
EM12 | 0.06 | 0.10 | 1.27 | 0.013 | 0.009 | 0.02 | 0.03 | 0.05 | - | - | - |
EH14 | 0.11 | 0.08 | 1.85 | 0.013 | 0.009 | 0.02 | 0.03 | 0.06 | - | - | - |
EM13K | 0.09 | 0.65 | 1.05 | 0.013 | 0.011 | 0.02 | 0.02 | 0.06 | - | - | - |
EA2 | 0.09 | 0.24 | 0.98 | 0.014 | 0.008 | 0.03 | 0.08 | 0.40 | 0.009 | 0.10 | - |
EA3 | 0.07 | 0.26 | 1.75 | 0.010 | 0.009 | 0.03 | 0.05 | 0.56 | 0.10 | 0.12 | |
EB2 | 0.08 | 0.26 | 0.65 | 0.014 | 0.009 | 0.95 | 0.25 | 0.55 | 0.15 | ||
EB3 | 0.09 | 0.27 | 0.56 | 0.012 | 0.011 | 2.3 | 1.02 |
Item | Size | Packing Available |

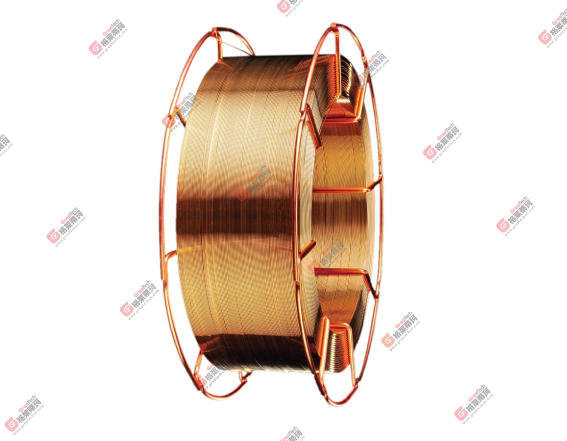

Spool | 1.6-2.0mm | 20kgs/D270 |

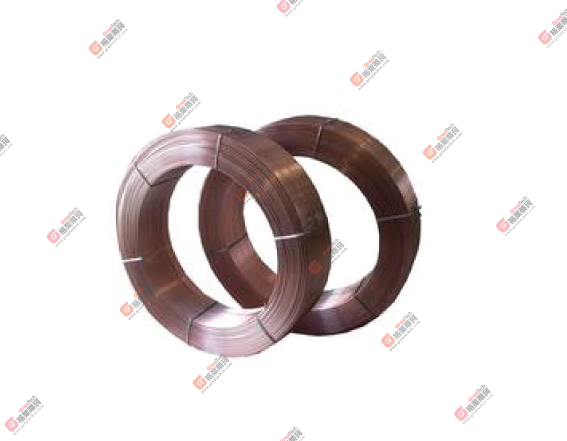

Coil | 2.4-5.0mm | 25kg/coil, 100/kg/coil, 250kg/coil, 350kg/coil |
