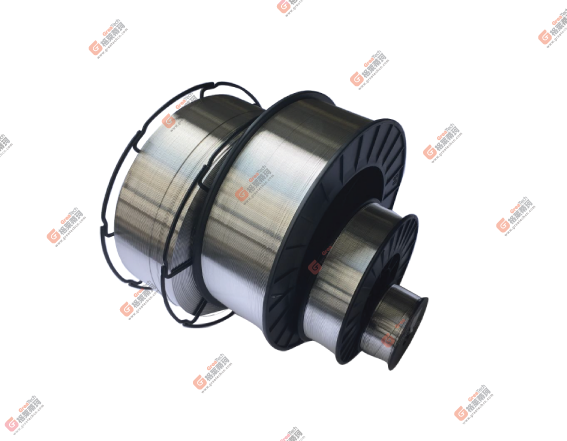

High quality aluminum welding wires, all wires including MIG and TIG are shaved with shine and smooth surface, MIG wires well controlled cast and helix can ensure the good feadability. A wide range of aluminum welding wires, and a variety of size and packing options.
◆ Product Introduction：
AWS/SFA | EN Code | Descriptions |
ER5356 | AlMg5 | ER5356 (AIMg5) is a 5% Mg aluminum filler metal for MIG or TIG welding. The weld deposit owns better corrosion resistance when exposed to salt water. Mostly used for base metals 5050, 5052, 5083, 5356, 5454 and 5456 etc. |
ER4043 | AlSi5 | ER4043(AISi5) is a 5% Si aluminum filler metal for MIG or TIG welding. It is recommended for welding 3003, 3004, 5052, 6061, 6063, and casing alloys 43, 355, 356, and 214 etc. |
ER5183 | AlMg4.5Mn | ER5183 (AIMg 4.5Mn) is aluminum filler metal containing alloy elements 4.3-5.0% Mg, 0.5-1.0% Mn as well as chromium and titanium for MIG or TIG welding. Mostly used for base metals like 5083, 5086 and 5456 to similar base metals or to 5052, 5652 and 5056. |
ER4047 | AlSi12 | ER4047 (AlSi12) is an aluminum filler metal which contains approximately 12% silicon. It is commonly used not only in MIG or TIG applications, but also as a general purpose brazing alloy providing a free-flowing filler metal and good corrosion resistance. |
ER1100 | Al>=99.0% | ER1100(Al99.5) is a 99% aluminum filler metal for MIG or TIG welding processes. It is commonly used for architectural and decorative applications, furniture, piping, deep drawing applications and spun hollow ware. Common applications would include base metal 1100, 3003, Aic. 3003 to similar base metals or to 1060, 1070, 1080 and 1350 |
ER5556 | AlMg5Mn | ER5556(AlMg5Mn) is an aluminum filler metal that contains more Mn and Zn with slightly more Mg than ER5356. It gives ER5556 good ductility and improved crack resistance when used for MIG or TIG welding. Commonly used on base metals 5154, 5254, 5454 and 5456. |
◆ Chemical Composition:
Model | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Be | Others | Al | |
Single | Sum | |||||||||||
ER5356 | 0.25 | 0.40 | 0.10 | 0.05-0.20 | 4.5-5.5 | 0.05-0.20 | 0.10 | 0.06-0.20 | 0.0003 | 0.05 | 0.15 | Rem. |
ER4043 | 4.5-6.0 | 0.80 | 030 | 0.05 | 0.05 | - | 0.10 | 0.20 | 0.0003 | 0.05 | 0.15 | Rem. |
ER4047 | 11.0-13.0 | 0.80 | 0.30 | 0.15 | 0.10 | - | 0.20 | 0.15 | 0.0003 | 0.05 | 0.15 | Rem. |
ER5183 | 0.40 | 0.40 | 0.10 | 0.50-1.00 | 4.3-5.2 | 0.05-0.25 | 0.25 | 0.15 | 0.0003 | 0.05 | 0.15 | Rem. |
ER1100 | 0.25 | 0.30 | 0.05-0.15 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.0003 | 0.05 | 0.15 | Rem. |
ER5556 | 0.25 | 0.40 | 0.10 | 0.60-1.00 | 4.7-5.5 | 0.05-0.20 | 0.20 | 0.05-0.20 | 0.0003 | 0.05 | 0.15 | Rem. |
Item | Size | Packing Available |
MIG | 0.8-1.6mm | 0.45 or 0.5kg/D100, 1Kg/D200, 6kg/D270, 7kg/D270, 6kg/D300, 7kg/D300, 7Kg/S300 |

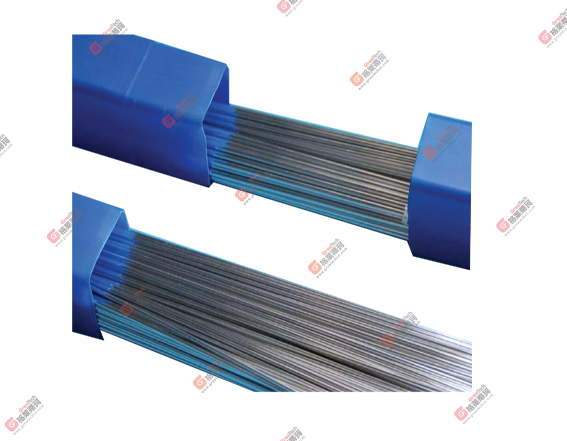

TIG | 1.6-4.0mm | 5kg/plastic tube, 5kg/carton box, 10kg/carton box |
