We provide a big variety of solid steel welding wires , includes ER70S-2，ER80S-G,ER90S-G,ER100S-G,ER110S-G etc. High quality, multi-options of the packing.
◆ Product Introduction：
Product | Chemical Composition | |||||||||||||
AWS | C | Si | Mn | P | S | Cr | Ni | Mo | V | Ti | Zr | Al | Cu | |
ER70S-2 | ≤0.07 | 0.4-0.7 | 0.9-1.4 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | 0.05-0.15 | 0.02-0.12 | 0.05-0.15 | ≤0.5 | |
ER70S-3 (SG1) | 0.06-0.15 | 0.45-0.75 | 0.9-1.4 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | ≤0.5 | ||||
ER70S-4 | 0.06-0.15 | 0.65-0.85 | 1.0-1.5 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | ≤0.5 | ||||
ER70S-6 （SG2） | 0.06-0.15 | 0.80-1.15 | 1.4-1.85 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | ≤0.5 | ||||
ER70S-6（SG3） | 0.06-0.14 | 0.8-1.2 | 1.6-1.9 | ≤0.025 | ≤0.025 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.03 | ≤0.15
| ≤0.02 | ≤0.35 | ||
ER70S-G | ≤0.15 | 0.55-1.1 | 1.4-1.9 | ≤0.025 | ≤0.025 | ≤0.3 | ≤0.1 | ≤0.5 | ||||||
ER80S-B2 | 0.07-0.12 | 0.4-0.7 | 0.4-0.7 | ≤0.025 | ≤0.025 | 1.2-1.5 | ≤0.20 | 0.4- 0.65 | ≤0.35 | |||||
ER80S-G | 0.06-0.1 | 0.6-0.9 | 1.20-1.70 | ≤0.025 | ≤0.025 | 0.9-1.2 | ≤0.25 | 0.45-0.65 | ≤0.35 | |||||
ER80S/90S-D2 | 0.07-0.12 | 0.5-0.8 | 1.6-2.1 | ≤0.025 | ≤0.025 | ≤0.15 | 0.4- 0.6 | ≤0.5 | ||||||
ER80S/90S-G | ≤0.12 | 0.4-0.8 | 1.55-19 | ≤0.025 | ≤0.025 | 0.2- 0.5 | ≤0.2 | ≤0.5 | ||||||
ER80S/90S-G | 0.07-0.12 | 0.5-0.8 | 1.6-2.1 | ≤0.025 | ≤0.025 | ≤0.15
| 0.4- 0.6 | ≤0.35 | ||||||
ER90S-G | ≤0.10 | 0.2-1.0 | 1-1.8 | ≤0.020 | ≤0.015 | 0.25-0.6 | 0.1- 0.5 | ≤0.12 | ≤0.35 | |||||
ER80S-Ni1 | ≤0.12 | 0.4--0.8 | ≤1.25 | ≤0.025 | ≤0.025 | ≤0.15 | 0.8--1.1 | ≤0.35 | ≤0.05 | ≤0.35 | ||||
ER90S-G | ≤0.10 | 0.4-0.8 | 1.6-2.1 | ≤0.025 | ≤0.025 | 0.2-0.7 | ≤0.2 | ≤0.3 | ||||||
ER80S-G | ≤0.10 | 0.55-1.1 | 1.6--1.9 | ≤0.015 | ≤0.015 | ≤0.3 | ≤0.01 | |||||||
ER80S-G | 0.06-0.1 | 0.6-0.9 | 1.2-1.6 | ≤0.025 | ≤0.025 | 1-1.3 | ≤0.25 | 0.5- 0.7 | 0.2-0.4 | ≤0.35 | ||||
ER100S-G | ≤0.12 | 0.45-0.95 | 1.25- 1.80 | ≤0.025 | ≤0.015 | 1-1.6 | ≤0.6 | ≤0.3 | ≤0.5 | |||||
ER100S-G | ≤0.10 | 0.4-0.8 | 1.25- 1.80 | ≤0.02 | ≤0.02 | 0.5-1.5 | 0.2-0.55 | ≤0.5 | ||||||
ER100S-G | ≤0.12 | 0.30-1.2 | 1.20- 2.00 | ≤0.020 | ≤0.015 | 0.1-0.6 | 0.6-1.6 | ≤0.2 | 0.1-0.5 | |||||
ER100S-G | ≤0.12 | 0.30-1.2 | 1.20- 2.00 | ≤0.020 | ≤0.015 | 0.1-0.6 | 0.6-1.6 | 0.1- 0.5 | ≤0.35 | |||||
ER100S-G | ≤ 0.12 | 0.45-0.95 | 1.25- 1.8 | ≤0.025 | ≤0. 025 | 0.6-1.6 | 0.1 -0.2 | 0.1-0.2 | ≤0.5 | |||||
ER110S-G | ≤ 0.09 | 0.40-0.8 | 1.25- 1.8 | ≤0.02 | ≤0.02 | 1.9-2.6 | 0.2--0.55 | ≤0.2 | ||||||
ER110S-G | ≤ 0.12 | 0.50-0.8 | 1.6-2.1 | ≤0.015 | ≤0.018 | 0.15-0.4 | 1.3-1.9 | 0.3-0.65 | ≤0.03 | 0.03 | 0.03 | ≤0.3 | ||
ER110S-G | ≤0.12 | 0.30-1.2 | 1.30-2 | ≤0.02 | ≤0.015 | 0.2-0.6 | 1-2 | 0.09-0.25 | 0.1- 0.55 | |||||
ITEM | Size | Packing Available |

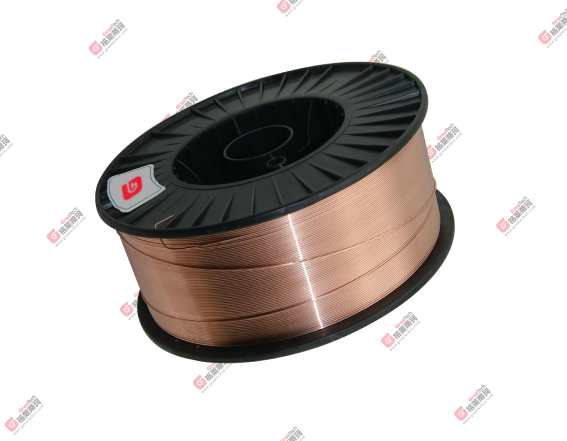

MIG | 0.8-1.6mm | 1kg/D100, 5kg/D200, 15kg/D270, 15kg/D30015kg/K300, 15kg/S300 Pail Packing:100kg/drum, 250kg/drum, 350kg/drum |

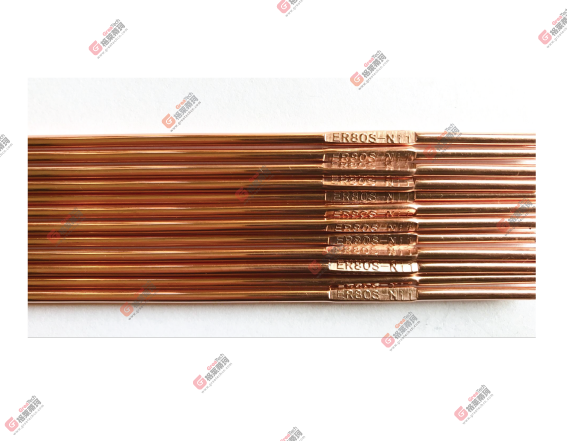

TIG | 1.2-4.0mm | Length: 1000mm. Can be stamped. 5kg/tube |
