IGBT Inverter MIG Welding Machine
IGBT Inverter MIG Welding Machine
◆IGBT inverter technology
◆Over heating and current prorection
◆Two digital dispaly windows
◆Spool gun socket(option)
Main technical data：
Type | MIG-500 |
Power Supply | AC380V×3 50/60Hz |
Rated Input Power | 24.4KVA |
Range of Current regulation | 60-500A |
Range of Voltage regulation | 17-50V |
Duty Circle | 60% |
No-load Voltage | 81V |
Wire Feeder | Separated |
For wire Diameter | 0.8-1.6mm |
Efficiency (%) | 89 |
Cooling Method | Air Cooling |
Wire Feeding Speed(m/min) | 2~18 |
Weight of machine | 53kg |
Size: L*W*H | 640×310×570mm |

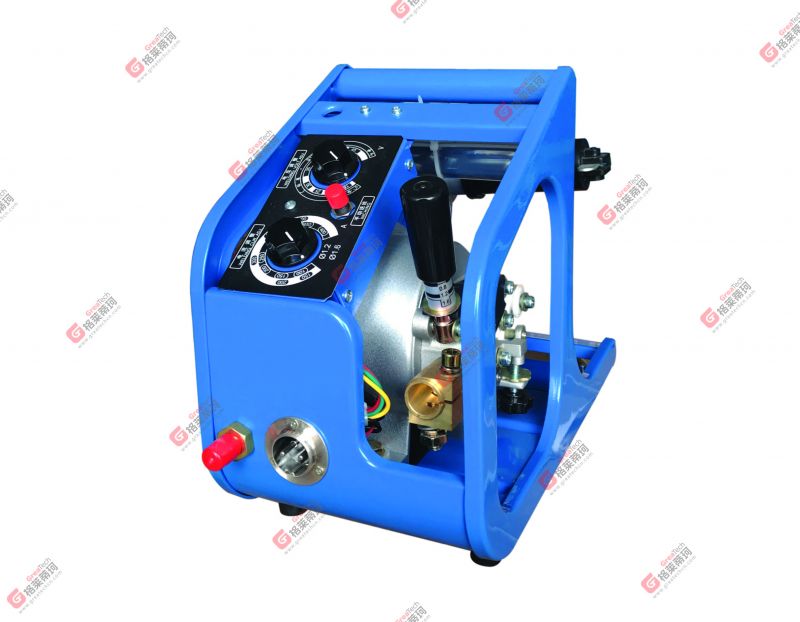

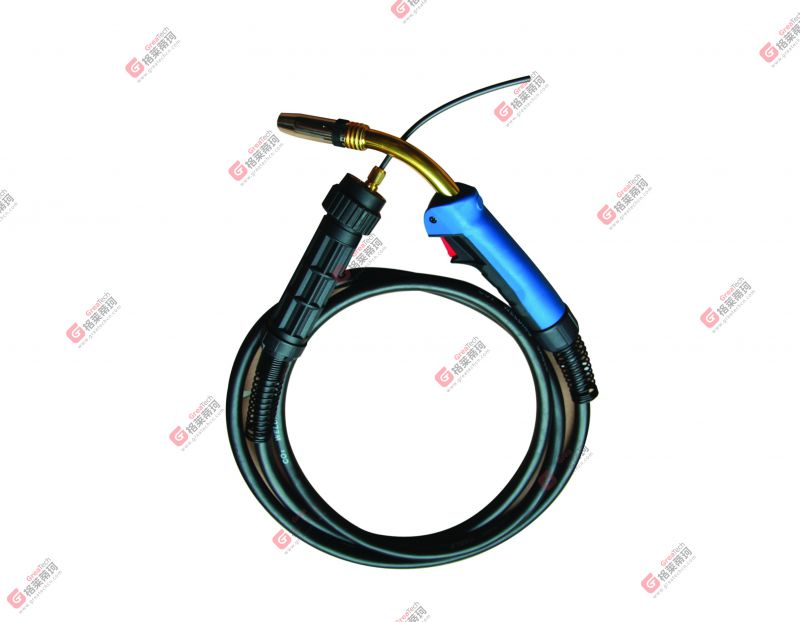

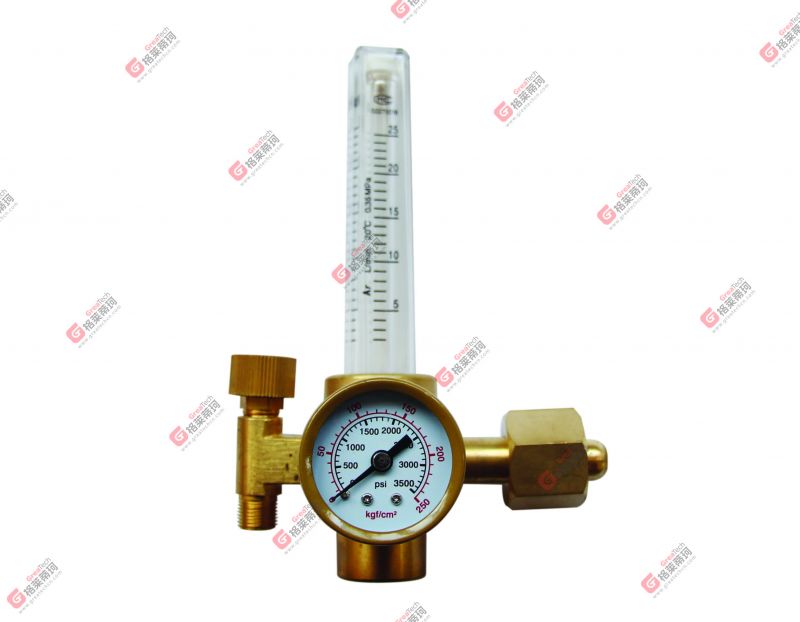

Accessories include: | MIG Torch 3M, Earth clamp 3M, Regulator,Wire Feeder |
