Pic | Order No | Model No | Sizes（mm） | Cutting Thickness（mm） | Oxygen Pressure（mpa） | Acetylene Pressure （mpa) |

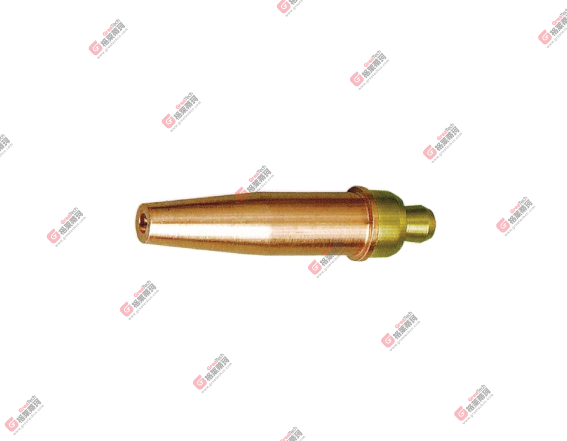

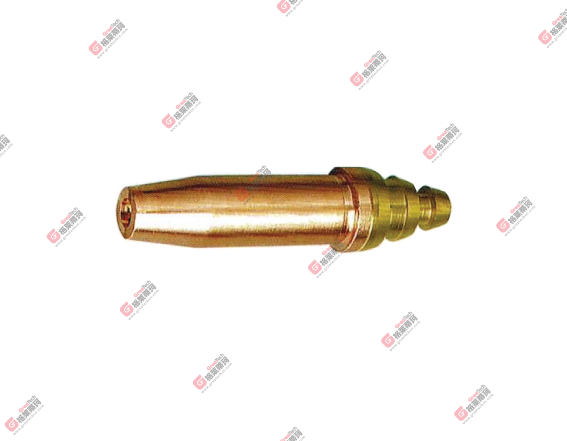

| 1-101 | 000 | 0.7 | 1-3 | 0.15-0.2 | 0.035 |
00 | 0.8 | 3-6 | 0.15-0.2 | 0.035 | ||
0 | 1 | 6-10 | 0.2-0.25 | 0.035 | ||
1 | 1.2 | 10-20 | 0.2-0.25 | 0.035 | ||
2 | 1.5 | 20-40 | 0.25-0.32 | 0.045 | ||
3 | 1.8 | 40-60 | 0.25-0.35 | 0.06 | ||
4 | 2.1 | 60-80 | 0.32-0.4 | 0.07 | ||
5 | 2.5 | 80-125 | 0.32-0.4 | 0.085 | ||
6 | 3 | 125-200 | 0.32-0.56 | 0.095 | ||
7 | 3.5 | 200-250 | 0.32-0.56 | 0.1 | ||
8 | 4 | 250-300 | 0.4-0.6 | 0.1 | ||

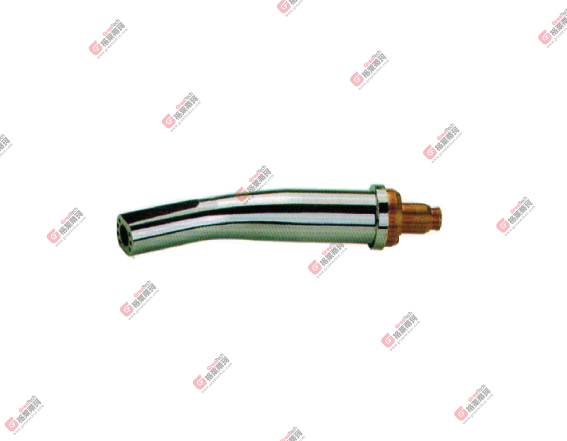

| 1-101 30° | 0 | 1 | 6-10 | 0.2-0.25 | 0.035 |
1 | 1.2 | 10-20 | 0.2-0.25 | 0.035 | ||
2 | 1.5 | 20-40 | 0.25-0.32 | 0.045 | ||

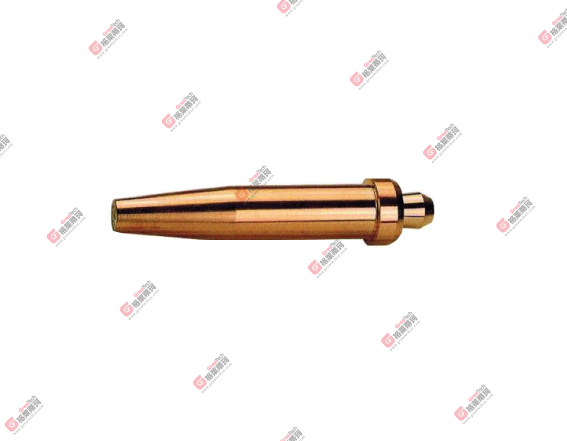

| 3-101 | 000 | 0.7 | 1-3 | 0.15-0.2 | 0.035 |
00 | 0.8 | 3-6 | 0.15-0.2 | 0.035 | ||
0 | 1 | 6-10 | 0.2-0.25 | 0.035 | ||
1 | 1.2 | 10-20 | 0.2-0.25 | 0.035 | ||
2 | 1.5 | 20-40 | 0.25-0.32 | 0.045 | ||
3 | 1.8 | 40-60 | 0.25-0.35 | 0.06 | ||
4 | 2.1 | 60-80 | 0.32-0.4 | 0.07 | ||
5 | 2.5 | 80-125 | 0.32-0.4 | 0.085 | ||

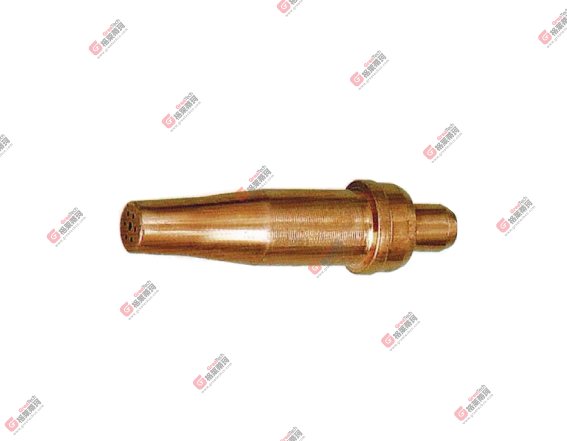

| 1-118 | 0 | 1.2 | 1.8*5 | 25/30 | 3/5 |
2 | 1.5 | 1.5*5 | 35/40 | 3/7 | ||
4 | 1.8 | 2.5*5 | 40/50 | 5/7 | ||
6 | 2.1 | 2.8*10 | 45/55 | 7/13 | ||
8 | 2.4 | 3.2*10 | 45/55 | 10/15 | ||
| 1-108 | 0 | 1 | 6-10 | 25/30 | 3/5 |
1 | 1.2 | 10-20 | 30/35 | 3/5 | ||
2 | 1.5 | 20-40 | 35/40 | 3/7 | ||
3 | 1.8 | 40-60 | 40/45 | 4/9 | ||
4 | 2.1 | 60-80 | 40/50 | 5/10 | ||
| 1-303MP | 0 | 1.0 | 6-10 | 25/30 | 3/5 |
1 | 1.2 | 10-20 | 30/35 | 4/6 | ||
2 | 1.5 | 20-40 | 35/40 | 4/8 | ||
3 | 1.8 | 40-60 | 40/45 | 5/9 | ||
4 | 2.1 | 60-80 | 40/50 | 6/10 | ||
5 | 2.5 | 80-125 | 50/55 | 8/12 | ||
6 | 3 | 125-300 | 55/65 | 10/15 |
