Contact Tip | Description | ØA | Part No. |

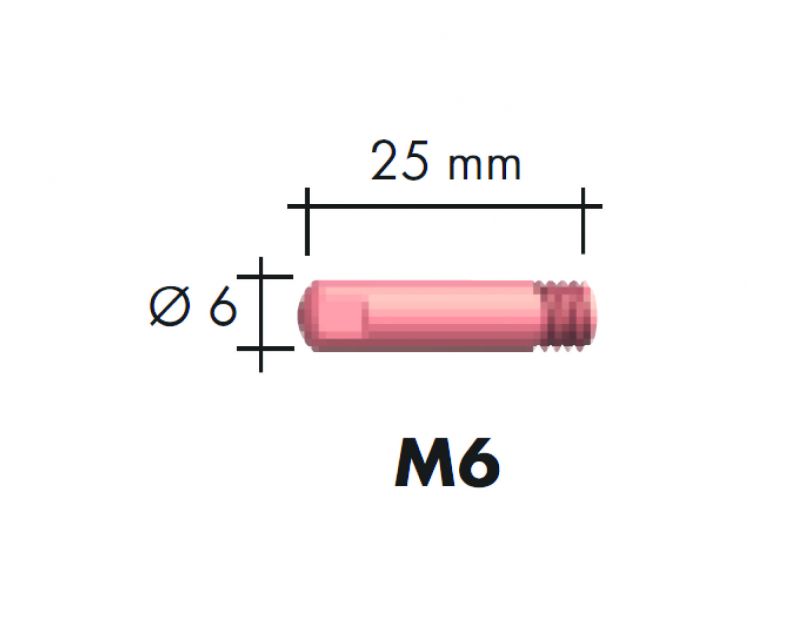

| M6×25 E-Cu | Ø0.6 | GT 140.0008 |
Ø0.8 | GT 140.0059 | ||
Ø1.0 | GT 140.0253 | ||
M6×25 E-Cu For Al | Ø0.8 | GT 141.0002 | |
Ø1.0 | GT 141.0007 | ||
M6×25 CuCrZr | Ø0.6 | GT 140.0855 | |
Ø0.8 | GT 140.0062 | ||
Ø1.0 | GT 140.0256 |
Contact Tip | Description | ØA | Part No. |

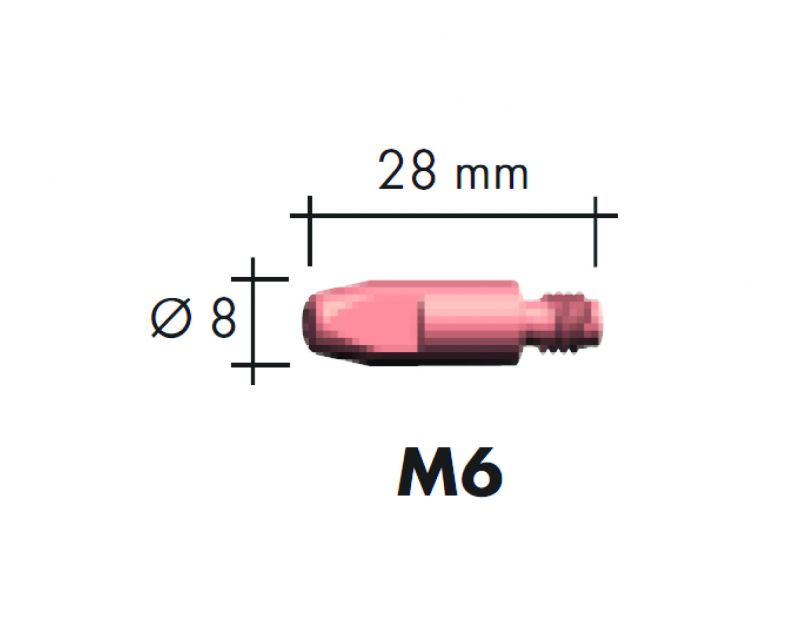

| M6×28 E-Cu | Ø0.8 | GT 140.0051 |
Ø1.0 | GT 140.0242 | ||
Ø1.2 | GT 140.0379 | ||
Ø1.6 | GT 140.0555 | ||
M6×28 E-Cu For Al | Ø0.8 | GT 141.0001 | |
Ø1.0 | GT 141.0006 | ||
Ø1.2 | GT 141.0010 | ||
Ø1.6 | GT 141.0020 | ||
M6×28 CuCrZr | Ø0.8 | GT 140.0054 | |
Ø1.0 | GT 140.0245 | ||
Ø1.2 | GT 140.0382 | ||
Ø1.6 | GT 140.0558 |
Contact Tip | Description | ØA | Part No. |

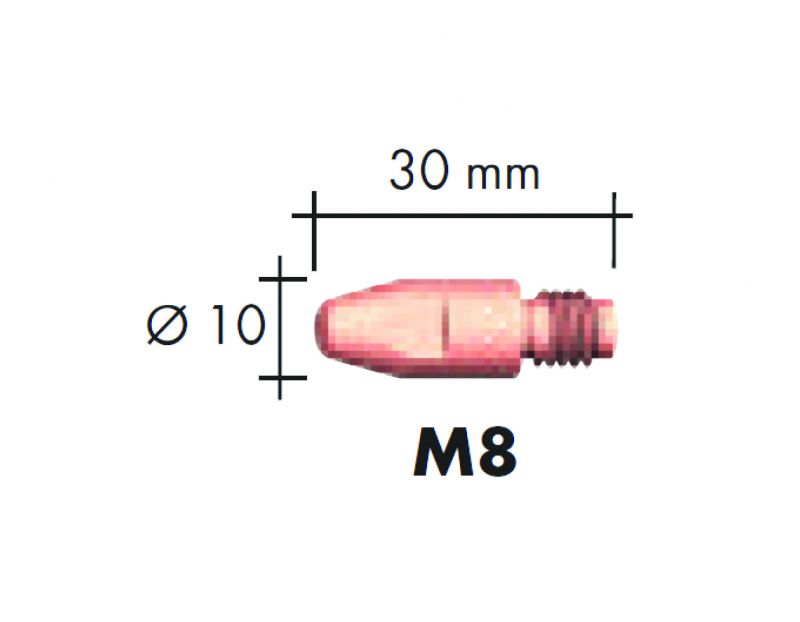

| M8×30 E-Cu | Ø0.8 | GT 140.0114 |
Ø1.0 | GT 140.0313 | ||
Ø1.2 | GT 140.0442 | ||
Ø1.6 | GT 140.0587 | ||
M8×30 E-Cu For Al | Ø0.8 | GT 141.0003 | |
Ø1.0 | GT 141.0008 | ||
Ø1.2 | GT 141.0015 | ||
Ø1.6 | GT 141.0022 | ||
M8×30 CuCrZr | Ø0.8 | GT 140.0117 | |
Ø1.0 | GT 140.0316 | ||
Ø1.2 | GT 140.0445 | ||
Ø1.6 | GT 140.0590 |
