Technical Data
◆Rating: 500A/550A CO2
450A/500A Mixed Gases
◆Duty Cycle: 100%
◆Wire Size: 1.0～1.6mm
A variety of designs of torch handle are available for customer’s option, please refer BINZEL TYPE MIG TORCH HANDLES for more details.
Model:
Description | Part No. | ||
GT-501D Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 034.0492 | GT 034.0493 | GT 034.0494 | |

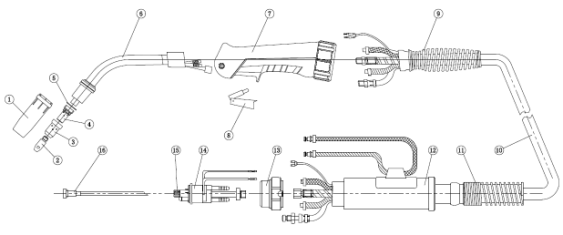

Compontents
Pos. | Part No. | Description |

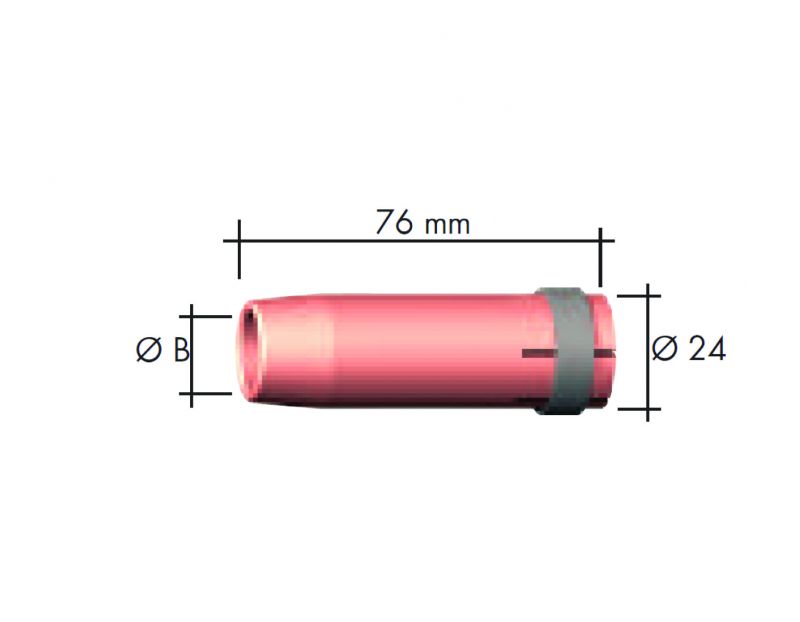

1 | Gas nozzle | |

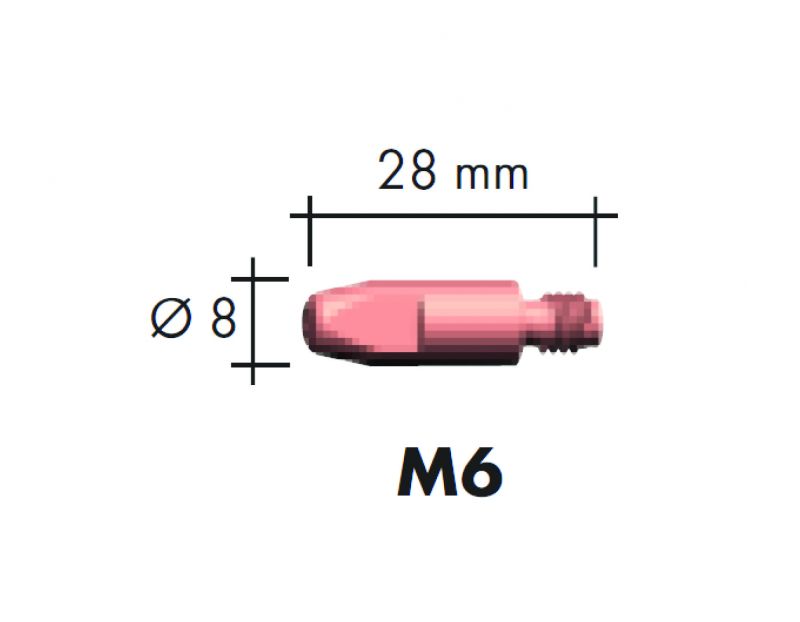

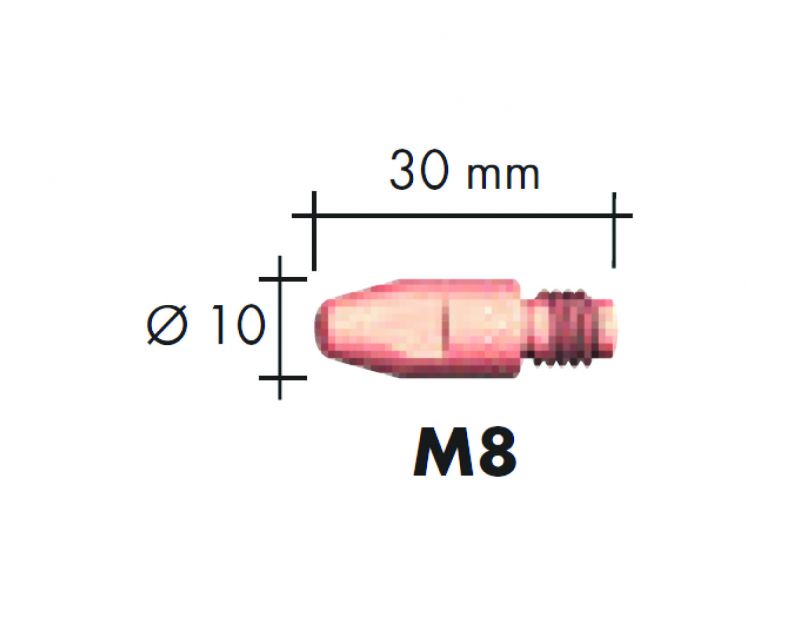

2 | Contact tip | |

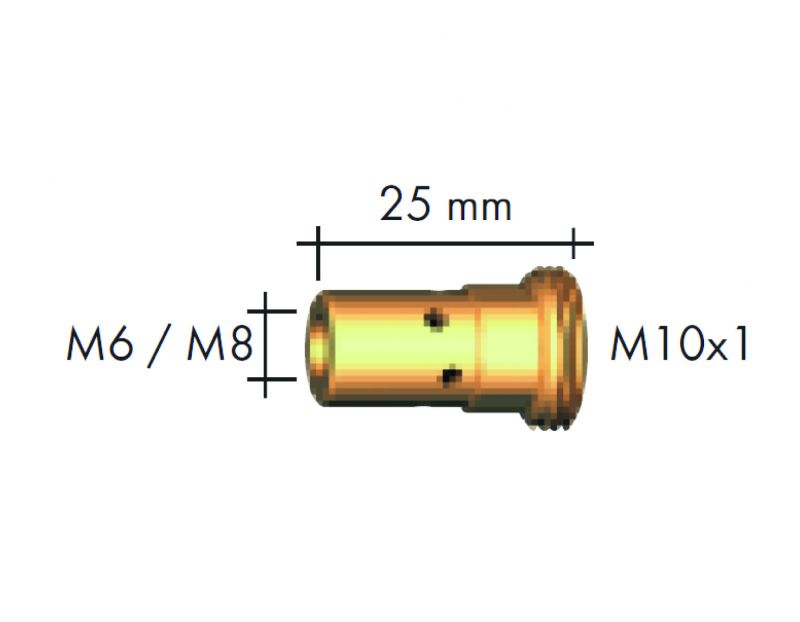

3 | Contact tip holder | |
4 | GT 030.0190 | Gas Diffuser |
5 | GT 030.0019 | Insulator |
6 | GT 034.0001 | Swan neck GT 501D 50° bent |
7 | GT 180.0076 | Front handle |
8 | GT 185.0031 | Trigger |
9 | GT 500.0225 | Cable support spring |
10 | GT 160.0128 | CO2 Welding cable assy 3M |
GT 160.0142 | CO2 Welding cable assy 4M | |
GT 160.0155 | CO2 Welding cable assy 5M | |
11 | GT 500.0233 | Cable support spring |
12 | GT 501.2379 | Cable Support machine side |
13 | GT 500.0213 | Adaptor nut M33×2 |
14 | GT 501.0015 | Central adaptor WZ-2 |
15 | GT 501.0082 | Coupling nut M10×1 |
16 | Liner |
