Technical Data
◆Rating: 230A CO2
200A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.2mm
A variety of designs of torch handle are available for customer’s option, please refer BINZEL TYPE MIG TORCH HANDLES for more details.
Model:
Description | Part No. | ||
GT-25AK Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 004.0312 | GT 004.0313 | GT 004.0314 | |

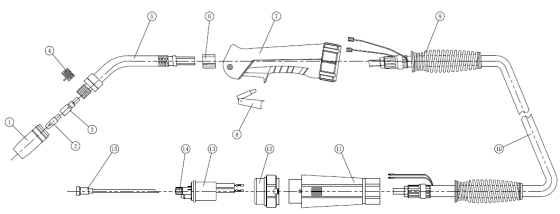

Compontents
Pos. | Part No. | Description |

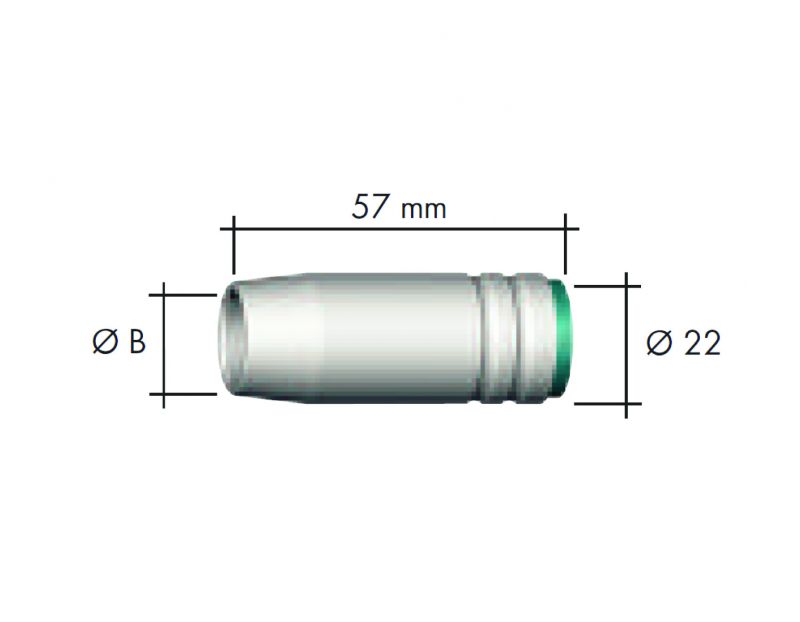

1 | Gas nozzle | |
2 | Contact tip | |

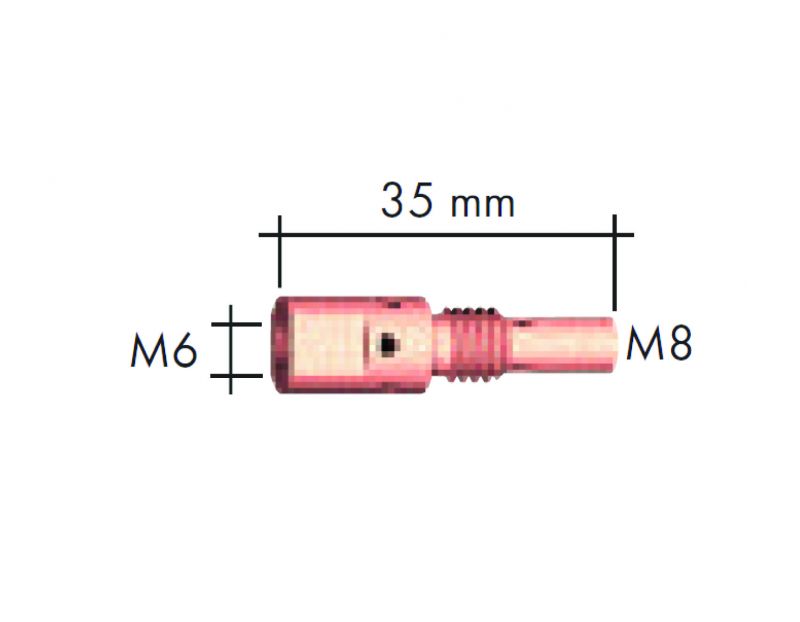

3 | GT 142.0001 | Contact tip holder |

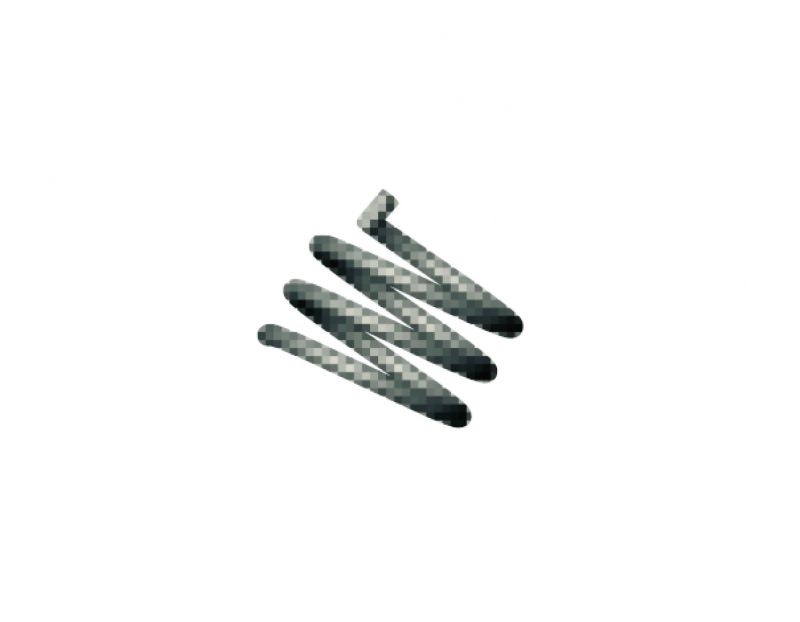

4 | GT 003.0013 | Nozzle spring |
5 | GT 004.0012 | Swan neck GT 25AK 50° bent |
6 | GT 400.1076 | Torch body plastic |
7 | GT 180.0076 | Front handle |
8 | GT 185.0031 | Trigger |
9 | GT 500.0225 | Cable support spring |
10 | GT 160.0128 | CO2 Welding cable assy 3M |
GT 160.0142 | CO2 Welding cable assy 4M | |
GT 160.0155 | CO2 Welding cable assy 5M | |
11 | GT 501.2248 | Cable Support machine side |
12 | GT 500.0213 | Adaptor nut M33×2 |
13 | GT 501.0003 | Central adaptor KZ-2 |
14 | GT 501.0082 | Coupling nut M10×1 |
15 | Liner |
