Technical Data
◆Rating: 180A CO2
150A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.6～1.0mm
A variety of designs of torch handle are available for customer’s option, please refer BINZEL TYPE MIG TORCH HANDLES for more details.
Model:
Description | Part No. | ||

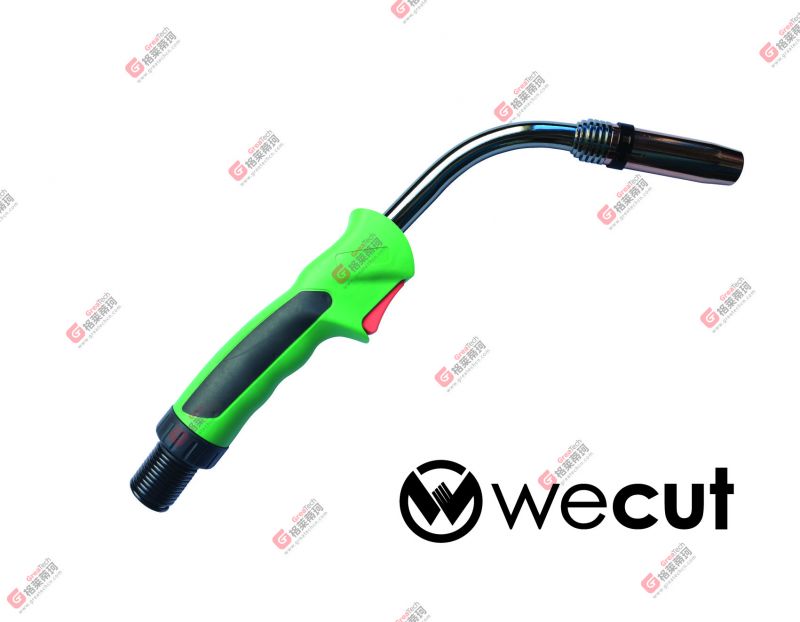

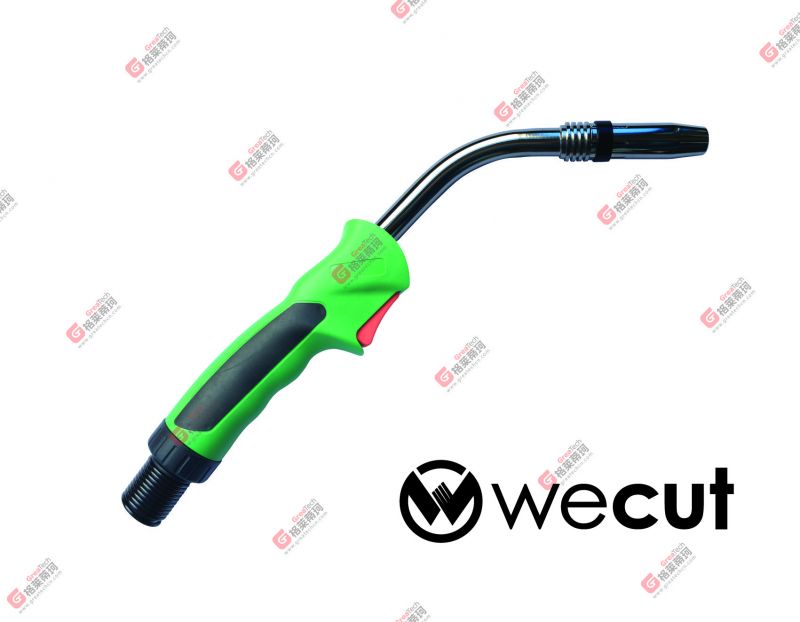

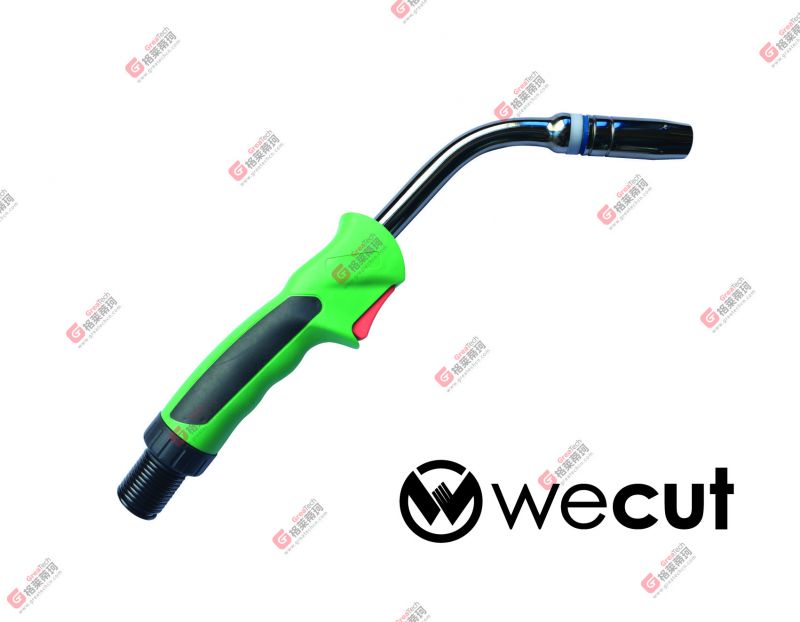

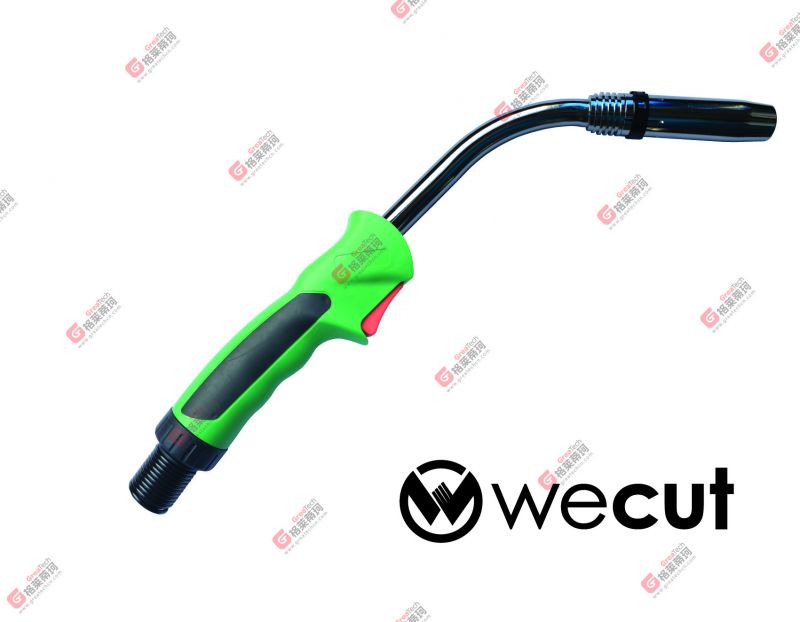

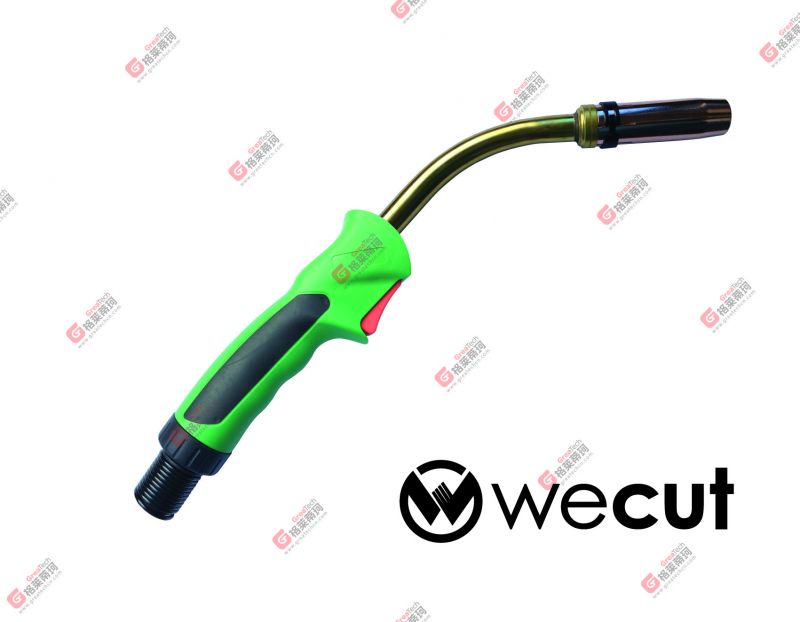

GT-15AK Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT 002.0449 | GT 002.0450 | GT 002.0451 | |

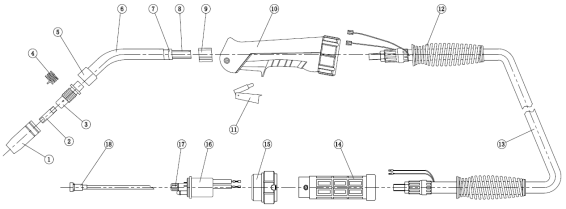

Compontents
Pos. | Part No. | Description |

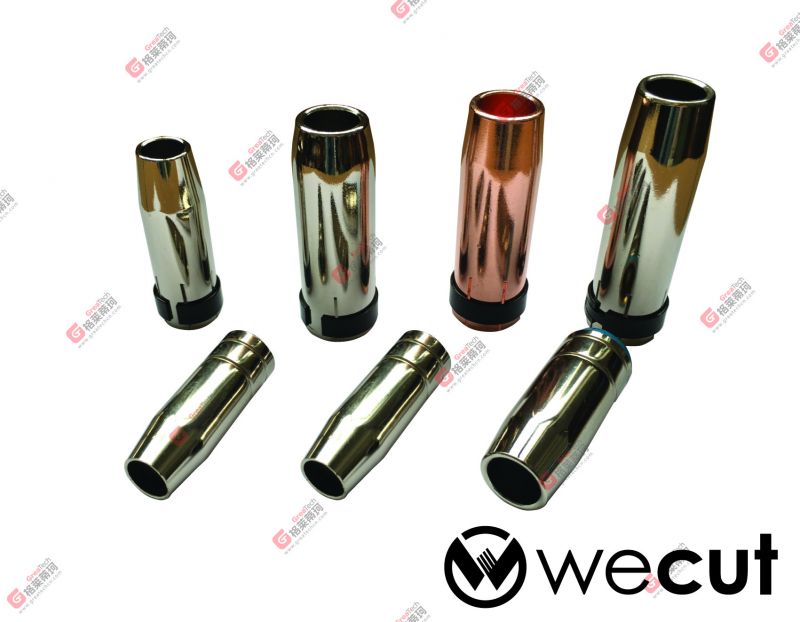

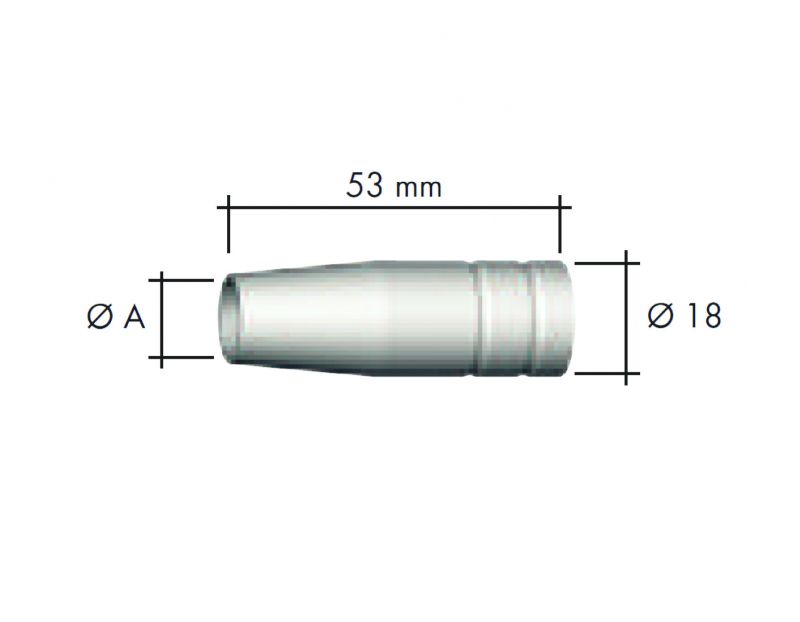

1 | Gas nozzle | |

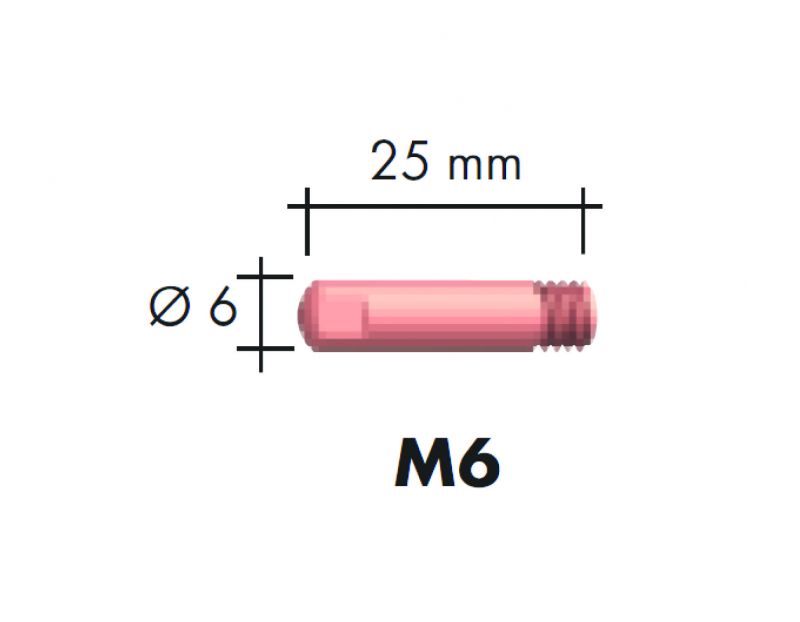

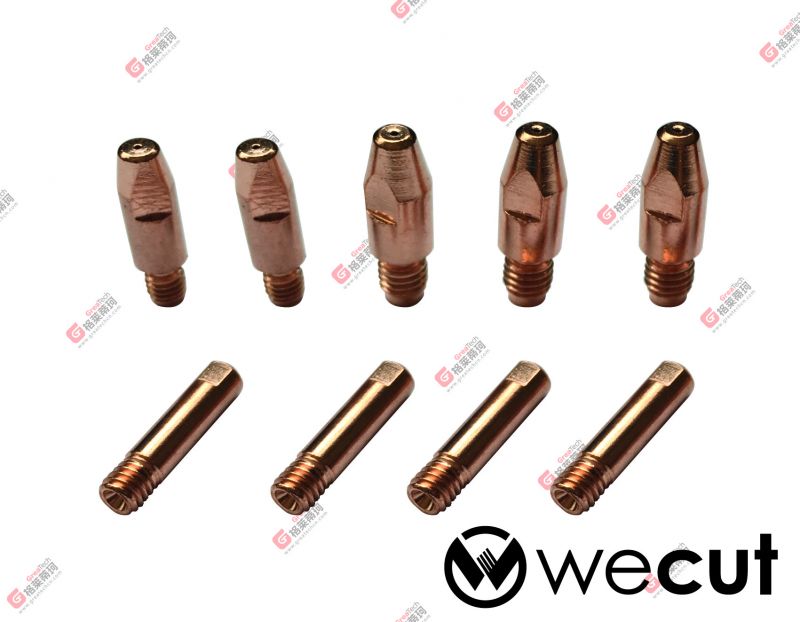

2 | Contact tip | |

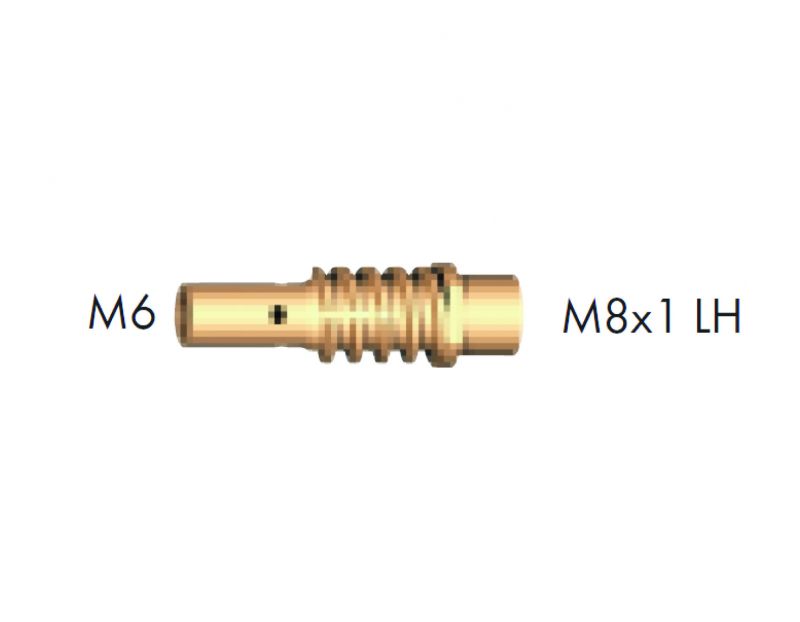

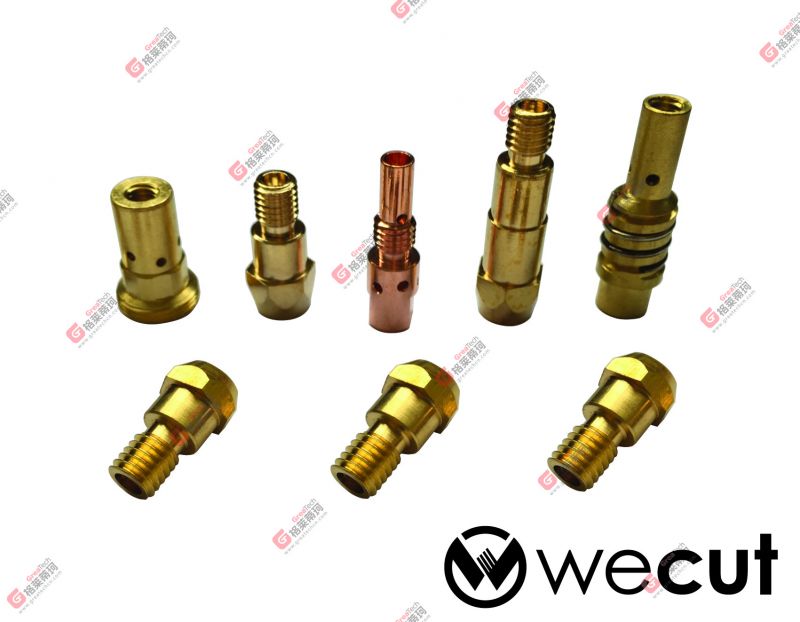

3 | GT 002.0078 | Nozzle holder |

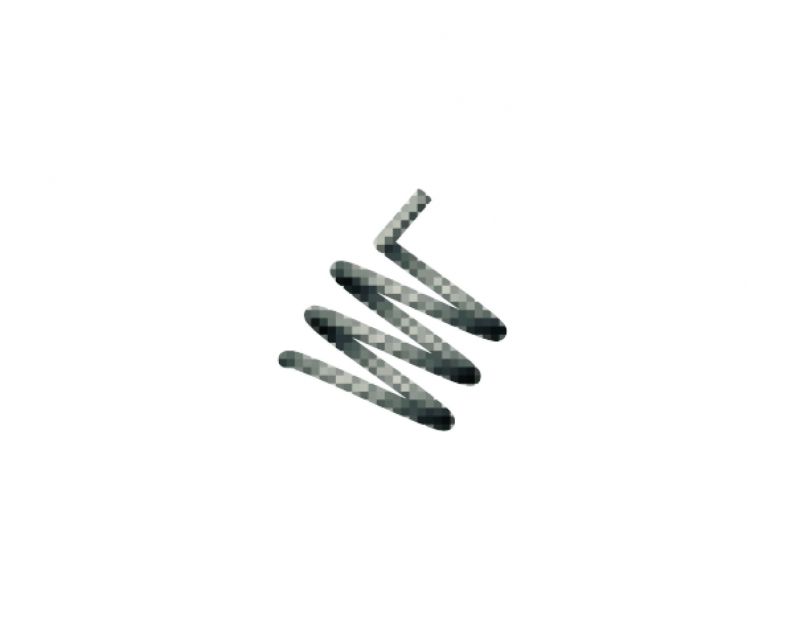

4 | GT 002.0058 | Nozzle spring |

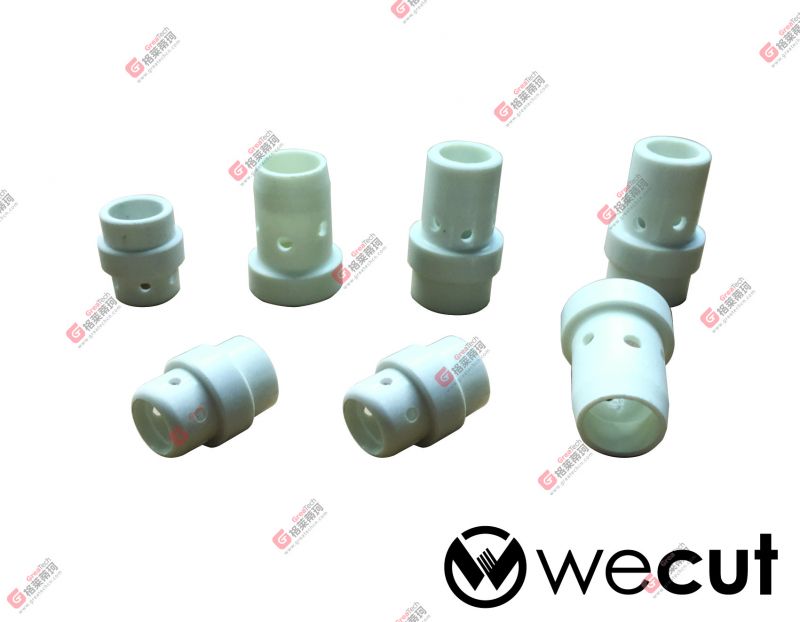

5 | GT 002.0050 | Head insulator |

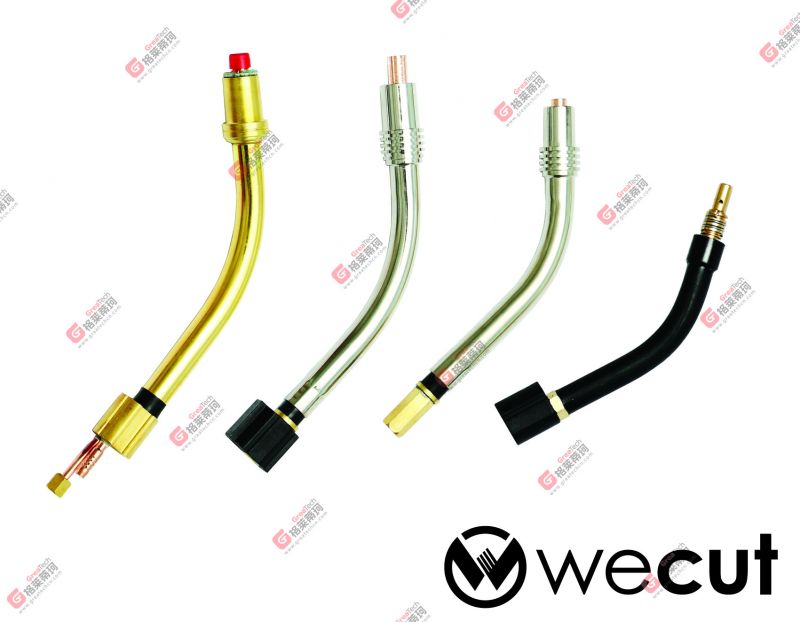

6 | GT 002.0009 | Swan neck GT 15AK 50° bent |
7 | GT 001.0909 | Hexagon nut M10×1 |
8 | GT 400.0114 | Torch body brass |
9 | GT 400.1076 | Torch body plastic |
10 | GT 180.0076 | Front handle |
11 | GT 185.0031 | Trigger |
12 | GT 500.0225 | Cable support spring |
13 | GT 160.0065 | CO2 Welding cable assy 3M |
GT 160.0078 | CO2 Welding cable assy 4M | |
GT 160.0091 | CO2 Welding cable assy 5M | |
14 | GT 501.2248 | Cable Support machine side |
15 | GT 500.0213 | Adaptor nut M33×2 |
16 | GT 501.0003 | Central adaptor KZ-2 |
17 | GT 501.0082 | Coupling nut M10×1 |

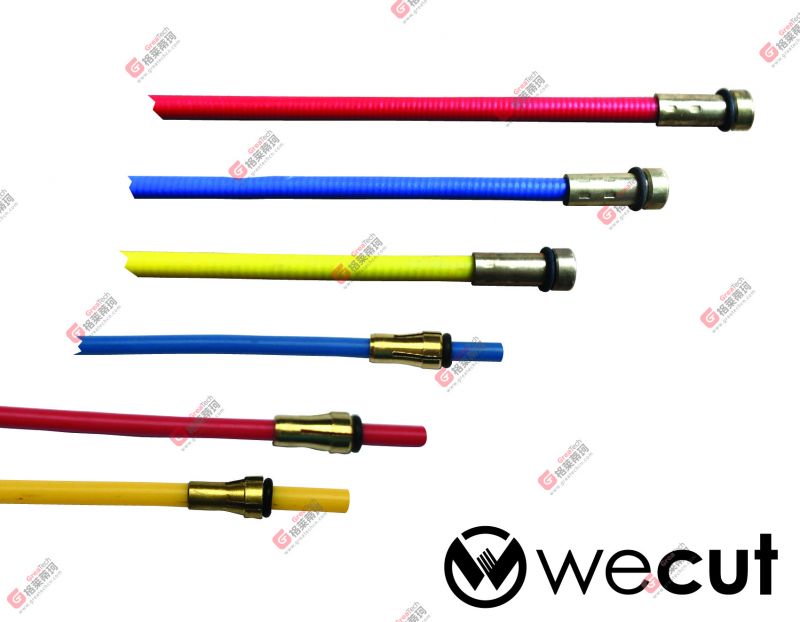

18 | Liner |
