Technical Data
◆Rating: 300A CO2
200A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.2mm
Model | |||
Description | Part No. | ||
GT-BNQ300 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT BNQ300-3 | GT BNDQ300-4 | GT BNQ300-5 | |
GT-BNQ300B Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT BNQ300B-3 | GT BNQ300B-4 | GT BNQ300B-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | NS-5818C | Copper nozzle 5/8" |
NS-1218C | Copper nozzle 1/2" | |
NS-5818B | Brass nozzle 5/8" | |
NS-1218B | Brass nozzle 1/2" | |
| C | 4394 | Copper nozzle 1/2" |
4393 | Copper nozzle 5/8" | |
4392 | Brass nozzle 1/2" | |
4391 | Brass nozzle 5/8" | |
Contact Tips | ||
Pos. | Part No. | Description |
B | TT-030 | Contact tip 0.030"/0.8mm ECu |
TT-035 | Contact tip 0.035"/0.9mm ECu | |
TT-039 | Contact tip 0.039"/1.0mm ECu | |
TT-045 | Contact tip 0.045"/1.2mm ECu | |
D | 7488 | Contact tip 0.030"/0.8mm ECu |
7489 | Contact tip 0.035"/0.9mm ECu | |
7496 | Contact tip 0.039"/1.0mm ECu | |
7490 | Contact tip 0.045"/1.2mm ECu | |
Liners | ||
Pos. | Part No. | Description |
E | 43115 | Steel liner 0.035"-0.045"/0.9-1.2mm 15ft/4.5m |
43115T | Teflon liner 0.035"-0.045"/0.9-1.2mm 15ft/4.5m | |

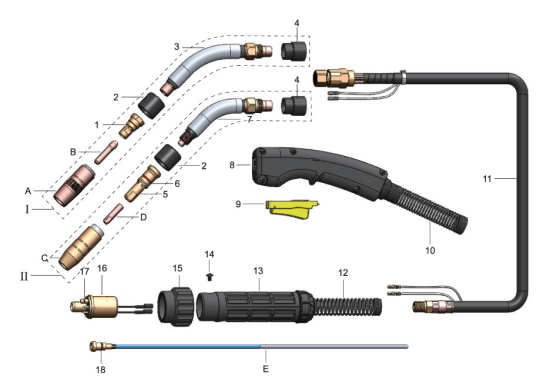

Compontents | ||
Pos. | Part No. | Description |
1 | DS-1 | Gas diffuser |
2 | 4323 | Rubber cap |
3 | QT3-45 | Swan neck 45° |
| 4 | 4780 | Insulating nut |
5 | 4335 | Gas diffuser |
6 | Q512518S | O-Ring 12.5×1.8 |
7 | 4786 | Swan neck 45° |
8 | 1880155 | Handle |
9 | 5662 | Trigger switch |
| 10 | QS2101 | Front spring cable support |
11 | QEL3010 | Cable assembly 10ft/3m |
QEL3012 | Cable assembly 12ft/3.6m | |
QEL3015 | Cable assembly 15ft/4.5m | |
12 | ES3201 | Back spring cable support |
13 | EH2201 | Back handle |
14 | Q210406 | Screw M4×6 |
15 | EP3001 | Gun plug nut |
16 | BEU2001 | Bernard Euro gun plug |
17 | Q504010 | O-Ring 4×1 |
18 | Q505217 | O-Ring 5.28×1.78 |
