Technical Data
◆Rating: 400A CO2
320A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.6mm
Model | |||
Description | Part No. | ||
GT-BNQ400 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT BNQ400-3 | GT BNDQ400-4 | GT BNQ400-5 | |
GT-BNQ400B Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT BNQ400B-3 | GT BNQ400B-4 | GT BNQ400B-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | N-5818C | Copper nozzle 5/8" |
N-3418C | Copper nozzle 3/4" | |
N-5818B | Brass nozzle 3/8" | |
N-3418B | Copper nozzle 1/2" | |
| C | 4491 | Brass nozzle 3/4" |
4492 | Brass nozzle 9/16" | |
4591 | Copper nozzle 3/4" | |
Contact Tips | ||
Pos. | Part No. | Description |
B | TT-030 | Contact tip 0.030"/0.8mm ECu |
TT-035 | Contact tip 0.035"/0.9mm ECu | |
TT-039 | Contact tip 0.039"/1.0mm ECu | |
TT-045 | Contact tip 0.045"/1.2mm ECu | |
TT-052 | Contact tip 0.052"/1.4mm ECu | |
TT-062 | Contact tip 1/16"/1.6mm ECu | |
D | 7488 | Contact tip 0.030"/0.8mm ECu |
7489 | Contact tip 0.035"/0.9mm ECu | |
7496 | Contact tip 0.039"/1.0mm ECu | |
7490 | Contact tip 0.045"/1.2mm ECu | |
7498 | Contact tip 0.052"/1.4mm ECu | |
7491 | Contact tip 1/16"/1.6mm ECu | |
Liners | ||
Pos. | Part No. | Description |
E | 44215 | Steel liner 0.045"-1/16"/1.2-1.6mm 15ft/4.5m |
44215T | Teflon liner 0.045"-1/16"/1.2-1.6mm 15ft/4.5m | |

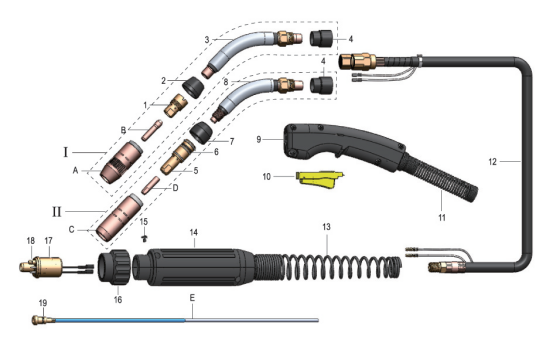

Compontents | ||
Pos. | Part No. | Description |
1 | D-1 | Gas diffuser |
2 | 17SW | Rubber cap |
3 | QT3-45 | Swan neck 45° |
| 4 | 4780 | Insulating nut |
5 | 4335 | Gas diffuser |
6 | Q515617S | O-Ring 15.6×1.78 |
7 | 4423 | Rubber cap |
8 | 4790 | Swan neck 45° |
9 | 1880198 | Handle |
10 | 5662 | Trigger switch |
11 | 2520042 | Front spring cable support |
| 12 | QEL4010 | Cable assembly 10ft/3m |
QEL4012 | Cable assembly 12ft/3.6m | |
QEL4015 | Cable assembly 15ft/4.5m | |
| 13 | HDS0202 | Back spring cable support |
14 | HDH0202 | Back handle |
15 | Q210406 | Screw M4×6 |
16 | EP3001 | Gun plug nut |
17 | BEU2001 | Bernard Euro gun plug |
18 | Q504010 | O-Ring 4×1 |
19 | Q505217 | O-Ring 5.28×1.78 |
