Technical Data
◆Rating: 200A CO2
150A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.2mm
Model | |||
Description | Part No. | ||

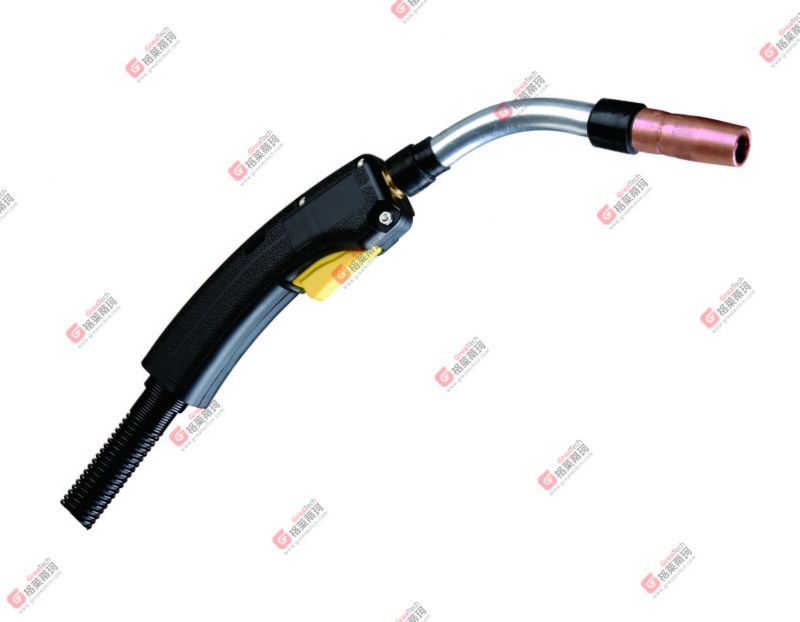

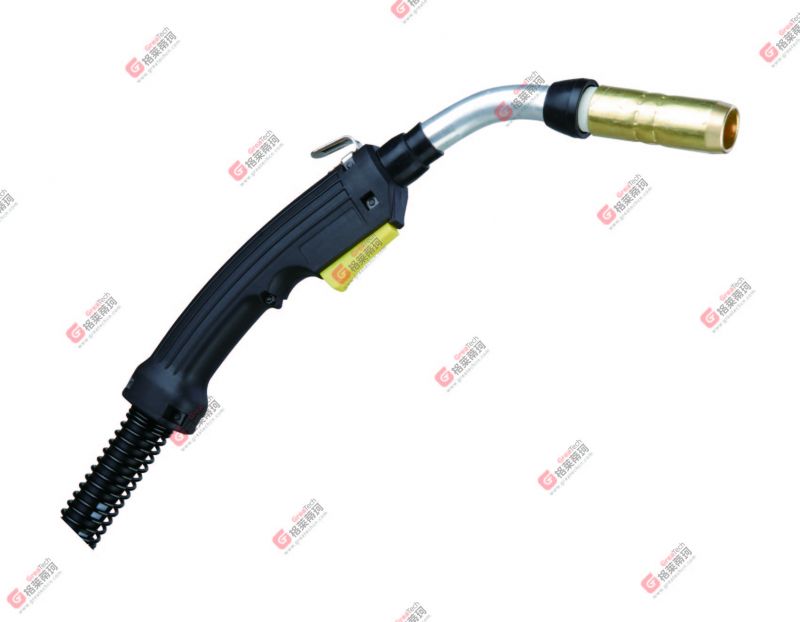

GT-BND200 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT BND200-3 | GT BND200-4 | GT BND200-5 | |

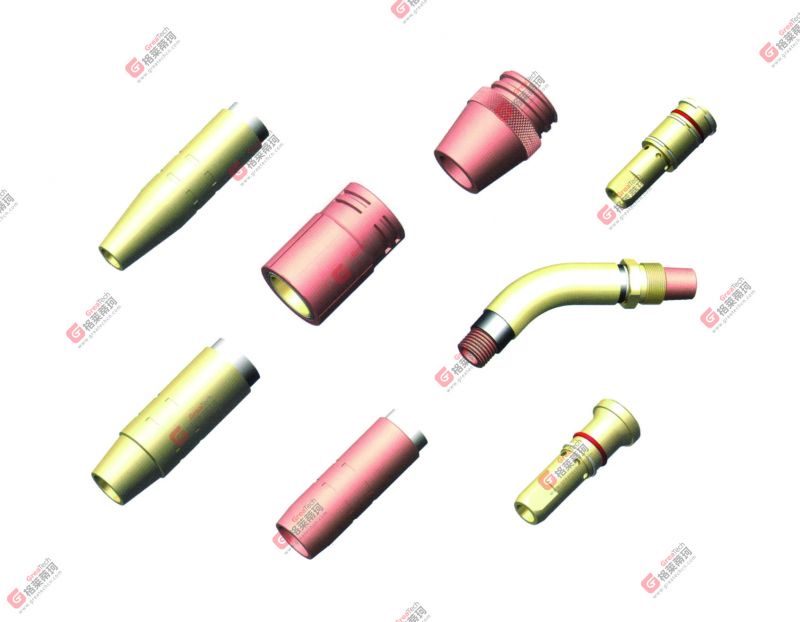

Nozzles | ||
Pos. | Part No. | Description |
A | 4391 | Brass nozzle 5/8" |
4392 | Brass nozzle 1/2" | |
4393 | Copper nozzle 5/8" | |
4394 | Copper nozzle 1/2" | |
Contact Tips | ||
Pos. | Part No. | Description |
B | 7488 | Contact tip 0.030"/0.8mm ECu |
7489 | Contact tip 0.035"/0.9mm ECu | |
7496 | Contact tip 0.040"/1.0mm ECu | |
7490 | Contact tip 0.045"/1.2mm ECu | |
Liners | ||
Pos. | Part No. | Description |
C | 43110 | Steel liner 0.035"-0.045"/0.9-1.2mm 10ft/3m |
43115 | Steel liner 0.035"-0.045"/0.9-1.2mm 15ft/5m | |
43110T | Teflon liner 0.035"-0.045"/0.9-1.2mm 10ft/3m | |
43115T | Teflon liner 0.035"-0.045"/0.9-1.2mm 15ft/5m | |
Compontents | ||
Pos. | Part No. | Description |
1 | 4335 | Gas diffuser |
2 | Q1401413 | Circlip for 4335 |
3 | Q512518S | O-Ring 12.5×1.8 |
| 4 | 4323 | Rubber cap |
5 | 4786 | Swan neck |
6 | 4780 | Insulating nut |
7 | EG0002 | Hanger hook |
8 | BEJ2005 | Trigger switch |
9 | BEH2101 | Handle |
| 10 | HS2101 | Front spring cable support |
11 | BEL2010 | Cable assembly 10ft/3m |
BEL2012 | Cable assembly 12ft/3.6m | |
BEL2015 | Cable assembly 15ft/4.5m | |
12 | ES2201 | Back spring cable support |
13 | EH2201 | Back handle |
14 | EH2211 | Screw M4×6 |
15 | EP3001 | Gun plug nut |
16 | BEU2001 | Bernard Euro gun plug |
17 | Q504010 | O-Ring 4×1 |
18 | Q505217 | O-Ring 5.28×1.78 |
