Technical Data
◆Rating: 400A CO2
320A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.6mm
Model | |||
Description | Part No. | ||
GT-BND400 Welding Torch, Euro Fitting | 3m | 4m | 5m |
GT BND400-3 | GT BND400-4 | GT BND400-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | 4491 | Brass nozzle 3/4" |
4492 | Brass nozzle 9/16" | |
4591 | Copper nozzle 3/4" | |
Contact Tips | ||
Pos. | Part No. | Description |
B | 7488 | Contact tip 0.030"/0.8mm ECu |
7489 | Contact tip 0.035"/0.9mm ECu | |
7496 | Contact tip 0.040"/1.0mm ECu | |
7490 | Contact tip 0.045"/1.2mm ECu | |
| 7498 | Contact tip 0.052"/1.4mm ECu | |
7491 | Contact tip 1/16"/1.6mm ECu | |
Liners | ||
Pos. | Part No. | Description |
C | 44210 | Steel liner 0.045"-1/16"/1.2-1.6mm 10ft/3m |
44215 | Steel liner 0.045"-1/165"/1.2-1.6mm 15ft/4.5m | |
44210T | Teflon liner 0.045"-1/16"/1.2-1.6mm 10ft/3m | |
44215T | Teflon liner 0.045"-1/165"/1.2-1.6mm 15ft/4.5m | |

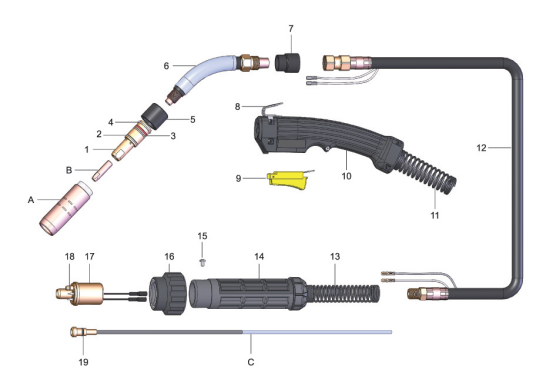

Compontents | ||
Pos. | Part No. | Description |
1 | 4335 | Gas diffuser |
2 | Q1416715 | Circlip for 4335 |
3 | Q515617S | O-Ring 15.6×1.78 |
| 4 | Q1217516 | Shap ring for 4435 |
5 | 4423 | Rubber cap |
6 | 4790 | Swan neck |
7 | 4780 | Insulating nut |
8 | EG0002 | Hanger hook |
9 | BEJ2005 | Trigger switch |
| 10 | BEH2101 | Handle |
11 | KS3101 | Front spring cable support |
| 12 | BEL4010 | Cable assembly 10ft/3m |
BEL4012 | Cable assembly 12ft/3.6m | |
BEL4015 | Cable assembly 15ft/4.5m | |
13 | ES3201 | Back spring cable support |
14 | EH2201 | Back handle |
15 | EH2211 | Screw M4×6 |
16 | EP3001 | Gun plug nut |
17 | BEU2001 | Bernard Euro gun plug |
18 | Q504010 | O-Ring 4×1 |
19 | Q505217 | O-Ring 5.28×1.78 |
