JSCUT-400 is high quality water cooling plasma power sources for CNC cutting which have high pierce capability and can achieve high verticality. It adopts the full-bridge soft-switching technology, current can be adjustable between 35A-400A steplessly, it can make cutting operation more controllable. It is heavy duty, 100% duty circle, and built in multi protections for over current, over voltage, over air-pressure, over temperature etc, allows you to work 24 hours continuously.
Technical Parameters
Rated Input Voltage | V | 3x380(50Hz) +/- 10% |
Rated Input Power | KVA | 78 |
Cutting Current | A | 400 |
Duty Circle | - | 100% |
Cutting Thickness | mm | 35 |
Pierce Thickness | mm | 35 |
Quality Cutting | mm | 60 |
Max Cutting | mm | 70 |
Working Gas | - | Air/N2 |
Gas Volume | L/min | 150 |
Working Gas Pressure | MPa | 0.7 |
Cooling Method | - | Water |
Weight of Machine | kg | 150 |
Size of Machine | cm | 83x47x90 |

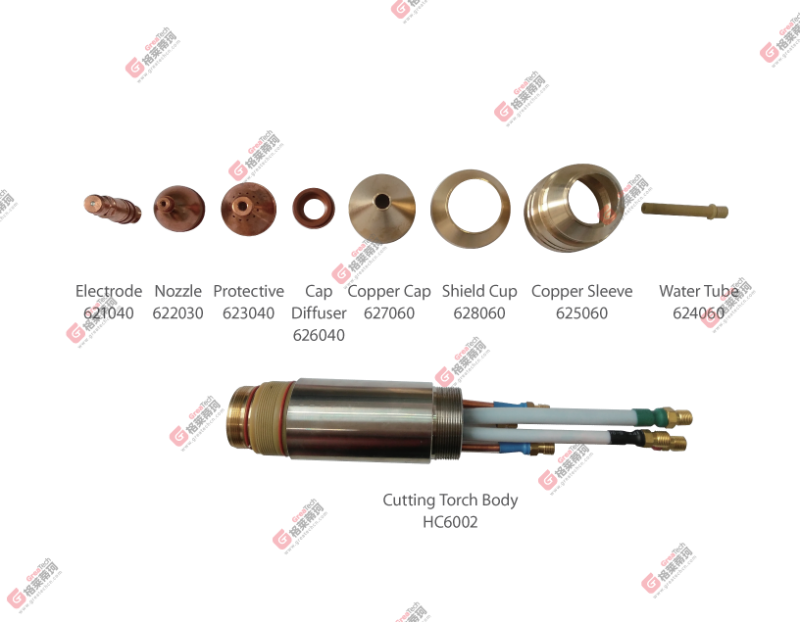

【HC6002 part name and code】
Cutting Method | Current (A) | Electrode | Nozzle | Protective Cap | Water Tube | Copper Sleeve | Gas Diffuser | Copper Cap | Shield Cup |
Dry Cutting | 70-200 200-300 300-400
| 621040 | 622020 622030 622040 | 623040 | 624060 | 625060 | 626040 | 627060 | 628060 |
