JSCUT-130 is high quality air cooling plasma power source for CNC cutting which has high pierce capability and can achieve high verticality. JSCUT-130 adopts the full-bridge soft-switching technology, current can be adjustable between 35A-130A steplessly, it can make cutting operation more controllable It is heavy duty, 100% duty circle, and it has built in multi protections for over current, over voltage, over air-pressure, over temperature etc, allows you to work 24 hours continuously.
Technical Parameters
Rated Input Voltage | V | 3x380(50Hz/60Hz) +/- 10% |
Rated Input Power | KVA | 22 |
Cutting Current | A | 35-130 |
Duty Circle | - | 130A/100% |
Cutting Thickness | mm | According to Material. |
Pierce Thickness | mm | 20 |
Quality Cutting | mm | 30 |
Max. Cutting | mm | 45 |
Working Gas | - | air |
Gas Volume | L/min | 200 |
Working Gas Pressure | MPa | 0.45 |
Cooling Method | - | air |
Weight of Machine | kg | 60 |
Size of Machine | cm | 76x35x63 |

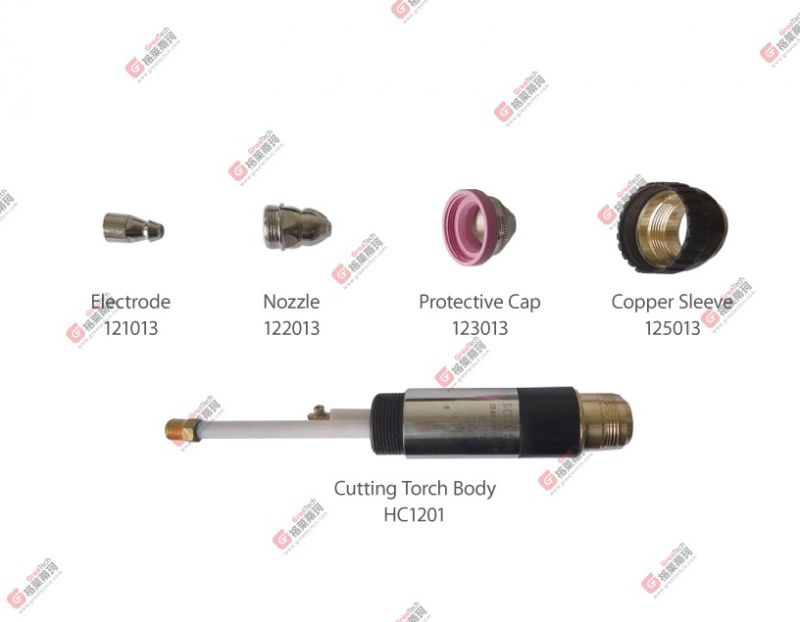

【HC1201 Torch part name and code】
Cutting Method | Current (A) | Electrode | Nozzle | Protective Cap | Copper Sleeve |
Straight Cutting | 35-60 | 121013 | 122006 | 123013 | 125013 |
65-100 | 122010 | ||||
105-130 | 122013 |
