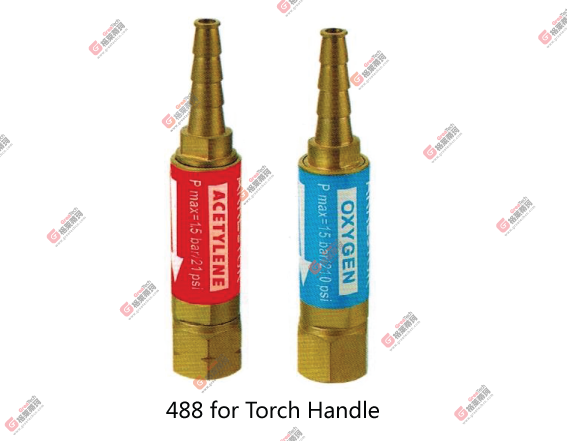

H188 for Torch Handle
Features：
*Filter protect the flashback arreator from dirty particles.
*Non-return vavle.
*Max flow:Oxygen:7000Lt./H Acetylene:1.5Bar Fuel gas:5Bar.
Specifications:
Model | Gas | For | Max. Flow Lt/H | Max. Inlet Pressure(bar) | Inlet | Outlet |
H188-R | OXYGEN | Torch | 7200 | 10 | 9/16”x18 R.H. | 9/16”x18 R.H. |
H188-L | FUEL GAS | 2600 | 1.5 | 9/16”x18 L.H. | 9/16”x18 L.H. | |
H188-RGBB | OXYGEN | Torch | 7200 | 10 | BSP 3/8” R.H. | BSP 3/8” R.H. |
H188-LGB | FUEL GAS | 2600 | 1.5 | BSP 3/8” L.H. | BSP 3/8” L.H. | |
H188-AR | OXYGEN | Torch | 7200 | 10 | 5/8”x18 R.H. | 5/8”x18 R.H. |
H188-AL | FUEL GAS | 2600 | 1.5 | 5/8”x18 L.H. | 5/8”x18 L.H. | |
H188-RA | OXYGEN | Torch | 7000 | 10 | BSP 1/4” R.H. | BSP 1/4” R.H. |
H188-LA | FUEL GAS | 2600 | 1.5 | BSP 1/4” L.H. | BSP 1/4” L.H. |
