288/B288/688 Flashback Arrestor
Features：
*Flame arrestor.Non-return vavle.
*Filter protect the flashback arrestor from dirty particles.
*Prevent the transmission of flame of backfire or flashbak upstream from the blow-pipe passing through the flashback arrestor into the equipment connected,
Max flow:Oxygen :7000Lt./H Acetylene:2600 Lt./H
Specifications:
Model | Gas | For | Max. Flow Lt/H | Max. Inlet Pressure(bar) | Inlet | Outlet |
288-R | OXYGEN | Regulator | 7200 | 10 | 9/16”x18 R.H. | 9/16”x18 R.H. |
288-L | FUEL GAS | 2600 | 1.5 | 9/16”x18 L.H. | 9/16”x18 L.H. | |

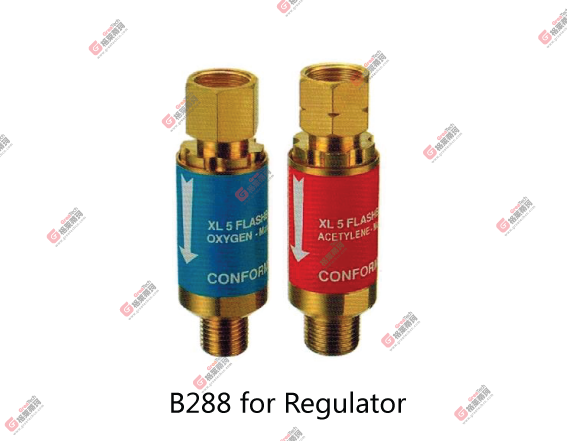

B288-RGBB | OXYGEN | Regulator | 7200 | 10 | BSP 3/8” R.H. | BSP 3/8” R.H. |
B288-LGB | FUEL GAS | 2600 | 1.5 | BSP 3/8” L.H. | BSP 3/8” L.H. | |

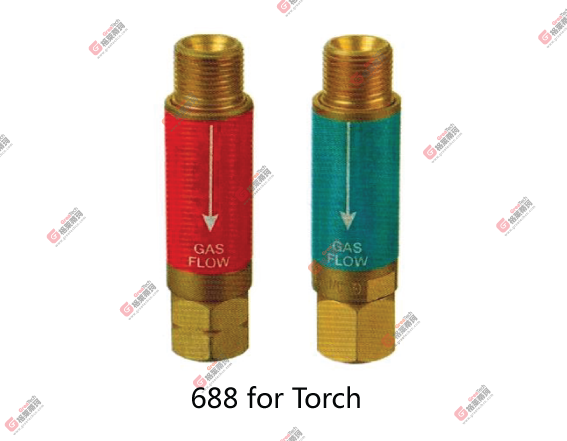

688-R | OXYGEN | Regulator | 7200 | 10 | BSP 3/8” R.H. | BSP 3/8” R.H. |
688-L | FUEL GAS | 2600 | 1.5 | BSP 3/8” L.H. | BSP 3/8” L.H. |
