Technical Data
◆Rating: 350A CO2
300A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 1.0～1.4mm
Model | |||
Description | Part No. | ||
GT-O350A Welding Torch, OTC Fitting | 3m | 4m | 5m |
GT O350A-3 | GT O350A-4 | GT O350A-5 | |
Nozzles | ||
Pos. | Part No. | Description |
A | KA3166 | Cylindrical nozzle 16mm |
Contact Tips | ||
Pos. | Part No. | Description |
B | KB2208 | Contact tip M6 0.8 ECu |
KB2210 | Contact tip M6 1.0 ECu | |
KB2212 | Contact tip M6 1.2 ECu | |
KB2208L | Contact tip M6 0.8 CuCrZr | |
KB2210L | Contact tip M6 1.0 CuCrZr | |
KB2212L | Contact tip M6 1.2 CuCrZr | |
Liners | ||
Pos. | Part No. | Description |
C | DR3212-3 | Steel Liner 1.0-1.2mm 3M |
DR5216-3 | Steel Liner 1.2-1.6mm 3M | |
DR3312-3 | Teflon Liner 1.0-1.2mm 3M | |

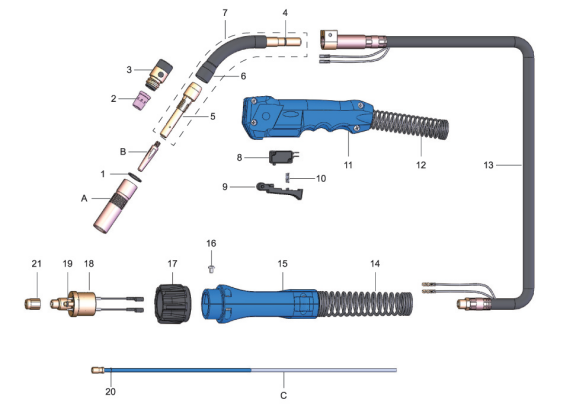

Compontents | ||
Pos. | Part No. | Description |
1 | Q1115 | Gasket |
2 | KD3001 | Gas diffuser |
3 | KE3001 | Insulator |
DE3001 | Insulator | |
4 | Q508015S | O-Ring 8×1.5 |
5 | DF3211 | Tip holder |
6 | DF3212 | Conductor tube 55° |
7 | DF3255 | Swan neck 55° |
8 | Q711 | Switch,OMRON |
Q721 | Switch | |
9 | DJ3001 | Trigger |
10 | Q60512 | Trigger spring |
11 | DH3102 | Handle |
12 | DS3101 | Front spring cable support |
13 | DL3030 | Cable assembly 3m |
14 | DS3201 | Back spring cable support |
15 | DH3202 | Back handle |
16 | EH2211 | Screw M4×6 |
17 | DP3001 | Gun plug nut |
18 | DU3001 | OTC Gun plug |
19 | Q531518 | O-Ring 3.15×1.8 |
20 | Q504018 | O-Ring 4×1.8 |
21 | DU3013 | Nut |
