Technical Data
◆Rating: 200A CO2
180A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.8～1.2mm
Model | |||
Description | Part No. | ||

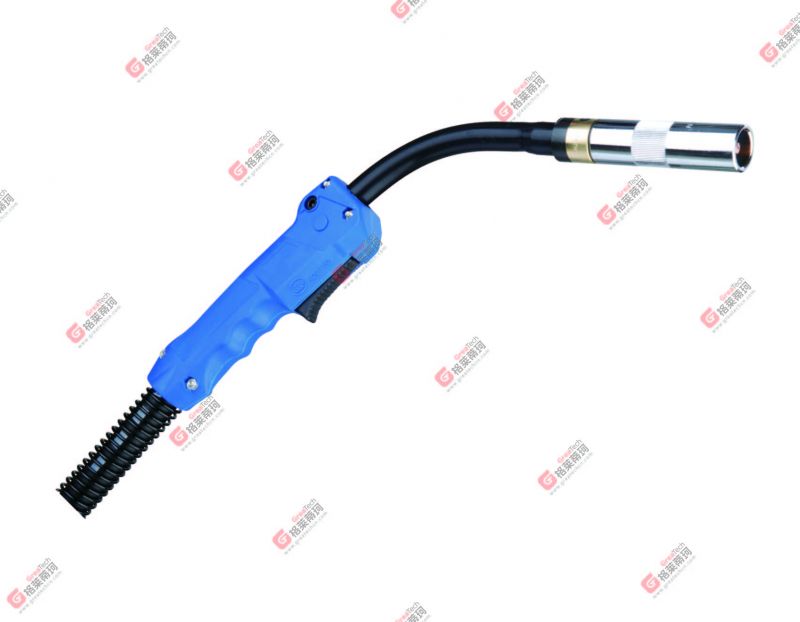

GT-O200A Welding Torch, OTC Fitting | 3m | 4m | 5m |
GT O200A-3 | GT O200A-4 | GT O200A-5 | |

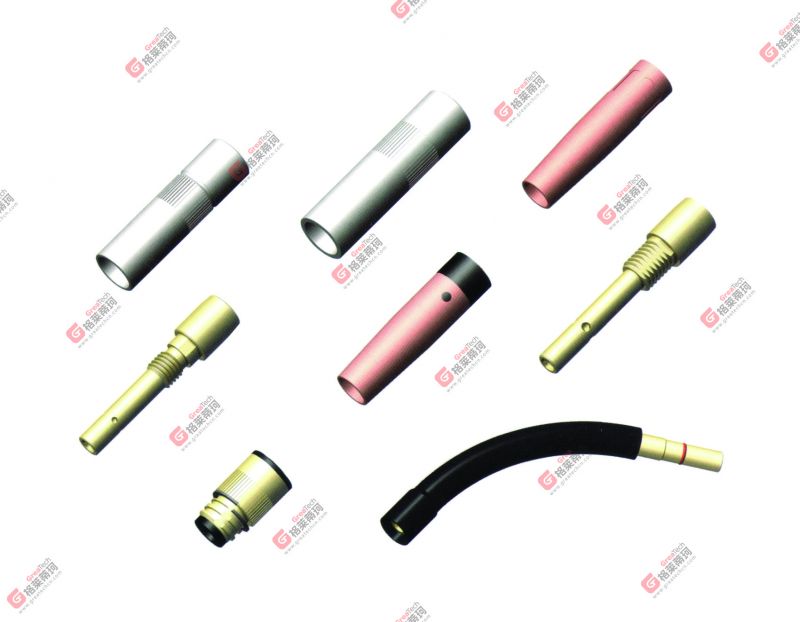

Nozzles | ||
Pos. | Part No. | Description |
A | KA2213 | Conical nozzle 13mm |
Contact Tips | ||
Pos. | Part No. | Description |
B | KB2208 | Contact tip M6 0.8 ECu |
KB2210 | Contact tip M6 1.0 ECu | |
KB2212 | Contact tip M6 1.2 ECu | |
KB2208L | Contact tip M6 0.8 CuCrZr | |
KB2210L | Contact tip M6 1.0 CuCrZr | |
KB2212L | Contact tip M6 1.2 CuCrZr | |
Liners | ||
Pos. | Part No. | Description |
C | DR2210-3 | Steel Liner 0.8-1.0mm 3M |
DR2310-3 | Teflon Liner 0.8-1.0mm 3M | |

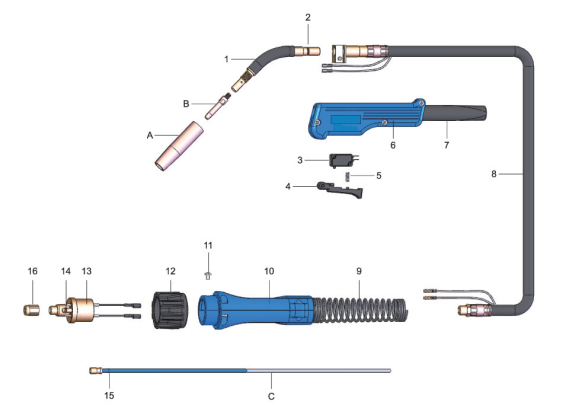

Compontents | ||
Pos. | Part No. | Description |
1 | KF2245 | Swan Neck 45° bent |
KF21180 | Swan Neck 180° | |
2 | Q508015S | O-Ring 8×1.5 |
3 | Q724 | Switch |
4 | DJ2001 | Trigger |
5 | Q60512 | Trigger spring |
6 | DH2102 | Handle |
7 | DS2101 | Front cable support |
8 | DL2030 | Cable assembly 3m |
9 | DS3201 | Back spring cable support |
10 | DH3202 | Back handle |
11 | EH2211 | Screw M4×8 |
12 | DP3001 | Gun plug nut |
13 | DU3001 | OTC Gun plug |
14 | Q531518 | O-Ring 3.15×1.8 |
15 | Q504018 | O-Ring 4×1.8 |
16 | DU3013 | Nut |
