We provide high quality Gantry CNC Cutting machines with multi-options. High quality comes from our production process and the components we use. The main features are as follow:
1. The Gantry Beam has been heat treated to eliminate the internal stress so as to reduce the deformation and make it long life.
2. Drive gear and rack have realized elastic meshing transmission without gap so as to ensure the precision of movement.
3. Double side drivers ensure the move stability.
4. Panasonic Servo Motor and Driver are used.
5. Germany NEUGART Planetary Reducer is used.

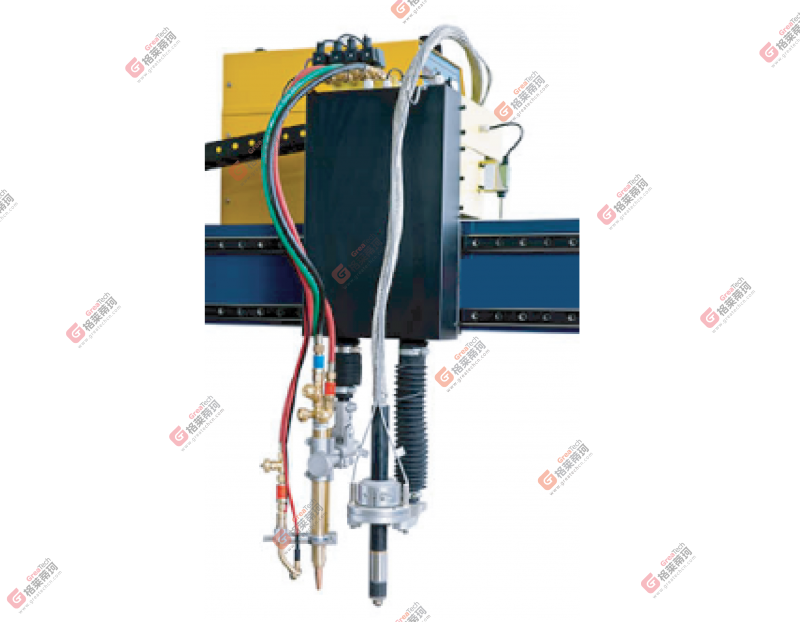

Multi-options means you can choose Flame only, one flame, two flame or multi-flame, or Plasma only, one Plasma, two plasma, or Multi-plasma, or Flame & Plasma, according to your requirement. You also can choose the control system,
Hypertherm or Star Fire, and choose the Plasma Cutting Power Source, Hypertherm or Metro.
Technical Parameter | |||
Type | Unit | ZYNC-3000 | ZYNC-4000 |

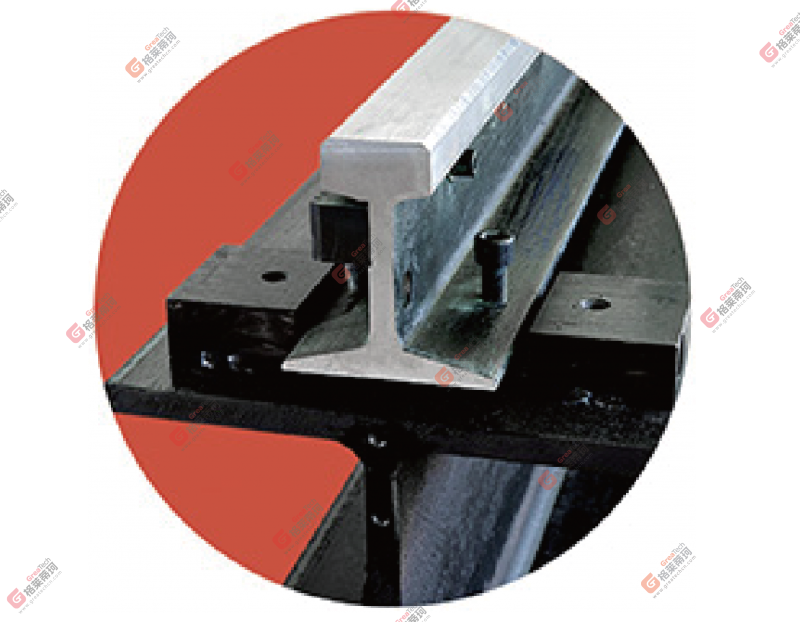

Rail space | mm | 3000 | 4000 |
Rail length | mm | 12000 | 12000 |
Effective cutting width | mm | 2200 | 3200 |
Effective cutting length | mm | 10000 | 10000 |
Quantity of flame cutting torch | set | 1 | 1 |
Flame cutting thickness | mm | 5-200 | 5-200 |
Flame cutting speed | mm/min | 5-750 | 5-750 |
Complete running speed | mm/min | 0-12000 | 0-12000 |
Driving form | Double Side | Double Side | |
