◆Features
1. Steel square tube welded beam to ensure solid and stable; Precision process to prevent the deformation. Steel square tube machine support, solid and easy to adjust.

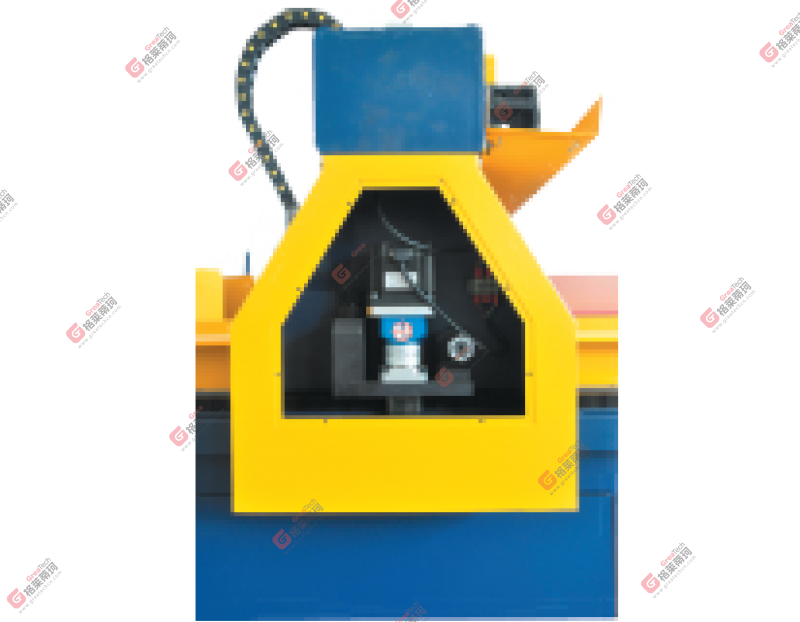

2. Transmit is through gearing rack, using the precision planetary reducer made in Taiwan. The cylinder rail is also made in Taiwan.
3. Control system is made by Sino-USA joint venture, 7’’ LCD monitor, English operation manual available. High precision Step motor and diver system ensure the machine’s stability during high speed running.
Technical Parameter | |||
Type | ZYNC-TS3015 | ZYNC-TS2513 | ZYNC-TS4015 |
Machine Size | 3900x2100x1600mm | 3400x1900x1600mm | 4900x2100x1600mm |
Cutting Scope | 3000x1500mm | 2500x1300mm | 4000x1500mm |
Cutting Method | Plasma Cutting | ||
Effective Lift Distance | 120mm | ||
Maximum Idle Speed | 18000mm/min | ||
Cutting Speed | 15000mm/min | ||
Operation Precision | <0.1mm | ||
THC Controlling | THC control system | ||
Maximum Cutting Thickness | According to Power Source.(Suggest to thickness less than 20mm) | ||
Cutting Gas | Air | ||
Gas Pressure | 0.4-0.8Mpa | ||
Machine Input Power Supply | 220V 50HZ | ||
Nest Software | FASTCAM | ||
