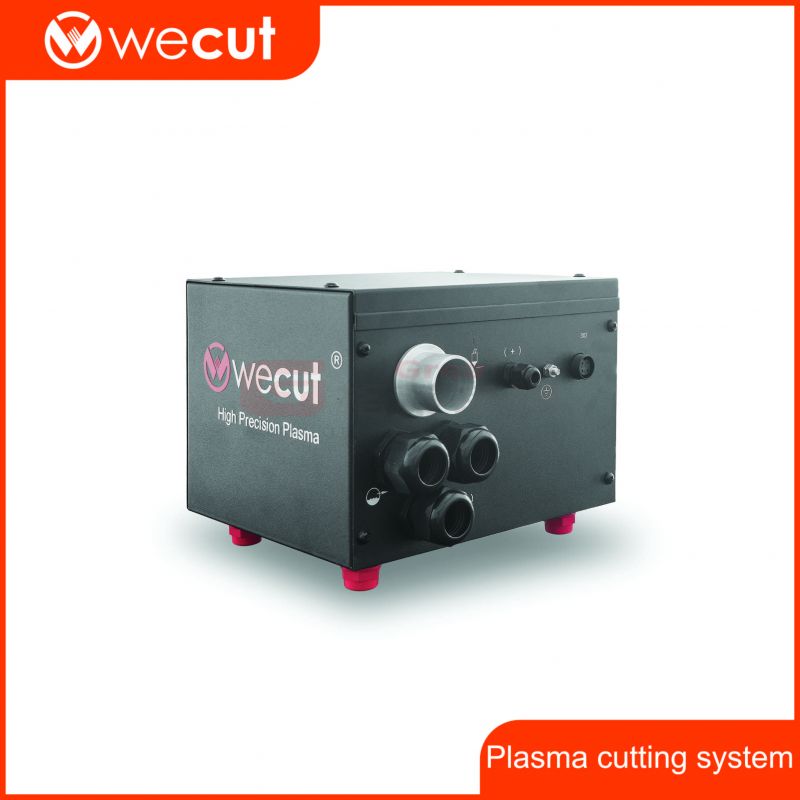

Features:
◎Can use 100% pure oxygen to cut mild steel to achieve max performance and productivity.
◎When mild steel thickness is within 20mm, slag free cutting can be achieved, and the back
of the plate is smooth, no need further grinding.
◎The cutting perpendicularity can be ≤ 1.5-3 degree within the lifetime of the consumables.
◎The consumables can maintain a long service life, and the consistency in the life is very good.
◎Good perpendicularity, smooth and white cutting surface, less slag hanging, easy to clean, fast cutting speed, long service life of consumables.
Technical parameters:
CUT-XD Fine Cutting Plasma Power Supply | |
Model | CUT400XD |
Type | IGBT |
Rated input voltage | three phase AC380 ±10% |
Rated input capacity | 89KVA |
Rated output current | 400A |
Rated output voltage | 200V |
Duty cycle 40℃ | 100% |
No-load voltage | 314V |
Current adjustment range | 45-400A |
Efficiency (%) | 93 |
IP code | IP21S |
Cooling method | Forced air cooling |
Net weight (Kgs) | 215 |
Dimension of machine (mm) | 830×720×1250 |
CUT400XD Plasma cutting performance
Cutting performance | Model | |
CUT400XD | ||
Mild steel | Max quality cutting/mm | 40 |
Max production piercing/mm | 45 | |
Max piercing capability/mm | 50 | |
Max production edge cutting/mm | 60 | |
Max edge cutting capability/mm | 80 | |
Stainless steel | Max production piercing/mm | 35 |
Max production edge cutting/mm | 60 | |
Cut Surface Squareness | ≤1.5-3° | |
Gas supply option | O2, Air, N2 | |
Max current cutting speed (mm/min) | Mild steel:( 20mm) | 2800 |
Mild steel: (32mm) | 1500 | |
CUT400XD Plasma cutting parameters(Mild steel 400A)

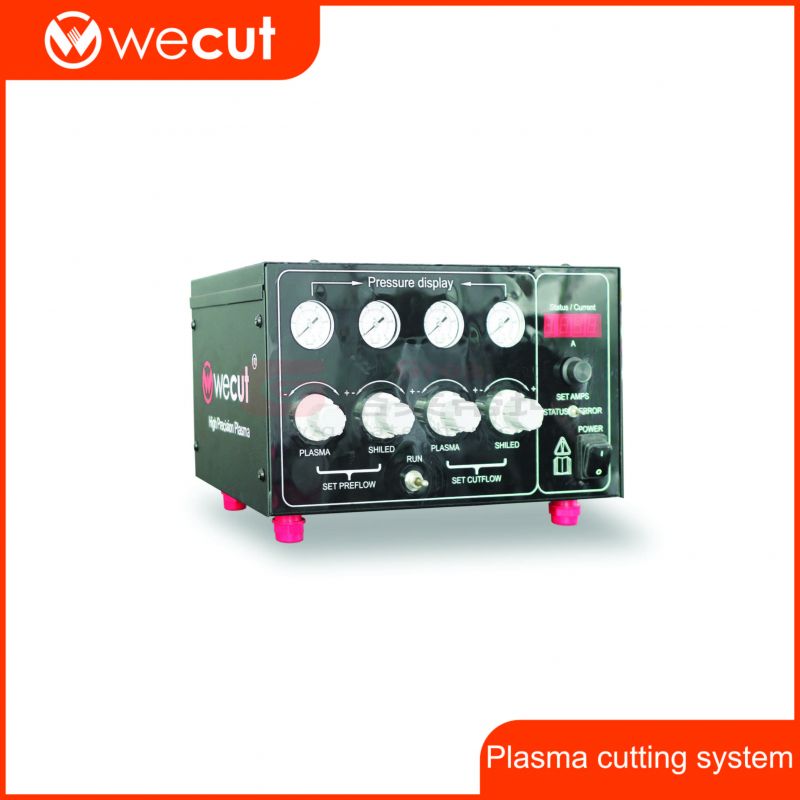

Select gas | Set reservation | Set cutting flow | Material thickness | Arc voltage | Torch height | Cutting speed | Piercing height | Piercing delay | |||
Plasma gas | Shield gas | Plasma gas | Shield gas | Plasma gas | Shield gas | mm | V | mm | mm/min | mm | S |
oxygen | air | 22 | 82 | 55 | 82 | 12 | 139 | 3.6 | 4430 | 7.2 | 0.4 |
15 | 142 | 3950 | 0.5 | ||||||||
20 | 146 | 2805 | 0.7 | ||||||||
22 | 148 | 3.8 | 2540 | 7.6 | 0.8 | ||||||
25 | 150 | 4.0 | 2210 | 8.0 | 0.9 | ||||||
30 | 153 | 4.6 | 1790 | 9.2 | 1.1 | ||||||
40 | 158 | 1160 | 11.5 | 1.9 | |||||||
50 | 167 | 5.3 | 795 | 19.1 | 5.2 | ||||||
60 | 173 | 6.4 | 580 | Edge arcing cutting | |||||||
70 | 183 | 380 | |||||||||
80 | 197 | 7.9 | 180 | ||||||||
