SC600(SC800/SC1200/SC1800) Short Circle Stud Welding
Gas protective, it is a special welding model that it can either take place of the stored energy welding machine for the welding of thin steel sheet, but also can take place of long circle stud welding function. It can either save the ceramic ferrules, but also can reduce the welding deformation. Suitable for welding stud dia. 3mm to dia. 16mm, working time 20ms to 70ms and 60-450ms.

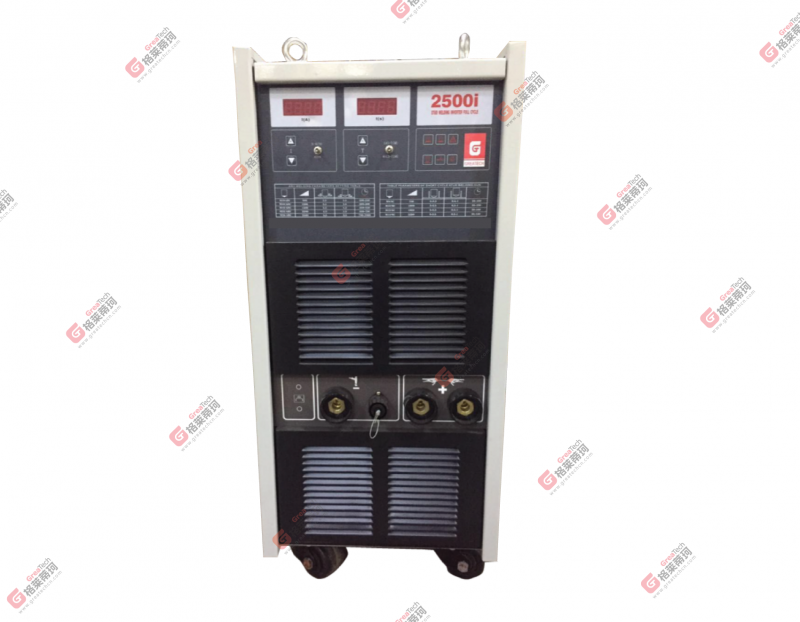

Technical Parameter | ||||
Type | SC600 | SC800 | SC1200 | SC1800 |
Input Voltage | 3phase 380VAC±10% | 3phase 380VAC±10% | 3phase 380VAC±10% | 3phase 380VAC±10% |
Output Voltage | 45-90V | 45-90V | 45-90V | 45-90V |
Rate Current | 36A | 36A | 63A | 90A |
Stud Welding Scope | 3-12 | 3-12 | 5-18 | 5-18 |
Welding Speed | 20-70ms/ 60-450ms | 20-70ms/ 60-450ms | 20-70ms/ 60-450ms | 20-70ms/ 60-450ms |
Cooling Model | Fan | Fan | Fan | Fan |
Weight | 70KG | 105KG | 138KG | 163KG |
Frequency | 50-60HZ | 50-60HZ | 50-60HZ | 50-60HZ |
Welding Speed | 10-30 pc/minute | 10-30 pc/minute | 5-30 pc/minute | 5-30 pc/minute |
Output Current | 160A-800A (5 Step) | 160A-800A (5 Step) | 2000A-1200A (5 Step) | 300A-1800A
|
Protective Grade | IP22 | IP22 | IP22 | IP22 |
Transformer Protective Type | H | H | H | H |
Max. Power | 30KVA | 40KVA | 60KVA | 90KVA |
Machine Size（mm） | 320×320×480 | 590×415×510 | 671×482×581 | 720×530×600 |

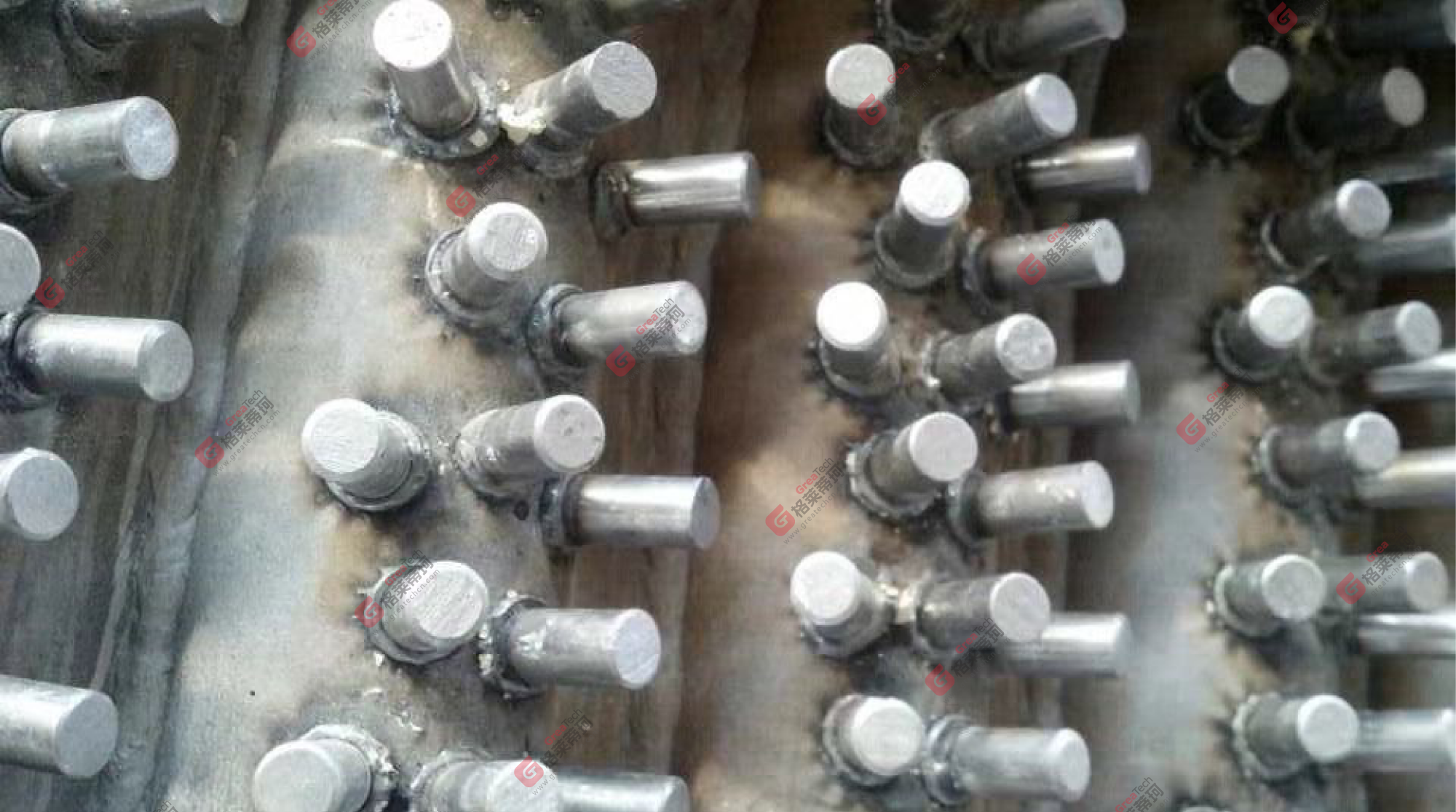

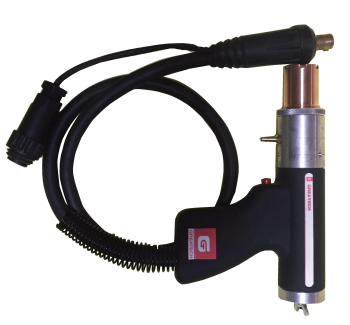

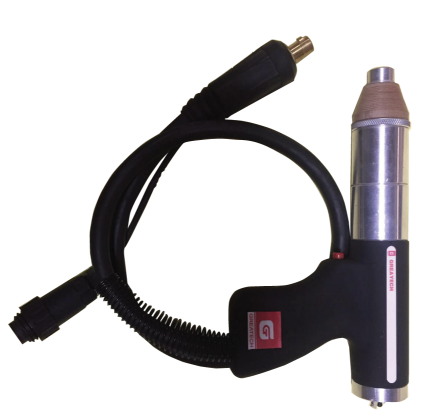

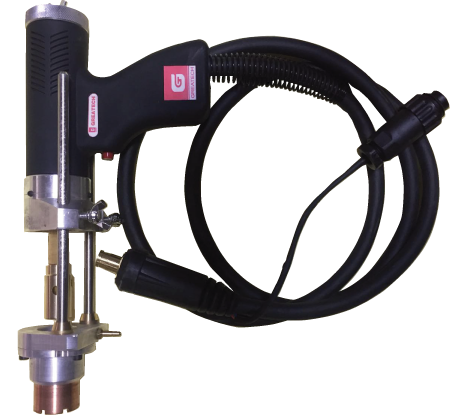

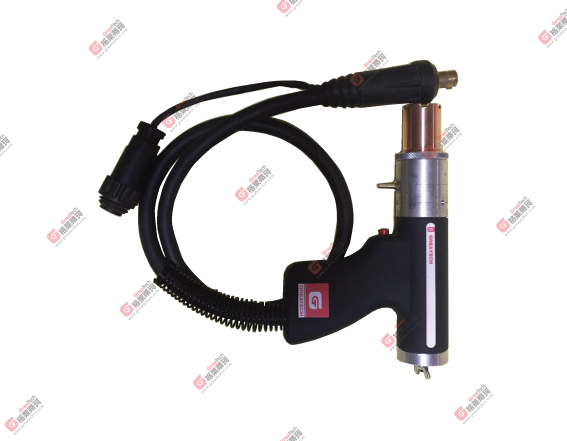

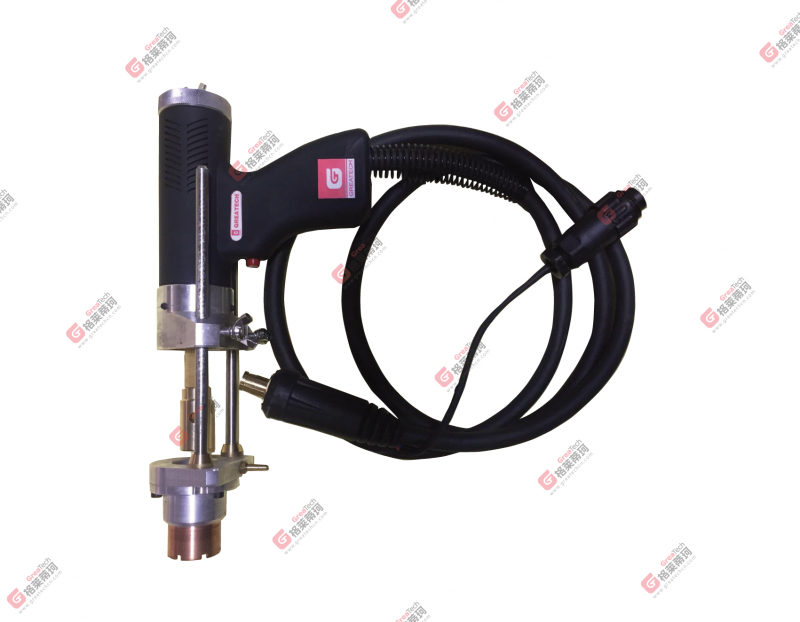

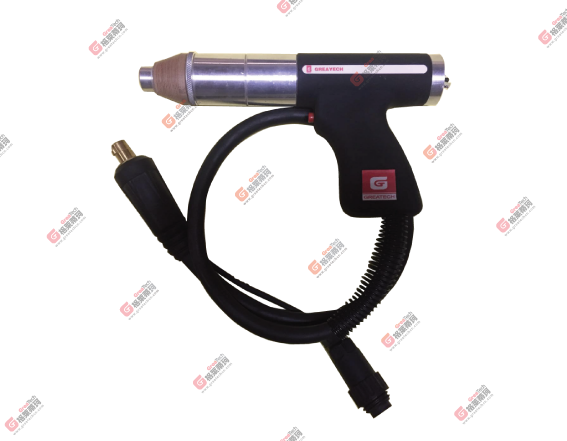

Stud Welding Torches
Technical Parameter | Picture | |
Type | GTLH-III(A) |
|
Welding Mode | Long period mode of ceramic ring protection | |
Stud Welding Scope (mm) | φ4-φ16 | |
Stud Welding Length (mm) | 15-80 | |
Lifting Height | 4mm | |
Coil Voltage | Standard:75V-90V Optional:40V-60V | |
Welding Cable(m/mm2) | 5m 35mm2 | |
Welding Cable Interface | European Style 35-50mm2 | |
Control Line Interface | C16-1 4cores | |
Torch Weight (Without Cable) | 0.8kg | |
Technical Parameter | Picture | |
Type | GTLH-III(B) |
|
Welding Mode | Short Circle Mode | |
Stud Welding Scope (mm) | Φ3-φ12 | |
Stud Welding Length (mm) | 8-80 | |
Lifting Height | 4mm | |
Coil Voltage | Standard:75V-90V Optional:40V-60V | |
Welding Cable(m/mm2) | 5m 35mm2 | |
Welding Cable Interface | European Style 35-50mm2 | |
Control Line Interface | C16-1 4cores | |
Torch Weight (Without Cable) | 1.1kg | |
Technical Parameter | Picture | |
Type | GTLH-III(B) |
|
Welding Mode | Short Circle Mode | |
Stud Welding Scope (mm) | Φ3-φ12 | |
Stud Welding Length (mm) | 8-80 | |
Lifting Height | 4mm | |
Coil Voltage | Standard:75V-90V Optional:40V-60V | |
Welding Cable(m/mm2) | 5m 35mm2 | |
Welding Cable Interface | European Style 35-50mm2 | |
Control Line Interface | C16-1 4cores | |
Torch Weight (Without Cable) | 1.1kg | |
