Technical Data
◆Duty Cycle: 150 Amps 60%
◆Duty Cycle: 110 Amps 100%
◆Air Pressure: 4.5-5.5 bar
◆Standard Length: 5m
Model | |
Part No. | Description |
CB 150 Complete Torch | |
CB 150 Torch Head With Handle | |

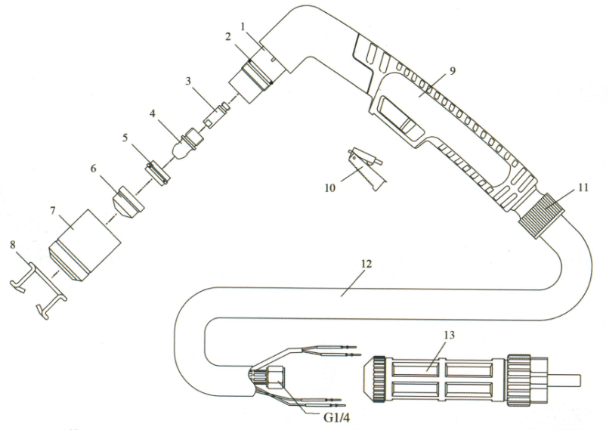

Compontents | ||
Pos. | Part No. | Description |
1 | PF0080 | CB 150 Torch head |
| 2 | EA0131 | O-Ring |
3 | FH0213 | Gas cooling tube |
| 4 | PR0034 | Electrode |
5 | PE0009 | Swirl ring |
6 | PD0026-11 | Nozzle 1.1mm |
| PD0026-13 | Nozzle 1.3mm | |
PD0026-16 | Nozzle 1.6mm | |
PD0026-18 | Nozzle 1.8mm | |
| 7 | PC0002 | Shield |
8 | CV0011 | Space spring |
| 9 | TP0110 | Handle |
| 10 | BX0020 | Switch |
| 11 | BW0311 | Uniwersal coupling |
| 12 | PH0174 | Cable assembly |
| 13 | FY0023 | Central adaptor |
Wear Parts | |||
Part No. | Description | ||
Electrode | Pr0034 | Electrode |
|
Part No. | Description | ||
Swirl ring | PE0009 | Swirl ring | |
Part No. | Description | ||
Nozzle | PD0026-11 | Nozzle 1.1mm |
|
PD0026-13 | Nozzle 1.3mm | ||
PD0026-16 | Nozzle 1.6mm | ||
PD0026-18 | Nozzle 1.8mm | ||
Part No. | Description | ||
Shield | PC0002 | Shield |
|
Part No. | Description | ||
Gas cooling tube | FH0213 | Gas cooling tube | |
