Technical Data
◆Duty Cycle: 30Amps 60%
◆Air Pressure: 4.5-5.5 bar
◆Standard Length: 5m
Model | |
Part No. | Description |
PT-31 Complete Torch | |
PT-31 Torch Head With Handle | |

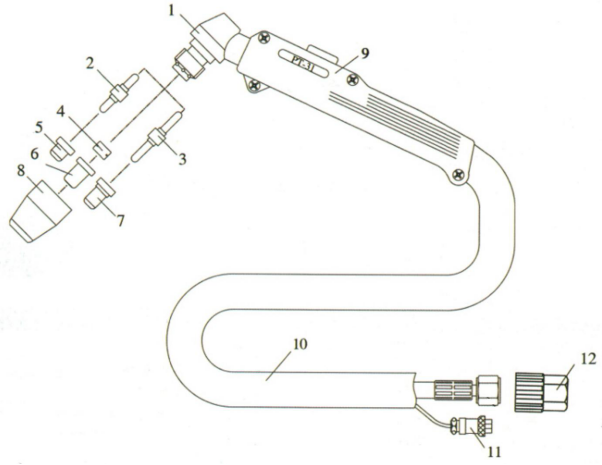

Compontents | ||
Pos. | Part No. | Description |
1 | 20072 | PT-31 Hand torch head |
| 2 | 18205 | Electrode(Hf) |
Electrode(Zr) | ||
| 3 | 19683 | Extended electrode(Hf) |
Extended electrode(Zr) | ||
4 | Swirl ring(DMC) | |
| 18785 | Swirl ring(Ceramic) | |
| 5 | 18866 | Nozzle |
| 6 | 19682 | Extended nozzle |
| 7 | 20860 | Extended nozzle |
8 | 18204 | Shield |
| 9 | Handle | |
| 10 | Cable assembly | |
| 11 | Panasonic 2-Pin plug | |
Wear Parts | |||
Part No. | Description | ||
Nozzle | 18866 |
| |
Part No. | Description | ||
Electrode | 18205 | Electrode(Hf) | |
Electrode(Zr) | |||
Part No. | Description | ||
Nozzle | 19682 | Extended nozzle |
|
Part No. | Description | ||
Nozzle | 20860 | Extended nozzle |
|
Part No. | Description | ||
Electrode | 19683 | Extended electrode(Hf) |
|
Extended electrode(Zr) | |||
| Part No. | Description | |
Swirl ring | Swirl ring(DMC) |
| |
Part No. | Description | ||
Swirl ring | 18785 | Swirl ring(Ceramic) |
|
Part No. | Description | ||
Shield | 18204 |
| |
