Technical Data
◆Rating: 350A CO2
300A Mixed Gases
◆Duty Cycle: 60%
◆Wire Size: 0.9～1.2mm
Model:
Description | Part No. | ||
GT-P350A Welding Torch, Panasonic Fitting | 3m | 4m | 5m |
GT P350A-3 | GT P350A-4 | GT P350A-5 | |

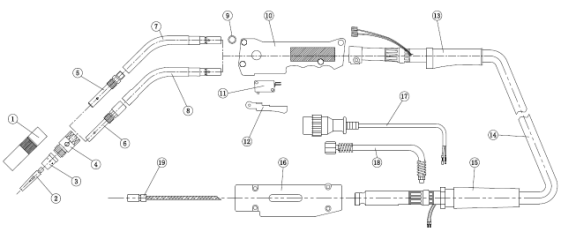

Compontents
Pos. | Part No. | Description |
1 | Gas nozzle | |
2 | Contact tip | |

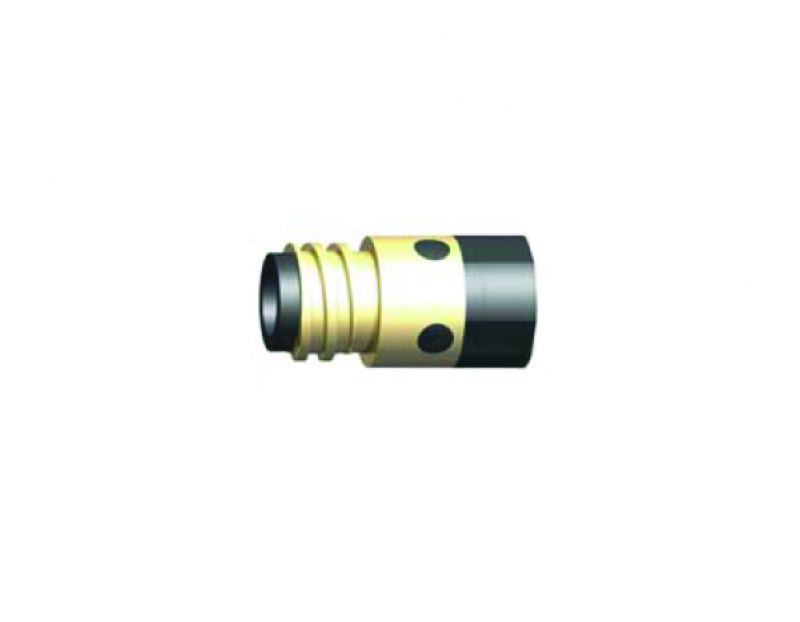

3 | P350GDF | Gas diffuser |
4 | PIT00002 | Insulator |

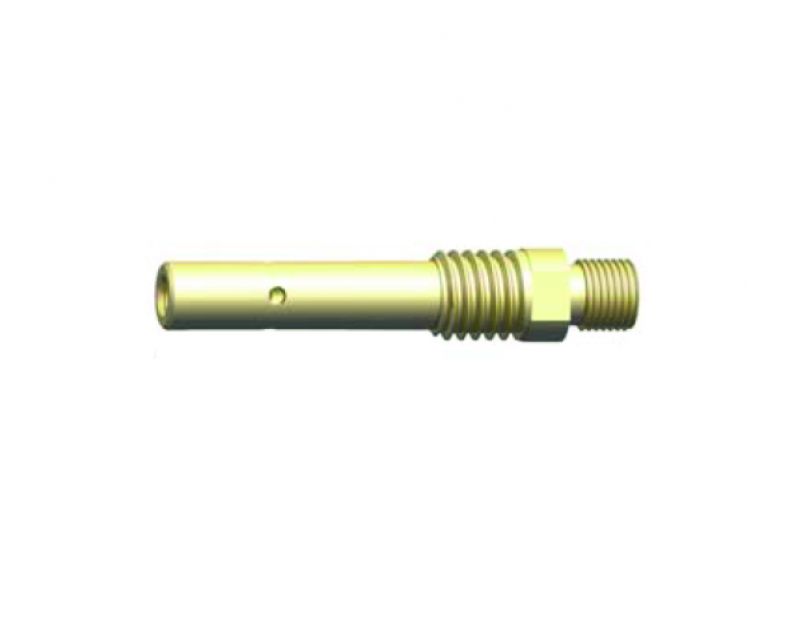

5 | PTH3501 | Contact tip holder |
6 | PTH3502 | Contact tip holder |

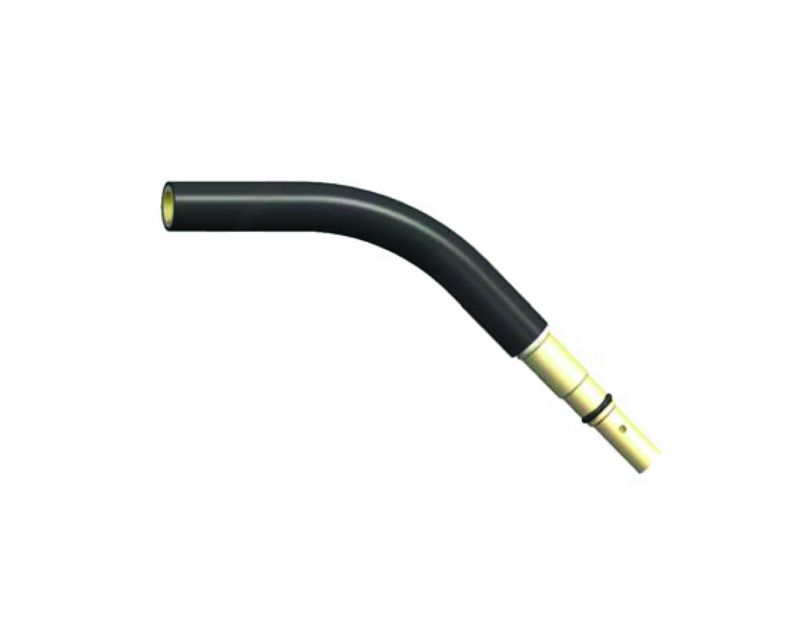

7 | PSNS3501 | Swan neck |
8 | PSNS3502 | Swan neck |
9 | P350GASK | Gasket |
10 | P350HAND | Handle |
11 | P350MCW | Microswitch |
12 | P350SWIT | Trigger |
13 | PFCS3501 | Front cable support |
14 | P33CABLE | Torch cable assembly 3M |
P34CABLE | Torch cable assembly 4M | |
P35CABLE | Torch cable assembly 5M | |
15 | PFCS3502 | Back cable support |
16 | PCA35345 | Cable support machine side |
17 | PCLP3501 | Control lead plug |
18 | P200NUNF | Nut 9/16-18” UNF |
19 | Liner |
